Vacuums - Surface Prep > CFM MAX - HEPA Extractor, 120 Volt

HEPA Pro, Dust Pro Series ~ 10-Gallon HEPA Vac, 440 CFM.

HEPA Dust Extractor
120 Volt, 300 CFM

Cyclone HEPA Dust Extractor

120V 300 CFM No Pre-Filter

Brochure

Re-Cycle & Extraction
120v HEPA Dust Extractor

HEPA Pro LP MAX
120 Volt, 300 CFM, 100" H20

OSHA Silica Dust Rule - Vacuum Compliant.

$3,200.00

120v, 300-CFM, 110" H20 — Sustained Suction

Vacuum & Reclaim ---
More Than a Dust Extractor:

VACUUM:

Powerful suction lifts heavy-weight debris such as metal, dirt, stone, sand, etc.
Extract ultra fine powder, sticky terrazzo, hot mastic and coatings, green concrete, food waste, insects, creosote, etc. --- see below, Can't Be Damaged!

RECLAIM:

Recycle or reclaim material that you prefer to re-use or sell, such as powder, metal, stone, and delicate materials such as seeds and buds from plants.

DESIGN, EFFICIENCY & COST-SAVINGS BENEFITS

The HEPA Pro LP MAX is a powerful dust extractor designed to handle dust collection on concrete surface prep jobs as well as construction, restoration and abatement jobs.

Equipped with (2) 10-quart backpacks that delivers 300 CFM & 100" H20 --- suction power to handle small to mid-sized floor grinders, shot blasters and saws, and portable and convenient to use with handheld grinding and sawing tools.

KEY EFFICIENCY ADVANTAGES

Powerful Suction - Unlike other dust extractor that utilize bypass or turbine motors, the HEPA Pro LP MAX uses flow-through motors to provide higher suction and airflow.

Dual-Cyclonic Separation - features an integrated dual-cyclonic module that captures approximately 98% of airborne dust before the finest of particles can reach the micro-fiber collection bags. This dramatically reduces filter loading, extends filter life, sustains suction, and prevents a 20 amp circuit from overheating.

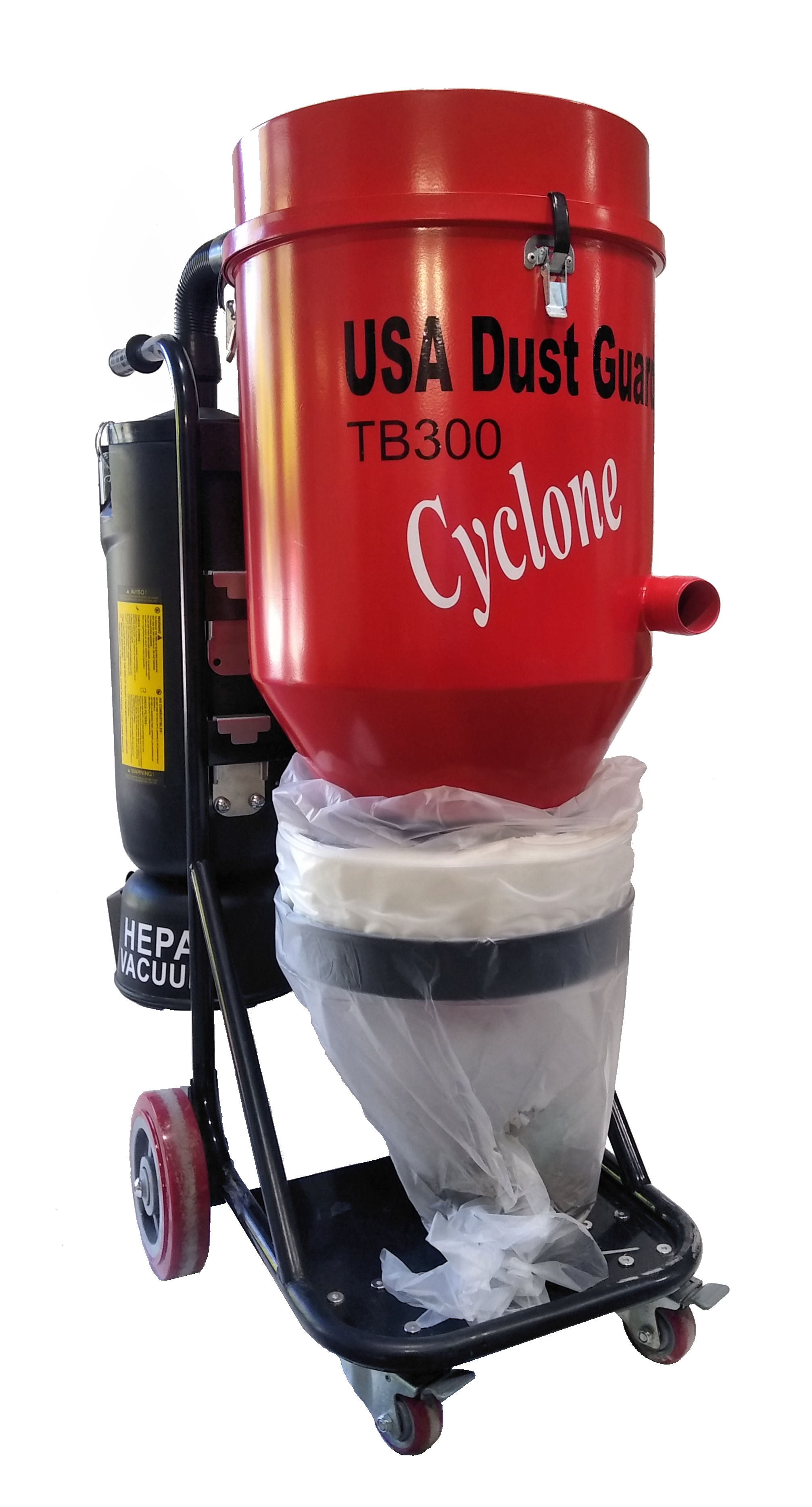

Cyclcone HEPA Dust Extractor - Dual-cyclonic separation.

IMPROVED AIRFLOW & SUSTAINED SUCTION

NO PRE-FILTER - With NO pre-filter to blind, cake, clean or replace:

The motors and a 20-amp circuit don’t overheat
300-CFM suction is maintained.

NO REVERSE-PULSE FILTER CLEANING

True cyclonic separation
No self-cleaning, semi or automatic filter cleaning because there is no pre-filter!

Reverse Air Pulse Filter Cleaning System.

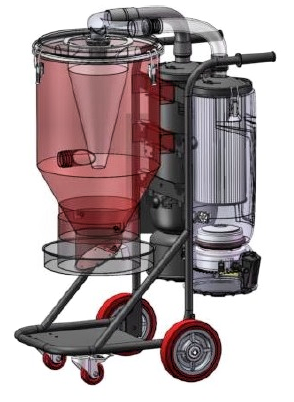

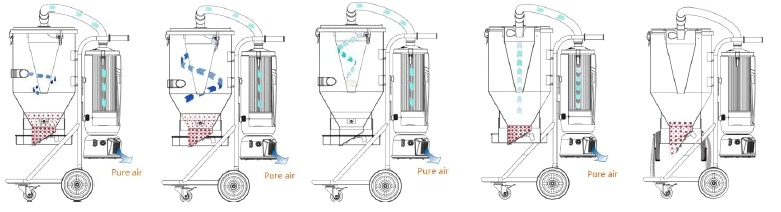

DUAL-CYCLONIC SEPARATION

With no cartridge pre-filter to blind, the system maintains consistent airflow and suction over extended periods of use—ensuring uninterrupted grinding and cutting productivity.
As the extracted debris is drawn into the cyclonic vortex, the heavier particles (90%) drop to the bottom of the chamber, while the lighter ones (10%) are separated again - inside the cyclonic module - without obstruction to cause suction drop.
Only the absolute finest of dust particles escapes the dual-cyclonic separation and they are collected by the micro-fiber bags that are nested inside the HEPA filters - HEPA filters stays pristine clean!

LARGE, CONVENIENT & SAFE COLLECTION SYSTEM

The external Longopac® bag collects dust continuously, accommodating over 200 lbs. of debris before requiring attention to the micro-fiber cloth filters.
This translates into longer operating intervals between service stops.

Cyclone Dust Extractor - uses the Longopac for debris collection.

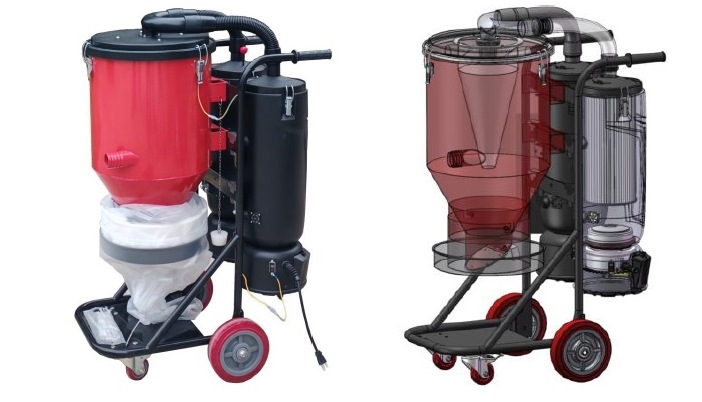

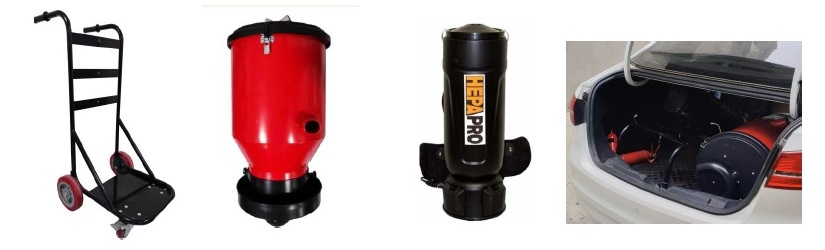

MODULAR DESIGN - The HEPAPro TB300 adopts a modular design which includes a detachable cart, pre-separator, and (2) backpack HEPA vacuum cleaners.

Designed for easy handling and transportation, and at the same time it can ship UPS Ground.

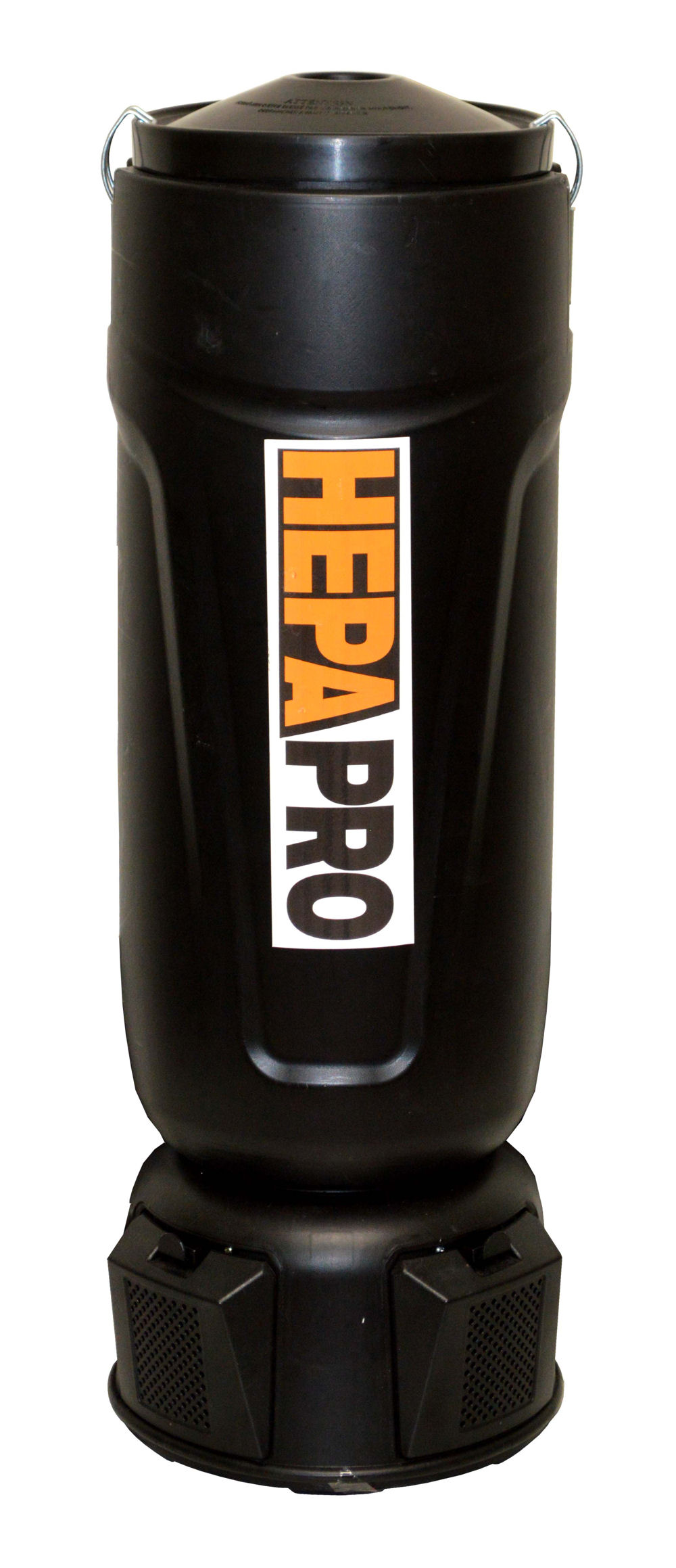

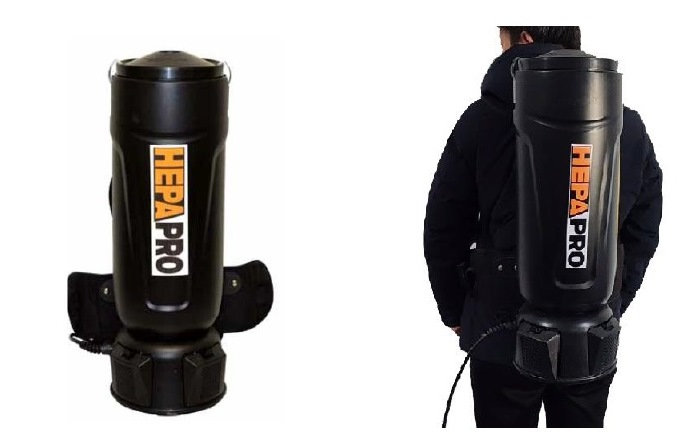

The two backpacks are detachable and easily removed from the frame and may be used individually for picking up dust in narrow or difficult to reach areas. They can also be assembled with a harness and be used as a traditional backpack vac.
Auto-Clean Pulse-Valve - The motors of the vacs have built-in temperature control that prevent overheating, and an auto-clean pulse-valve automatically cleans the micro-fiber bag.

MAINTENANCE - UNSTOPPABLE PERFORMANCE

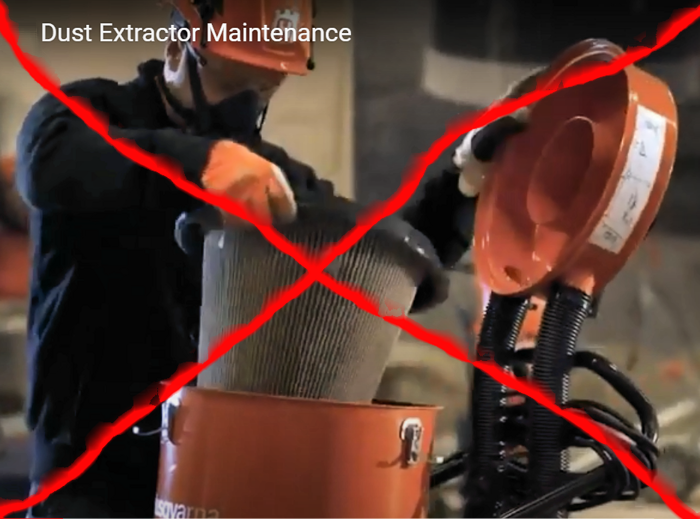

Unlike other dust collectors that use cloth, felt, or pleated pre-filters, these types of filters are not only expensive and need to be replaced regularly, but they blind and cake easily and suction steadily declines as the dust extractor is used.

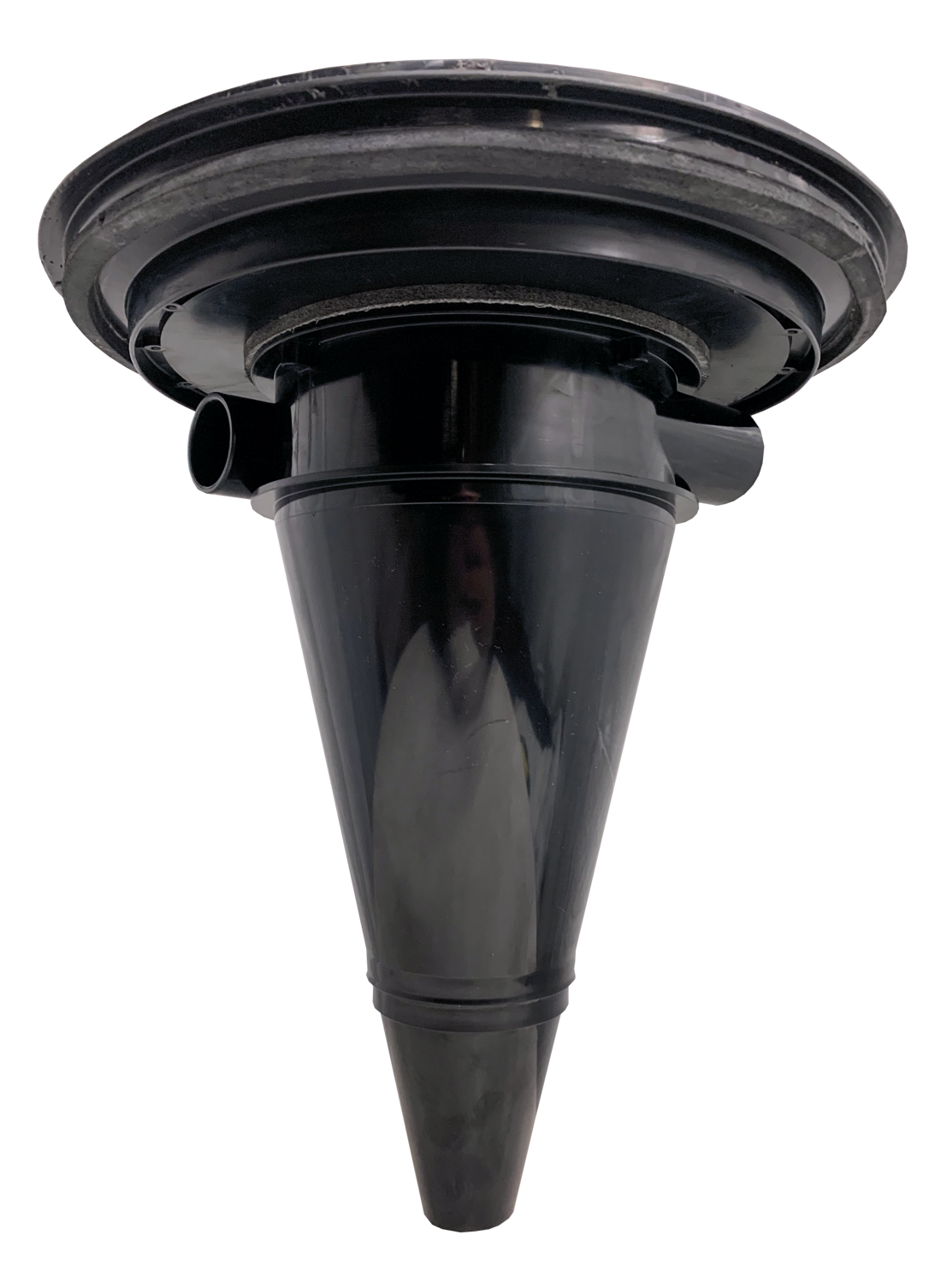

In contrast, the HEPA Pro LP MAX uses the dual cyclonic module which is easy to clean with water and is permanent.
- CYCLONE MODULE - requires no operator intervention like manual shaking, air pulsation, or electronic oscillation to maintain or restore filtration efficiency and maximum suction performance.
- CAN'T BE DAMAGED
  - Unlike a cloth or cartridge pre-filter that is compromised and damage when sludge, hot coatings, and sharp objects are vacuums, the cyclone module is made of steel and is 100% washable and impervious to damage!
Extracted material is collected in the external HD Longopac® bag and the two HEPA filters stay remarkably clean!

TESTED & HEPA CERTIFIED FILTRATION

EXCEEDS EPA RRP & OSHA SILICA DUST STANDARDS --- Individually tested and certified to be 99.97% efficient at 0.3 microns with test label affixed to the filter.

CERTIFICATION LABEL, complete with airflow and penetration rate numbers and individual serial number.

HOSPITAL / BACTERIA APPROVED - HEPA Pro LP MAX, with filtration at 99.99% efficiency at 0.3 microns, the 0.3 micron is smaller than the size of a virus. As a reference, the size of the Corona Virus is 0.06-0.14 microns.

PRODUCTIVITY: KEY PERFORMANCE

For every 40 lbs. of silica dust collected in the external Longopac®, less than 5 ounces (10 tablespoons) of the absolute finest of dust bypasses the cyclone and is captured by the micro-fiber bags (2) which are nested inside the HEPA filters

Auto-Clean Pulse-Valve - after collecting 200 lbs. of silica dust (or filling five Longopac® bags, the micro-fiber bags contain just 1.5 to 2 lbs. of dust --- and that yield is compacted (like a trash compactor) by the Auto-Clean Pulse Valve. This feature further enhances the long run times before the micro-fiber bags need to be replaced while the HEPA filters (2) stay pristine clean!

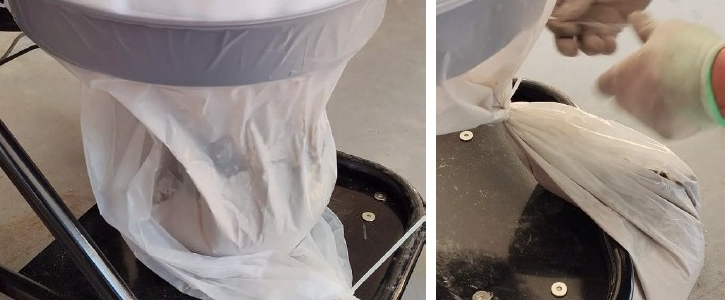

Collection of 40 lbs. of Silica Dust in a Longo Pac Bag

COST SAVINGS HIGHLIGHTS

Reduced Filter Replacement Costs: With minimal dust reaching the micro-fiber bags, users benefit from extended filter life, resulting in fewer replacements and lower ongoing operating costs.
Lower Labor & Downtime: Fewer filter changes and less frequent bag replacements equate to reduced labor requirements and improved jobsite productivity.
Cleaner Operation & Compliance: The system's effective dust containment enhances OSHA compliance and creates a cleaner, safer work environment.

Technical Specifications:
Model	TB300
Power	Single-phase, 2-Motor, 120V, 1200W x 2 (10.0A each)
Airflow	300 CFM (upgradeable to 450 CFM)
Waterlift	100" H20
Inlet	2"
Hose	2" x 20' with 2" ID screw cuffs (2)
Dimensions	22" W x 32" L x 57" H
Weight	130 lbs.
Filtration	HEPA Certified filters with nested micro-fiber collection bag - catches the ultra-fine dust, significantly prolonging the life of the HEPA filter.
Debris Collection	Continuous plastic bag (Longopac®)
Accessories	2" x 20" HD Pro Floor Brush & 50" aluminum double-bent wand (shown, right.)
Power Cord:	12/3 x 50 ft
Warranty:	1 year

Accessories:

20" Pro Sweep Floor Brush & 50" S-Wand (included with the HEPA Pro LP MAX.)

POWERFUL LIFT - as effective and productive as the HEPA Pro LP MAX is as a dust extractor for silica dust extraction, its impressive combination of 300 CFM and 100" of H20 makes the HEPA Pro LP MAX exceptional at sweeping floors after grinding and sawing operations.

Professional Floor Sweep Tools --- Included: constructed of HD aluminum with adjustable wheels and brushes, you can expect to vacuum the finest dust particles from every conceivable surface type including the full width of its 20" brush!

< Click here for Replacement Floor Brush & Wand >

20" Pro Floor Sweep with 2" Double-Bend Wand

Double-Bend S-Wand with Locking Nut, 2" x 50"

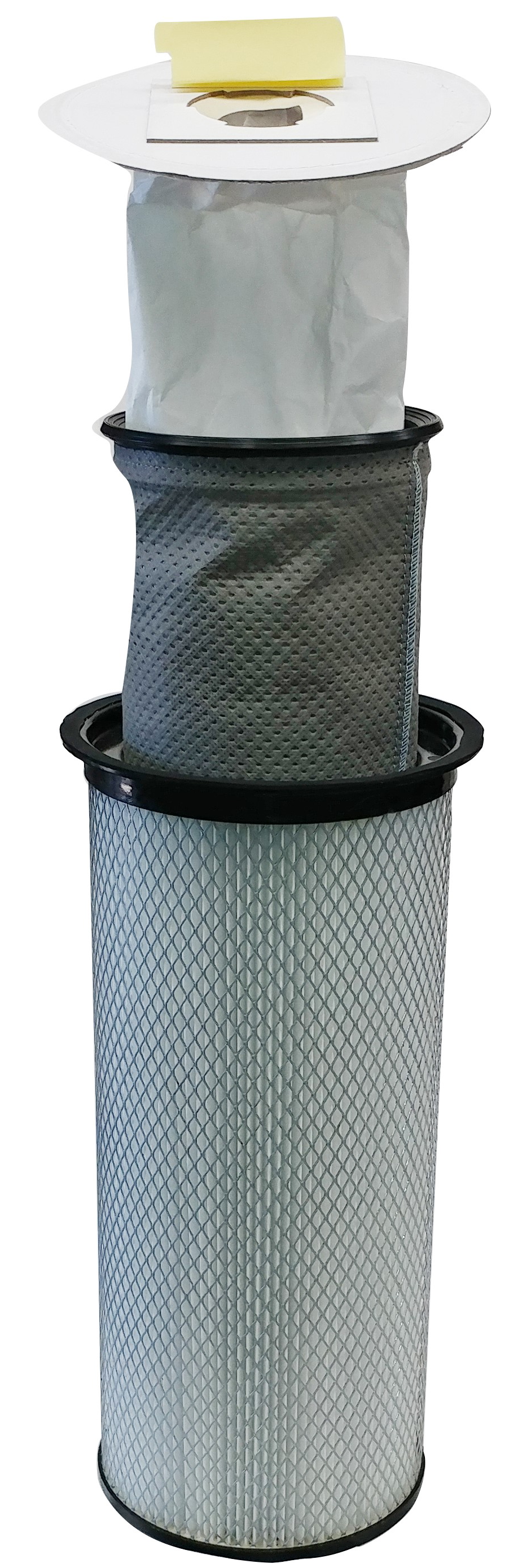

Micro-Fiber Collection Bags - Collects the ultra-fine powder that escapes the cyclonic separation - this upstream filter bag keeps the HEPA filters clean.

When vacuuming dry powder, a micro-fiber bag is typically replaced after collecting 200 pounds in the Longopac® bag---only the absolute finest of dry powder reaches the micro-fiber bag.

Micro-Fiber Collection Bag, 10-Pk
#122-3228-14 $40.00
