Vac Main Menu   >   13-Gal HEPA PRO MAX

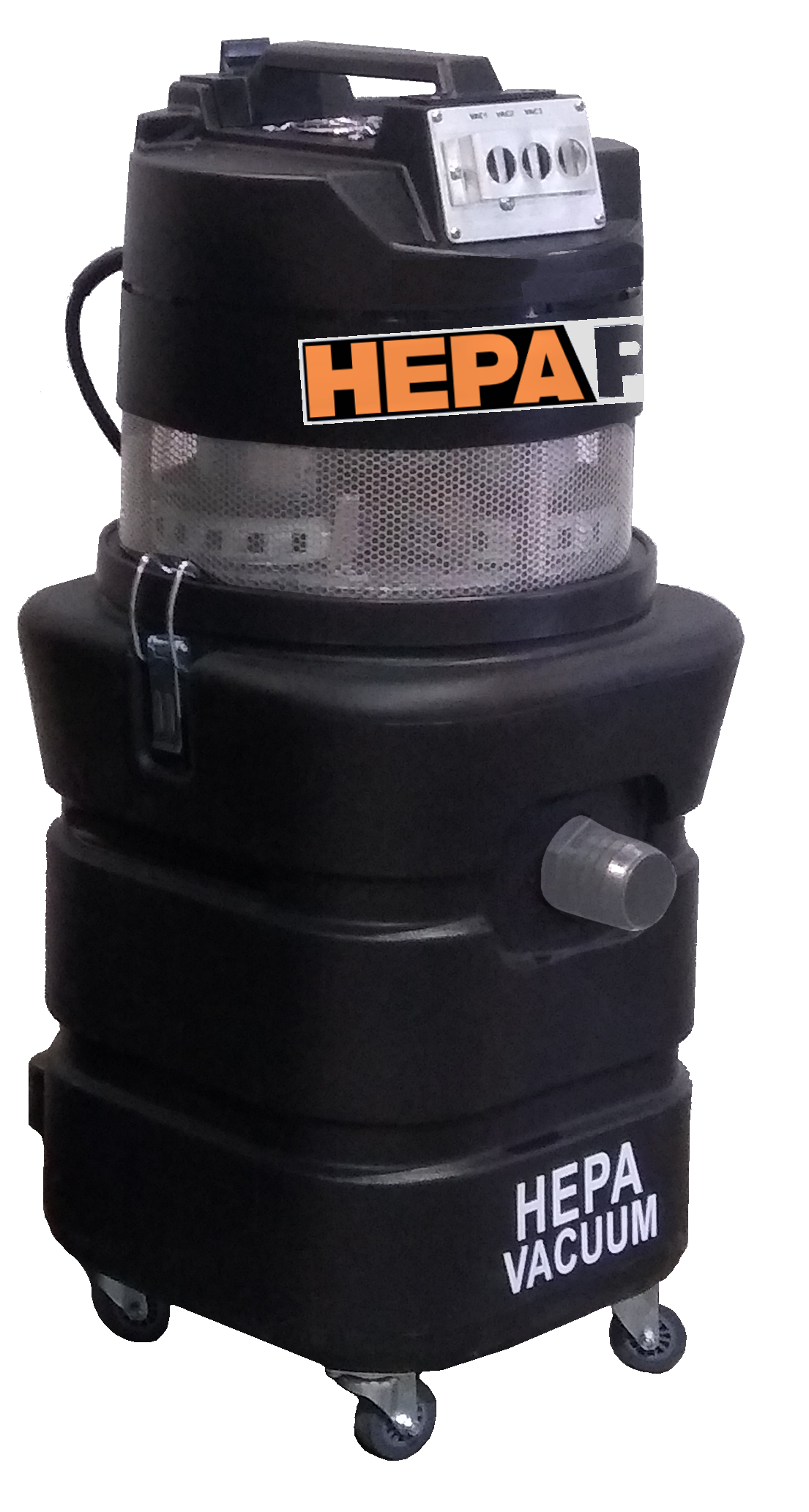

HEPA Pro 13-Gal:  3-Motor, 421 CFM Vac.

HEPA PRO MAX
Model #13-421




Suggested Applications:

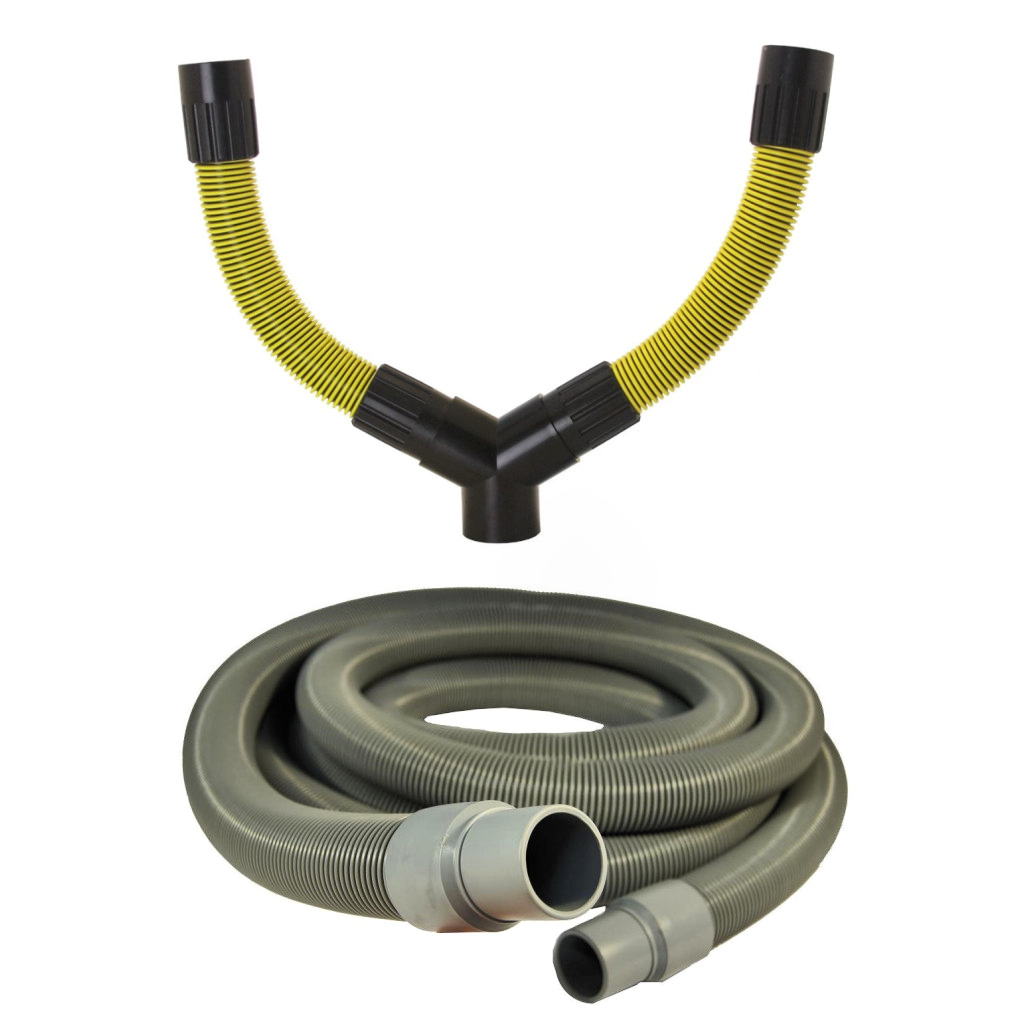

Y-Hose Splitter - operates two dust control tools from (1) 421-CFM Vac.Combo's:  Dust Pro 6 with Angle Grinders.Tuck Pointing
Operate two Dust Directors® from the 421-CFM Vac, using the available Y-Assembly.

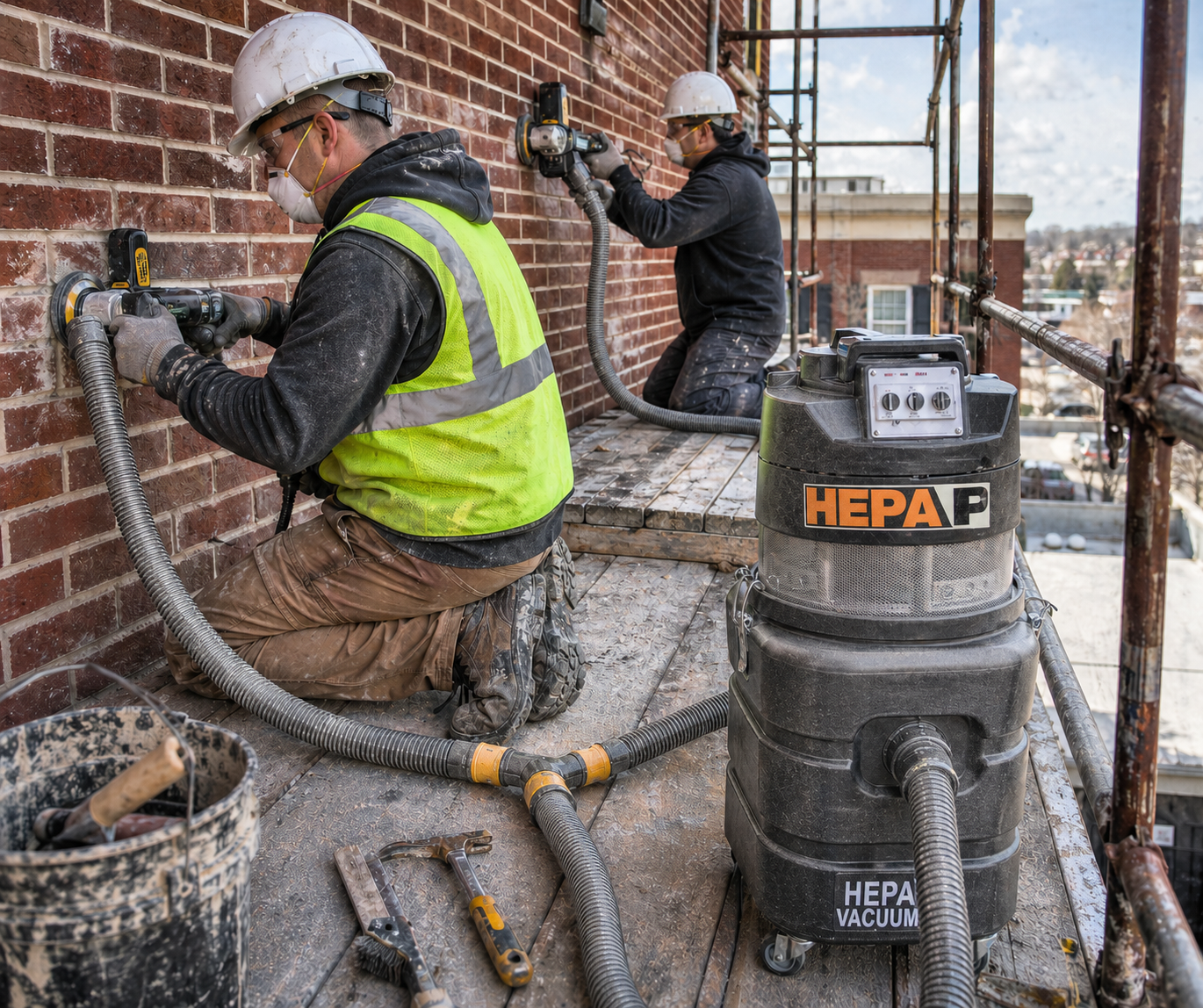

The 13-gallon HEPA Pro Max was specifically designed for use on scaffold with dust control saws and grinders.

ADDITIONAL INDUSTRIES:

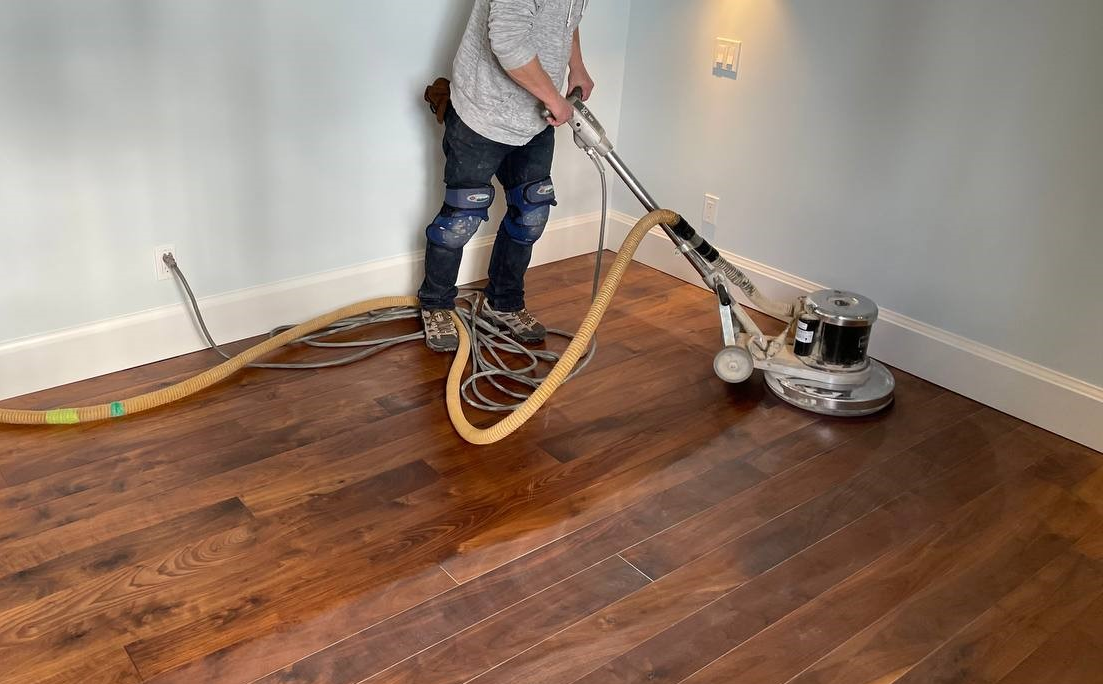

  • Hardwood Floor SandingHardwood Floor Sanding
  • Industrial, Manufacturing, Hospitals
  • Lead Dust Recovery, Clean Rooms
  • Asbestos, Bacteria, Mold Remediation

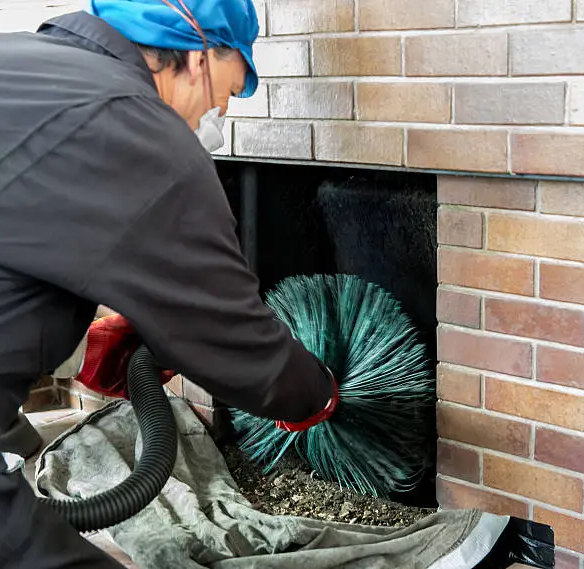

Fireplace Chimney Sweep CleaningCHIMNEY SWEEP CLEANING - extract volumes of cold ash, oily creosote and soot (debris which isn't burnt, a by-product of the fireplace combustion process) without compromising the filter or incurring suction drop.



HANDHELD & WALK-BEHIND SAWS & GRINDERS

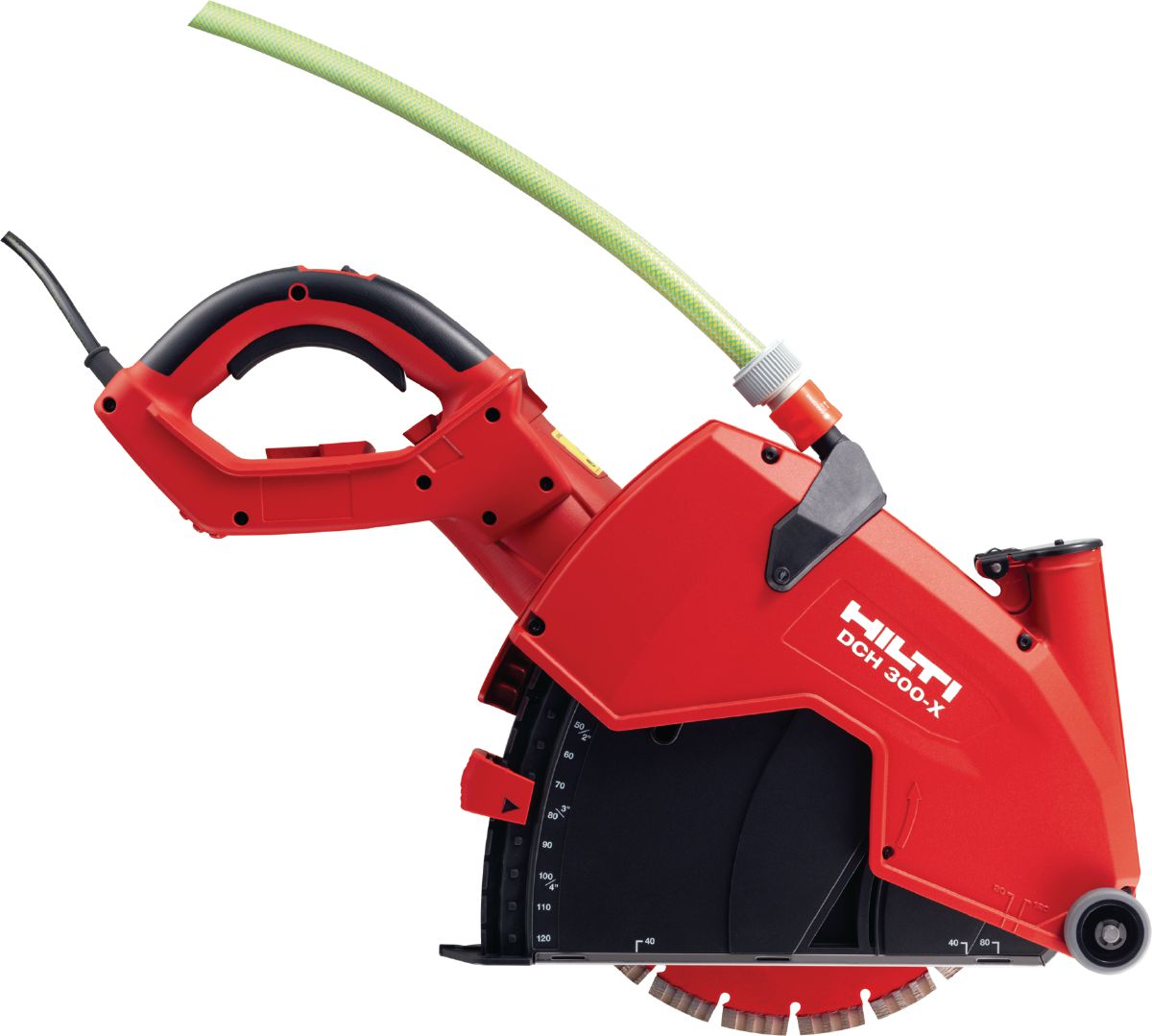

Dust Control 12" and 14" Saws Walk-Behind Saws Scanmaskin Floor Machines



HEPA Vacuum for Abatement & Dust Extraction
— High-Capacity HEPA Vacuum for Abatement & Restoration

Tools specifically for concrete & masonry restoration

Professional grade dust extractor solution

  Tools specifically for concrete & masonry restoration Unmatched performance and life
Tools specifically for concrete & masonry restoration

Certification protection

  Tools specifically for concrete & masonry restoration Industry leading filtration
Tools specifically for concrete & masonry restoration XL HEPA Filter & Motor Life - Lasts 10+ times longer vs. any other vacuum or dust extractor on the market!
Tools specifically for concrete & masonry restoration Vacuum anything including volumes of silica dust, sludge, hot mastic, etc., without blinding the filter or compromising its life!



HEPA PRO 13-Gallon
421 CFM, Powerful 70" H20

$2,090.00

  Certified HEPA
  Lead Paint (RRP) & OSHA Silica Dust Compliant Dust Extractor!


Technical Specifications:

Model:

HEPA Pro MAX 13 Dust Extractor

Item Number

125-1218-20

Power

3-Motor, 1800 Watts
Tank: Rotational-Mold, High Density, Polyethylene, 13-Gallon
Amps: 6.5 x 3
Waterlift: 70"
CFM: 421
Power Tool Outlet: No
Filtration: 5-Stage HEPA Self-Clean
Power Cord: 12/3 x 50 ft
Warranty: 1 year
Size: 71 lbs.
22" x 21" x 47"
Hose: 2" x 16' with 2" ID hose cuff
Filter Bags Micro-Fiber Bag (5)
Collection Capacity 50 lbs., Silica Dust



2" x 50' Hose
With 2" ID Cuffs (2)

2" x 50' Vac Hose with 2" ID Smooth Hose Cuffs.

$184.00


Increases the vac's versatility.



Dust Pro 6" Tuck Point Dust Guard

SUPERIOR DURABILITY,
PERFORMANCE, DESIGN
COMPONENTS

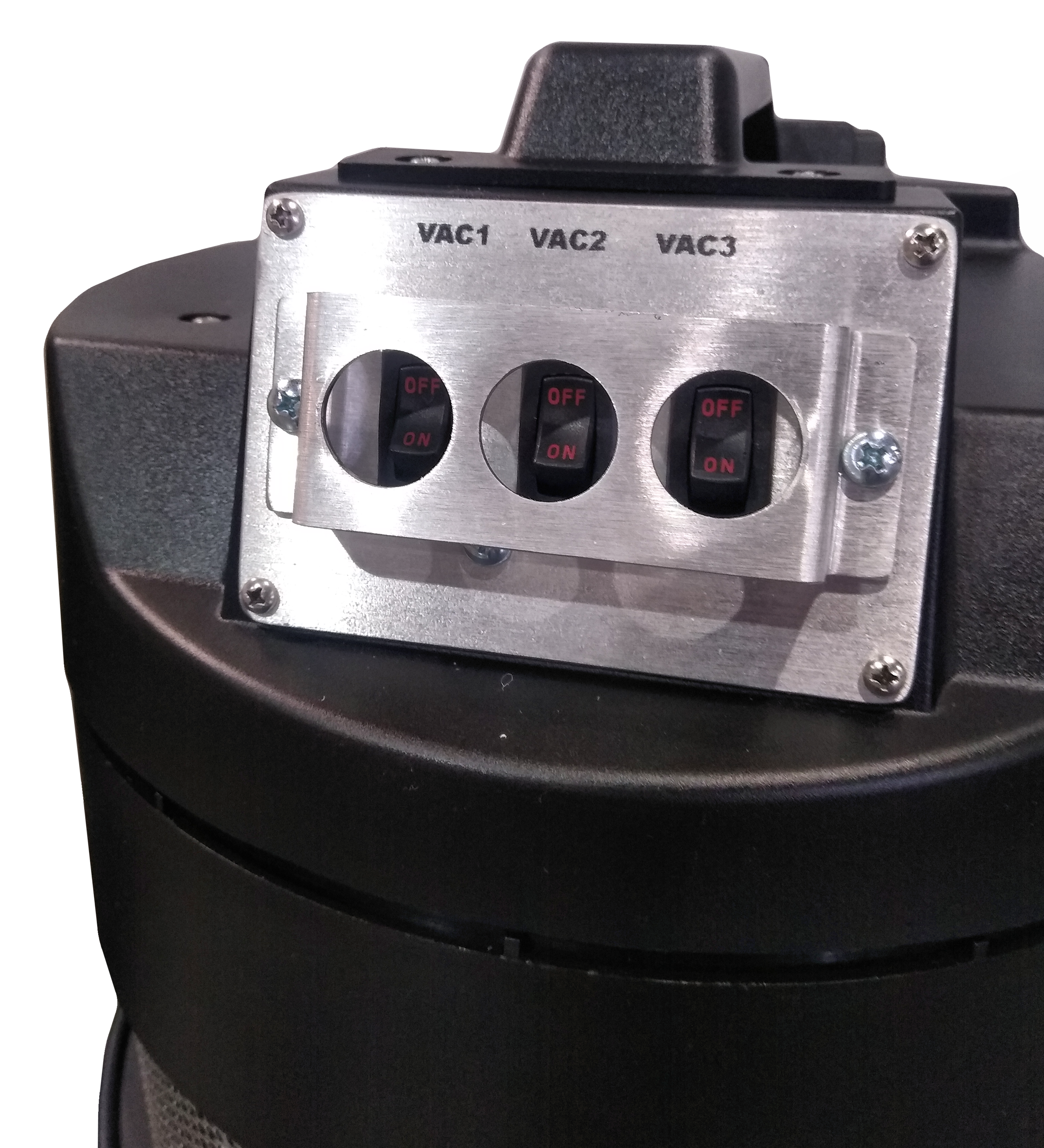

120 Volt 3-Motor Head w 3 Switches.  Powerful 421-CFM Suction:  From a 20-amp circuit without tripping the breaker!

  Sustained Suction --- Without incurring suction drop!




Everything Works Together --- To keep the filter from blinding and causing the motor and circuit to overheat:

Shop Dust Control Systems

USA Made Vac MotorsMotors (3):  Single-Stage (below, right)

Thru-Flow Motor 2-Stage By-Pass Motor

Unlike the competition that uses thru-flow motors to create high CFM (above left, they're about the size of a softball!)  These compact motors create high CFM but long operating times and durability suffer.

Shop Dust Control Systems

5-Stage HEPA Filtration - Vac Won't Leak!

HEPA Pro Vac Series, Filter System:  10 & 13.In the event of failure by one of the four (4) pre-filters, the HEPA filter and vacuum are both certified to prevent the bypass of matter back into the work area

Shop Dust Control Systems

Thick, Heavy-Gauge 12/3 x 50' Power Cord - plus it eliminates the need for an extension cord.

Shop Dust Control Systems

Self-Cleaning, Natural Filtration - vacuum anything including ultra-fine powder, creosote, bacteria, hot mastic, lead paint, mold etc., without blinding the filter or compromising its life!

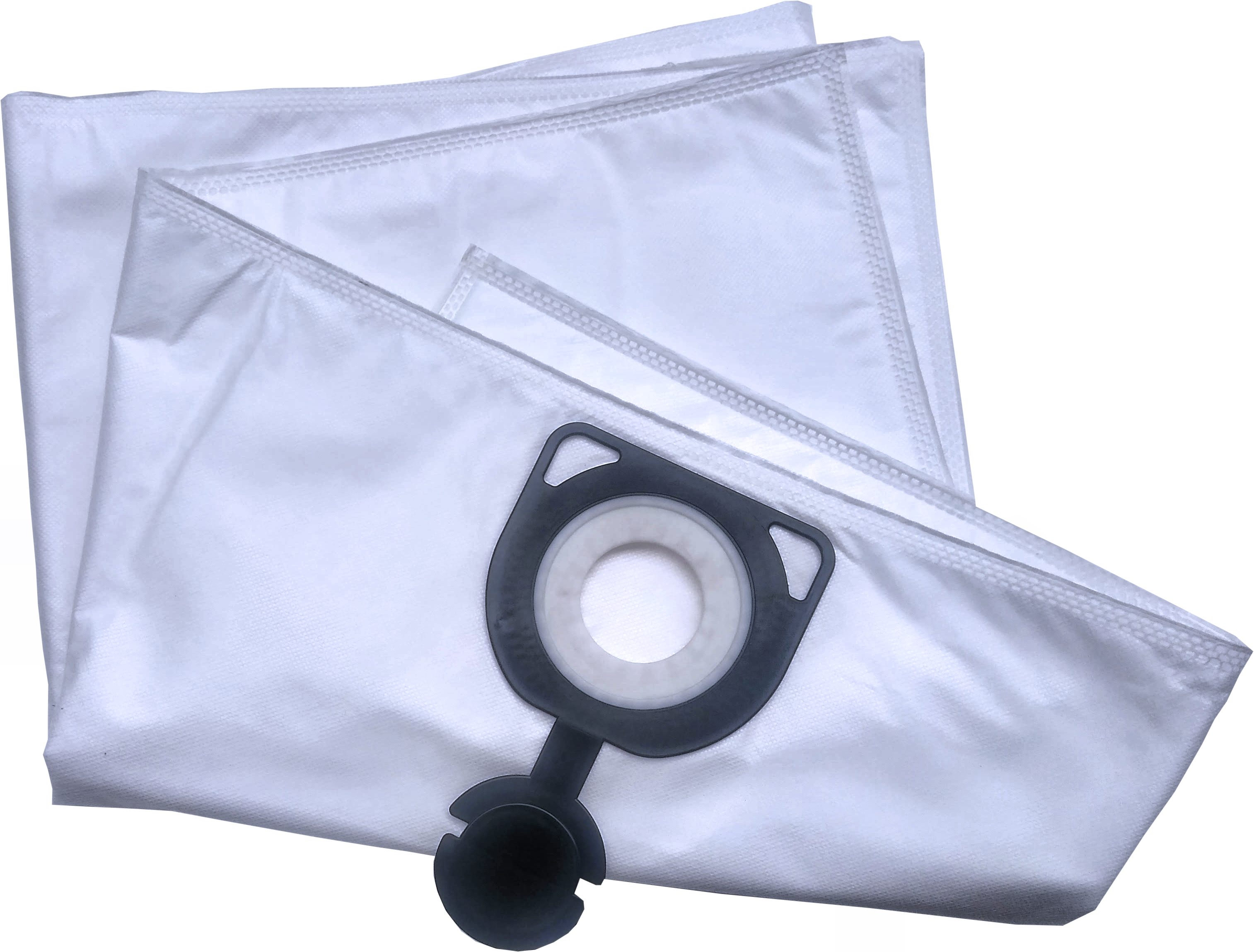

HD Micro-Fiber, Dry Powder / Wet Debris Vac BagMicro-Fiber Filter Collection Bag (right) - 1st stage in the 5-Stage HEPA Filter System.

Zero “0" electronics are used to keep the filters clean.
