HEPA 5-Part Filter Replacement System: USA Dust Guard Tuck Point / Scaffold Vacuums

HEPA Pro & HEPA Pro MAX - Filter System
--- The same five (5) filters are used in the HEPA Pro & HEPA Pro MAX Vacuums ---

5-Stage Filter System

Air Pulse Filter Collection Bag
1st filter in the 5-Stage "Fail-Safe" Natural Filter System

fills 100% without tearing

keeps the other 4-filters clean.

< Click here to order the Air Pulse Filter Bags >

"Fail-Safe" 5-Stage Natural Filter

Maximizes Collection Yields, Safety, Suction Power, Productivity:

HEPA filter is kept clean

Ultra fine dust is kept from damaging the motor(s)

Prevents the circuit and motor(s) from running hot

Prevents suction drop

Highest Level of Protection - should any of the individual filters fail the extracted debris is prevented from escaping.

Filter Item / Description
Filter Price

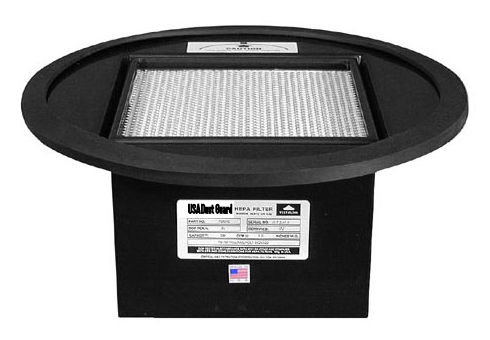

HEPA Filter
Item No: 127-3305-14

Replacement HEPA Filter - individually tested and certified to have a minimum efficiency of 99.97% at .3 microns in accordance with IEST-RP-CC001 test requirements.
Unlike most "so-called" HEPA filters, in event of a failure, by rupture or the like of the disposable Collection Bag or one of the other filter components (shown below), the HEPA filter is the final filter in our "Fail-Safe" System and is certified to prevent any discharge of dangerous dust in the air.

$249.00

Polyester Flat / Bottom Pre-Filter
Item No: 128-7504-14

Flat Pre-Filter, protects the bottom of the HEPA Filter, provides the air space to prevent premature suction drop when vacuuming powder.

$4.90

4-Side Space Filter
Item No: 128-7503-14

Four-sides, assures air space around the HEPA Filter to prevent premature suction drop when vacuuming powder.

$18.70

Dacron Protection Filter
Item No: 122-3222-14

Self-Cleaning, Dust & Water Shedding Filter Bags. Protects all the other filters to assure their longest life while preventing incoming debris from directly contacting and damaging the HEPA filter. FEATURES:

$15.90

Extreme "cake" release, prevents ultra-fine powders from accumulating on its surface instead of depth filtration: Prevents the captured debris from impregnating itself into the filter vs. depth filtration (i.e. pleated cartridge filter) which dust to "cake" itself into the filter's pleats which immediately reduces suction

Assures the upstream filters of longer filter life and greatly reduces filter maintenance.

Prevents Suction Drop - by reducing suction drop by just 10% you increase motor life and power consumption by 33%!

Extreme & Diverse Applications - material withstands the most abusive of applications including dry or wet and temperatures up to 600°F. The protective filter cover is suitable for high-temperature debris such as hot mastics during coating removal projects.

Washable - while the component cost of our vacuums is expensive, their initial cost is offset by the natural, no-electric, self-cleaning filter system to assure that maximum suction power is sustained for for improved production, longer motor and filter life.
