PCD - Coating Removal Tool, Diamond Cup Wheels

PCD Cup Wheels
— Fast, Efficient Removal of Epoxy, Glue, Coatings, Mastics, and Membranes.

Dust Pro 6" Tuck Point Dust Guard

Problem: Low Profile Dust Shrouds

Hilti - Low profile dust shroud While a cup wheel with a fixed 5/8-11 hub offers convenience, their taller height causes the bristles on a dust skirt to be off the surface which causes loss of dust containment.

Solution: USA Dust Guard - PCD Cup Wheels

Low-profile design
7/8" arbor
Each PCD cup wheel includes a 7/8" to 5/8-11 threaded adapter.

The low profile design along with the included adapter assures the cup wheel can be used with any type of dust shroud.

Result:

USA Dust Guard PCD Cup Wheels are guaranteed to fit your dust shroud
With the included 5/8-11 adapter, you also have the convenience and flexibility to use the wheels with taller dust shrouds or without a dust shroud.
Open-face design of the cup wheel maximizes dust containment for any grinding application.

Two Types
Quarter-Round
&
Chip-Segment

Best Cup Wheel for Coating Removal

Equipment Bundle & Save Programs

FREE Angle Grinder
--- With purchase of 10 Cup Wheels

View below: Bundle & Save Program

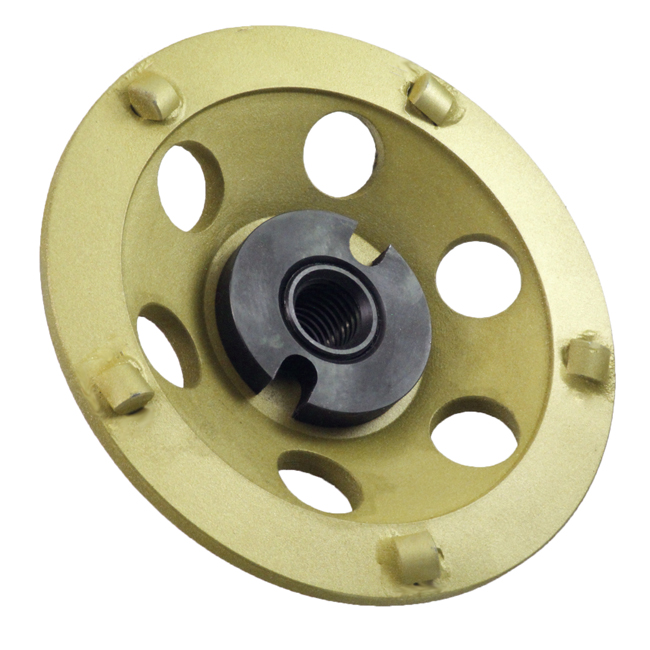

Quarter-Round, Low Profile Height
--- Large, quarter-round PCD segments provide aggressive coating and mastic removal
--- Quarter-round PCD is ideal for heavier, harder (acrylics), and thicker coatings.

USA Dust Guard has the best PCD Cup Wheels in the World:

Made with mining grade polycrystalline diamond - toughest and longest lasting PCD
Surest tool to remove soft to extremely hard, thin or thick adhesives, sealers, coatings including the hardest of acrylic sealers
Segments slice beneath the membrane and the surface of the concrete floor vs. a diamond segment which grinds and melts the coating.

Item Number Product Description & Size Price

97843 4.5" x 7/8"
5- Segments $170.00

97848 5" x 7/8"
6- Segments $209.00

97850 7" x 7/8"
9- Segments $300.00

Chip-Segment, Low Profile Height

Same quality as the above Quarter-Round PCD, including the 5/8-11 threaded adapter

Smaller or "chip" PCD Segments:

Less damage to the floor

Superior operator control for a more stable grinding operation

Ideally suited for coatings less than 1/8" thick.

Item Number Product Description & Size Price

PCDC4510 4.5", 10-PCD Segments $135.00

1075694 5", 12-PCD Segments $164.00

191017 7", 18-PCD Segments $259.00

Bundle & Save Program

Equipment Bundle & Save Programs FREE Angle Grinder --- With 10-Cup Wheel Purchase

Why buy an individual grinder when you can Bundle & Save?

Plus, we have the highest-quality diamond cup wheels in the industry.

Order the above cup wheels then select a FREE grinder:

Free Angle Grinders --- With purchase of 10 Cup Wheels ---
Makita #9565CV Variable Speed	Milwaukee #6088-30 High Torque, Low RPM

5", 13Amp 2800 - 10,500 RPM	9", 13.0 Amp 6000 RPM High Torque
Free $0.00 Makita 9565CV with Purchase of (10) 5" Cup Wheels	Free $0.00 Milwaukee 6088-30 with Purchase of (10) 7" Cup Wheels

Loop Handle For 7" & 9" Grinders: Improves control, comfort, precision.
	$90.00
The included hardware for the loop handle fits the Milwaukee 6088-30 Grinder: > 3/8-16 x 1" Hex Head Bolts (2), > Locking Washers (2) > Flat Washers (2). For Dewalt, Makita and Metabo grinders, metric hex bolts are required and the size is: 14MM-2.0 x 16MM.
