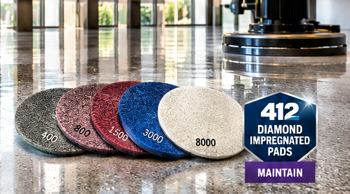

412 Diamond Impregnated Floor Pads

Polished? Keep That Shine.
The job isn't finished when the floor shines.
The job is finished when the shine can be maintained.

412 Diamond Impregnated Floor Pads are the maintenance and restoration stage of the 412 Seamless Diamond Transformation System™, designed to clean, restore and maintain polished concrete, terrazzo, stone and other hard, smooth floors while progressively enhancing the floor's appearance.

Unlike conventional maintenance pads that relay on chemicals, waxes or coatings, diamond-impregnated pads use embedded diamonds to mechanically refine the surface.

You don't just polish the floor once.
You maintain the diamond finish with diamonds.

PERFECT FOR A WIDE RANGE OF FLOORS
	Cleaning polished concrete
	Restoring worn floors
	Removing light scratches and wear
	Re-establishing surface clarify
	Maintaining polished concrete
	Maintaining terrazzo
	Maintaining marble, granite, tile and VCT
	Increasing gloss through regular maintenance
Also suitable for ceramic, tile, epoxy, and acrylic-covered concrete floors.

THE 4-STEP DIAMOND MAINTENANCE SEQUENCE

STEP 1 | 400 GRIT

412 Impregnated Diamond Pad - 400X

RESTORE

For neglected or worn floors.

Removes light-to-medium scratches, etching, discoloration and embedded soil while establishing the starting surface for restoration.

Result: Satin / matte restored surface.

Size	Price
13"	$35.00
17"	$54.00
20"	$62.00

STEP 2 | 800 GRIT

412 Impregnated Diamond Pad - 800X

REFINE

Removes the 400-grit scratch pattern and refines the floor.

Excellent for resurfacing and deep cleaning polished concrete and terrazzo.
A

Result: Smooth, lightly reflective surface.

Size	Price
13"	$35.00
17"	$54.00
20"	$62.00

STEP 3 | 1500 GRIT

412 Impregnated Diamond Pad - 1500X

RENEW

Begins developing the polished appearance.

Removes the finer scratches and restores clarity while preparing the floor for the final polishing stage.
A

Result: Clearer, silky reflective finish.

Size	Price
13"	$35.00
17"	$54.00
20"	$62.00

STEP 4 | 3000 GRIT

412 Impregnated Diamond Pad - 3000X

POLISH & MAINTAIN

The final stage of the four-step sequence.

Produces the highest level of shine in the standard maintenance sequence and can then be used regularly to maintain and enhance the finish.

Result: High-gloss, wet-look appearance.

Size	Price
13"	$35.00
17"	$54.00
20"	$62.00

	Optional --- 8000 Grit MAKE THE FINISH POP
Final Shine Enhancement - the optional 8000 grit buff pad. Provides an ultra-high gloss for maximum shine and a beautiful reflective finish.


Size	Price
13"	$35.00
17"	$54.00
20"	$62.00

HOW TO USE 412 DIAMOND PADS
	Select your grit --- Start with the appropriate grit based upon the condition of the floor.
	Install the pad --- Attach the pad to the appropriate diamond pad driver.
	Make controlled passes --- Work systematically over the floor, making 4-5 passes per grit and check the surface.
	Progress through the sequence --- Do not advance until the previous scratch pattern or surface defect has been removed.
	Clean & inspect --- Remove residue and inspect the floor before moving to the next grit.
	Maintain --- Once the desired finish is established, use the 1500 and/or 3000 pad as part of the regular maintenance program.

WET OR DRY ---
ONE DIAMOND MAINTENANCE SYSTEM

WET

DRY

	Excellence cleaning action
	Controls residual / slurry
	Good for routine maintenance
	Particularly useful with 800 grit

	No water required
	No slurry
	Convenient for polishing / maintenance applications
	Particularly useful when maximum gloss is desired

SPECIALTY DIAMOND PADS

100 Grit - Heavy Restoration

200 Grit - Aggressive Restoration

For floors that need serious correction.

The step between heavy restoration and standard maintenance.

>	Very aggressive
>	Deep surface renovation
>	Scratch and discoloration removal
>	Useful following grinding

>	Less aggressive than 100 grit
>	Substantial correction for damaged or worn floors.

Size	100-Grit	200-Grit
17"	$54.00	$54.00
20"	$62.00	$62.00

PAD DRIVERS & RETAINING CLAMP
THE RIGHT PAD DRIVER MATTERS
412 Diamond Impregnated Pads are only as effective as the system holding them to the machine.

AVAILABLE PAD DRIVERS

PAD DRIVER RETAINING CLAMP

HD Poly Strains - Staple-set into pad driver.

Video: Pad Driver & Retaining Clip

--- Overview & how to use: Video - :53

PAD DRIVERS - equipped with the NP-9200 universal clutch plate and built-in 1-1/4" riser for easy and immediate installation & removal from the grinder's 3-tab keyway.

Thousands of individual, heavy polypropylene strands staple-set into the molded, polymer pad driver that grips into the diamond pad to hold it securely while the machine operates.

Combined with the included NP-9200 universal clutch plate and built-in 1-1/4" riser for a superior, cost effective and complete pad driver to handle the toughest jobs. Available in 3 sizes:

Size	Description	Price
13"	Dual 13" Diamond Pad Drivers (set of 2), fits the Hawk Dual-Head GP26 Grinder	$189.00
13"	13" Diamond Pad Driver	$85.00
17"	17" Diamond Pad Driver	$120.00
20"	20" Diamond Pad Driver	$150.00

Securely holds and centers any size pad to the above pad drivers. 2-piece, spring-lock.
A

Size	100-Grit
Fits All Pad Drivers	$46.00

COMPLETE YOUR SYSTEM

>	412 Diamond Pads
>	Pad Driver
>	Retaining Clamp

Complete Diamond Impregnated Maintenance System
