Vac Main Menu   >   8-Gal Dust Extractor


8-Gal Silica Dust Extractor

Plus Wet Pick-Up with Powerful 92" Water Lift

Price List
Dustless Vacs - 8 & 16-Gallon.



Dustless Vac - 138 CFM, 8-Gallon.

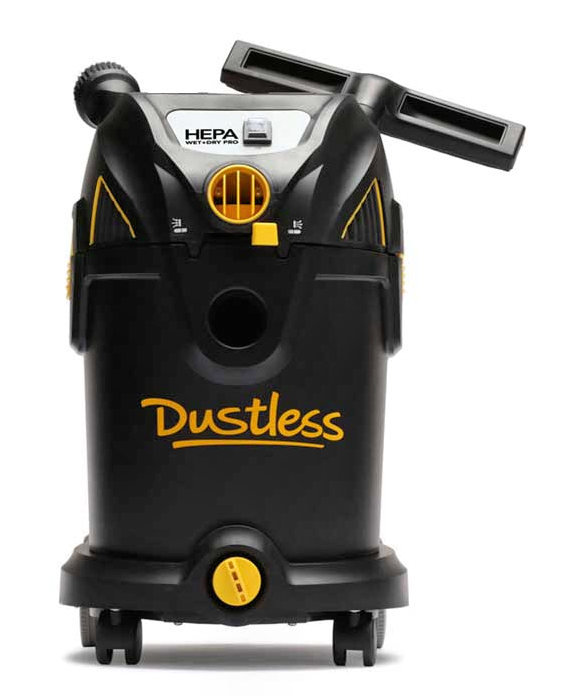

Dustless D1619
Wet / Dry Use, HEPA Filter

OSHA Silica Dust Rule - Vacuum Compliant.$695.00

OSHA Silica Dust Compliant Dust Extractor

Dustless Model:  D1619:

  • 138-CFM, 92" H20

  • 8.0 Gallon

  • 1-1/2" x 12' Hose

  • 1-1/2" Connection cuff

  • 3-Year Warranty.

Equipment Bundle & Save Programs


Added Value Included:  FREE Dust Pro 6" Guard --- with Dustless Vac Purchase

Dust Pro 6" - with 6" blade, installed on a Fein grinder.

Added Value Included:  FREE Accessories --- with Dustless Vac Purchase:

  • Hose cuff - threads onto the 1-1/2" hose x 2" ID ( to secure the guard)

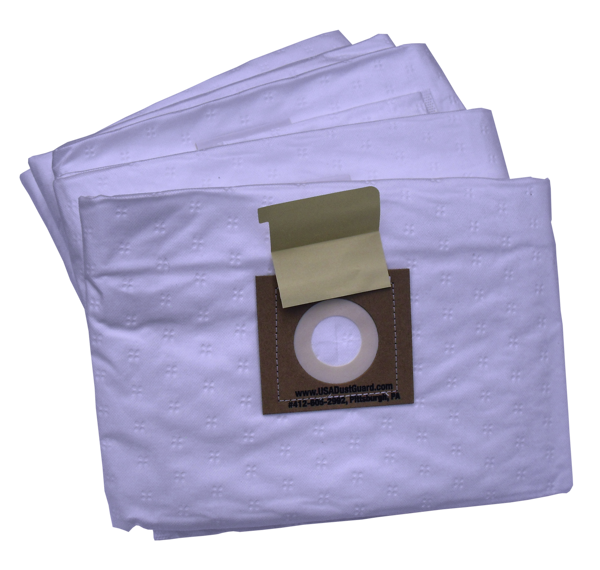

  • Air Pulse Filter Collection Bags (5).




Free Surface Dust Guard  View below - see:  Bundle & Save Programs



Specifications / Features:

  • 8-Gallon Capacity, 120 volt, 12.0 Amp

  • 138 CFM, 92" H20

  • 138 CFM to handle 5″ diamond blades

  • Go between wet and dry collection without switching filters

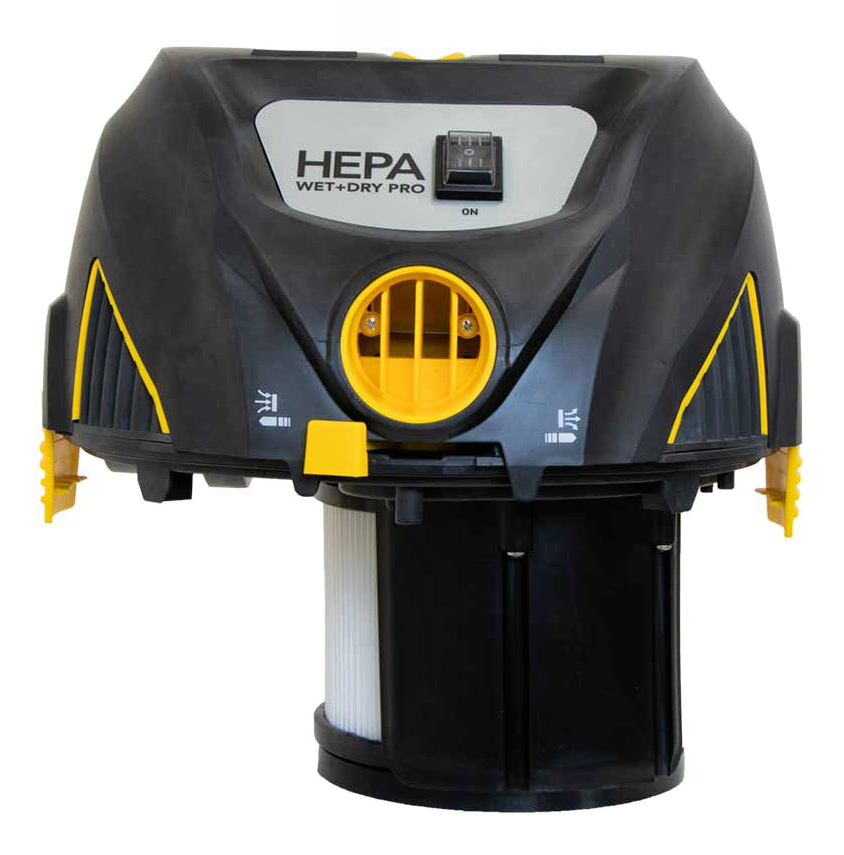

  • Filter System

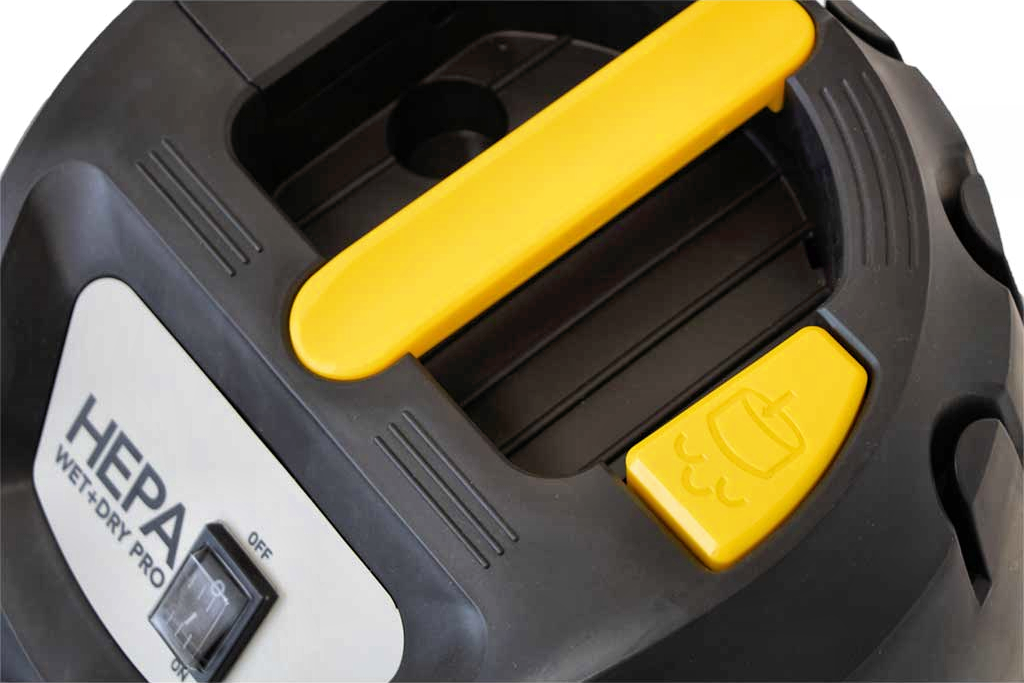

    • Push-to-Clean:  cleans filter without opening the unit

    • Filters: *

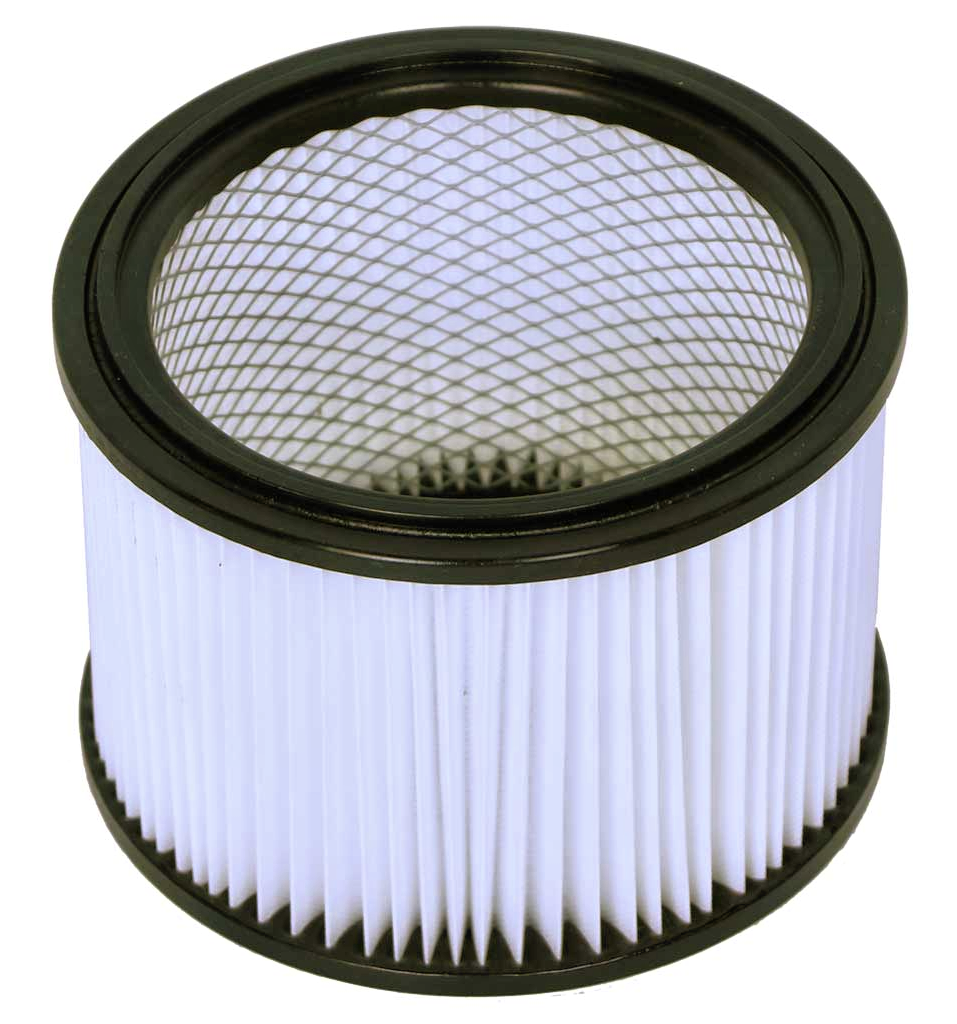

      • HEPA filter

      • wet screen filter

      • pre-filter collection bag (1)

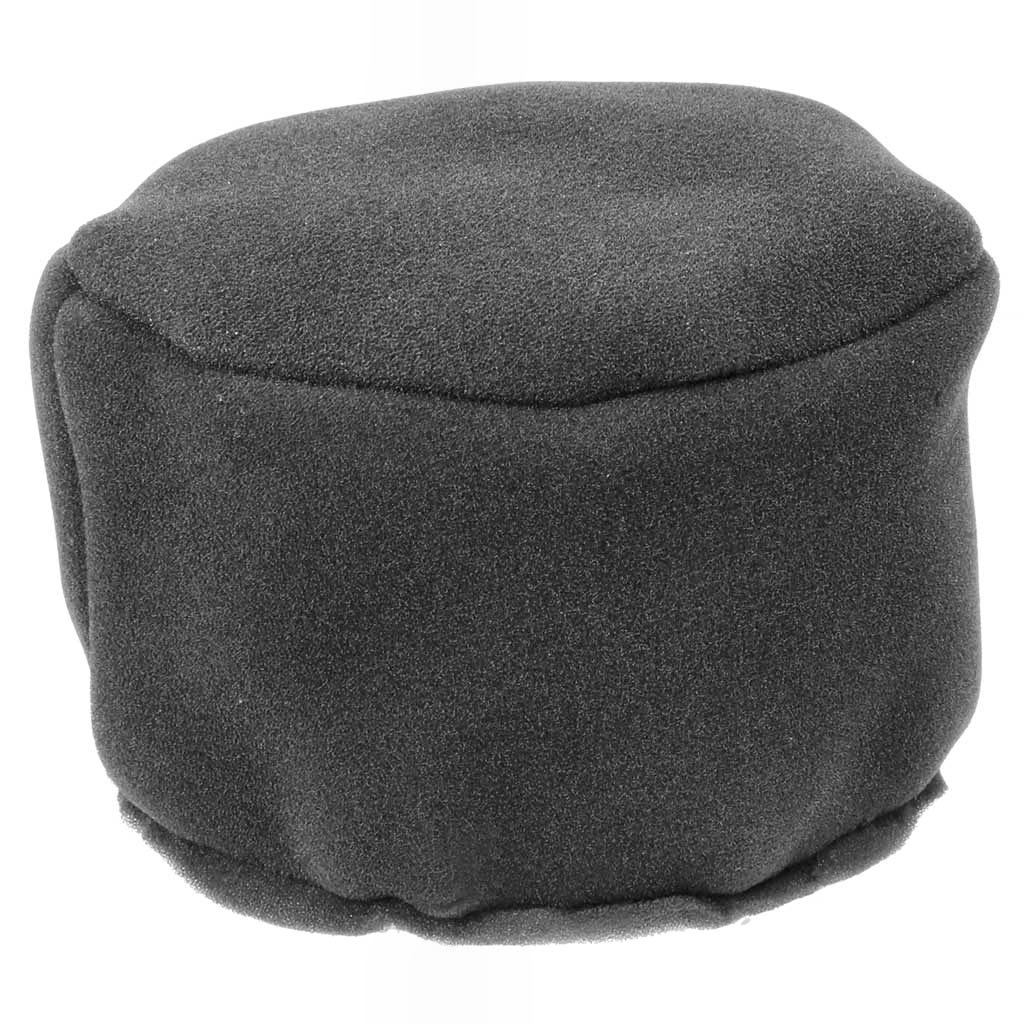

      • HEPA filter protective deflector shield

  • Hose - crush and kink proof, 1-1/2" x 12' w/ cuffs

  • Hose Cuffs - vac includes (2) 1-1/2" ID hose cuffs

  • Tool kit:  floor & crevice tool, round brush, (2) chrome extension wands

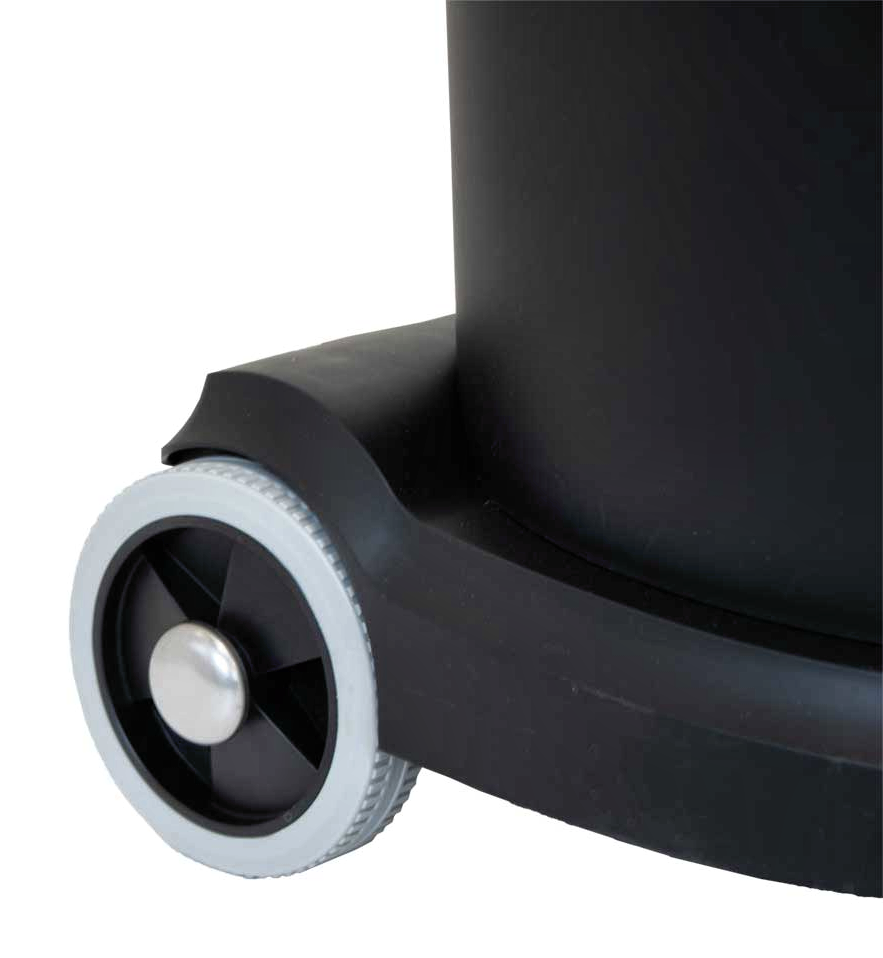

  • Tough, industrial grade wheels and casters

  • Hose attaches to the drain valve for distance draining

  • Dimensions:  21" (w) x 21" (l) x 27" (h)

  • Noise Level:  76 dB

  • Power Cord Length:  12 ft

  • Weight:  38 lbs.

  • Warranty:  3 Year.





* As per the OSHA Silica Dust Regulation:  "Dust collector must have a filter with 99% or greater efficiency and a cyclonic pre-separator or filter-cleaning mechanism."  -- i.e. a HEPA filter is not required.

Features:

Delivering the best combination of CFM and H20 to comply with the OSHA Silica Dust Regulation

  • Grinding / cutting applications in concrete requires 25 CFM per inch of diamond blade diameter

  • This 138 CFM Dust Extractor will handle a 5" diamond blade

  • Capable of both wet and dry pick up without switching filters

  • Certified HEPA system prevents harmful dust from bypassing the filter

  • Captures extremely fine dust from drywall, concrete, wood, fiberglass, stone and other masonry products

  • Filters and pre-filters won't be compromised by water or slurry

  • 8-gallon collection capacity holds over 20 pounds of dust

  • Exhaust port accepts the 1-1/2" x 12' hose to function as a blower

  • HD, durable tank clamps.















Bundle & Save Program

Equipment Bundle & Save ProgramsFREE Dust Pro 6" Guard & Accessories
--- With Dustless Vac Purchase


Why buy individual tools when you can build a complete dust control system and save?

Dust Pro 6" - with 6" blade, installed on a Makita grinder.REWARD YOURSELF:  with a Dustless Vac purchase you gain a professional dust control guard AT NO COST.  That means:

  Complete OSHA-compliant setup
  Free equipment  — you'd otherwise pay for


Dust Pro 6" --- " Best Dust Guard in the World!"


FREE ACCESSORIES - included with Dustless Vac Purchase:

  • Air Pulse Vac Bag Hose cuff - threads onto the 1-1/2" hose x 2" ID ( to secure the guard)

  • Air Pulse Filter Collection Bags (5) - The absolute best bag on the market for collection yields, efficiency rating, durability.





Related Products

Equipment Bundle & Save ProgramsBundle & Save Package
--- Free Grinder with Blade Purchase
FREE Grinder with Diamond Blade Bundle
  • Compliment the Vac and FREE Dust Guard with a FREE Angle Grinder

  • Any of the following Grinders are FREE with a Minimal Diamond Blade Purchase

Metabo Angle Grinder, W850-125:  5", 8.0 amp
Makita SJS Angle Grinders
Free Dewalt Grinder, #DWE402:  4.5" 11 Amp, Lock-On Paddle Switch.

Makita 9005B Grinder, 5", No Electronics.

Free Fein Angle Grinders
Buy 15 Diamond Blades, Get a Free Professional Grinder

REPLACEMENT FILTER COLLECTION BAGS      Air Pulse Vac Bag
