Hawk Orbitec Diamond Plate - 400 RPM Diamond Polishing for Concrete & Stone Floors.

400 RPM - Planetary Plate

Professional Polishing of Concrete & Stone Floors

Price List

Orbitec --- Diamond Plates
3-Sizes: 13", 17", 20"

Planetary, 6-Heads, Counter-Rotating

Attaches to Hawk Direct Drive Floor Machines (right) or any grinder that uses the industry standard NP9200 clutch (shown below)
6-pedestals with hook’n loop facing, securely mount and hold 3" round resin diamond pads -- semi-metals and resins
Application: professional polishing of concrete and stone floors.

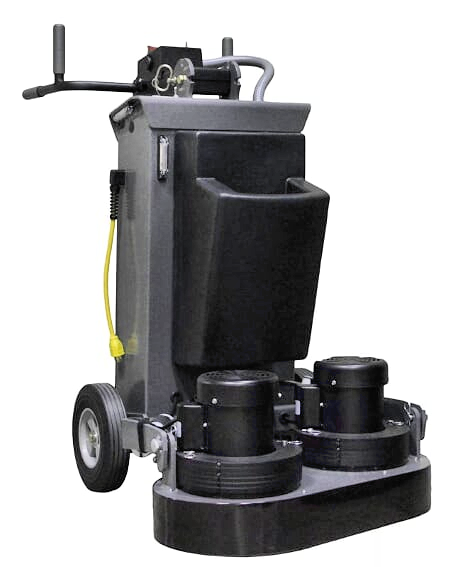

13" - 20" Grinders	26" Grinder

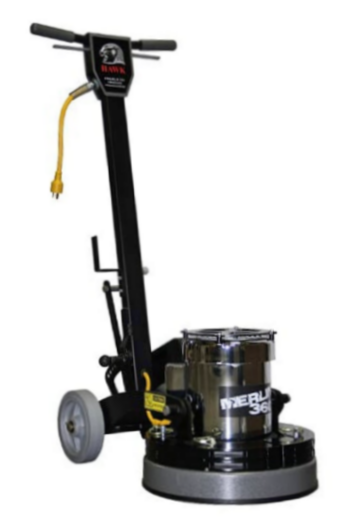

Hawk Direct Drive Floor Grinders --- Click here for grinder info & pricing.

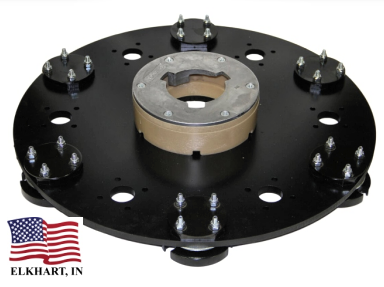

	Orbitec - bottom view, with Milled Steel Clutch Plate

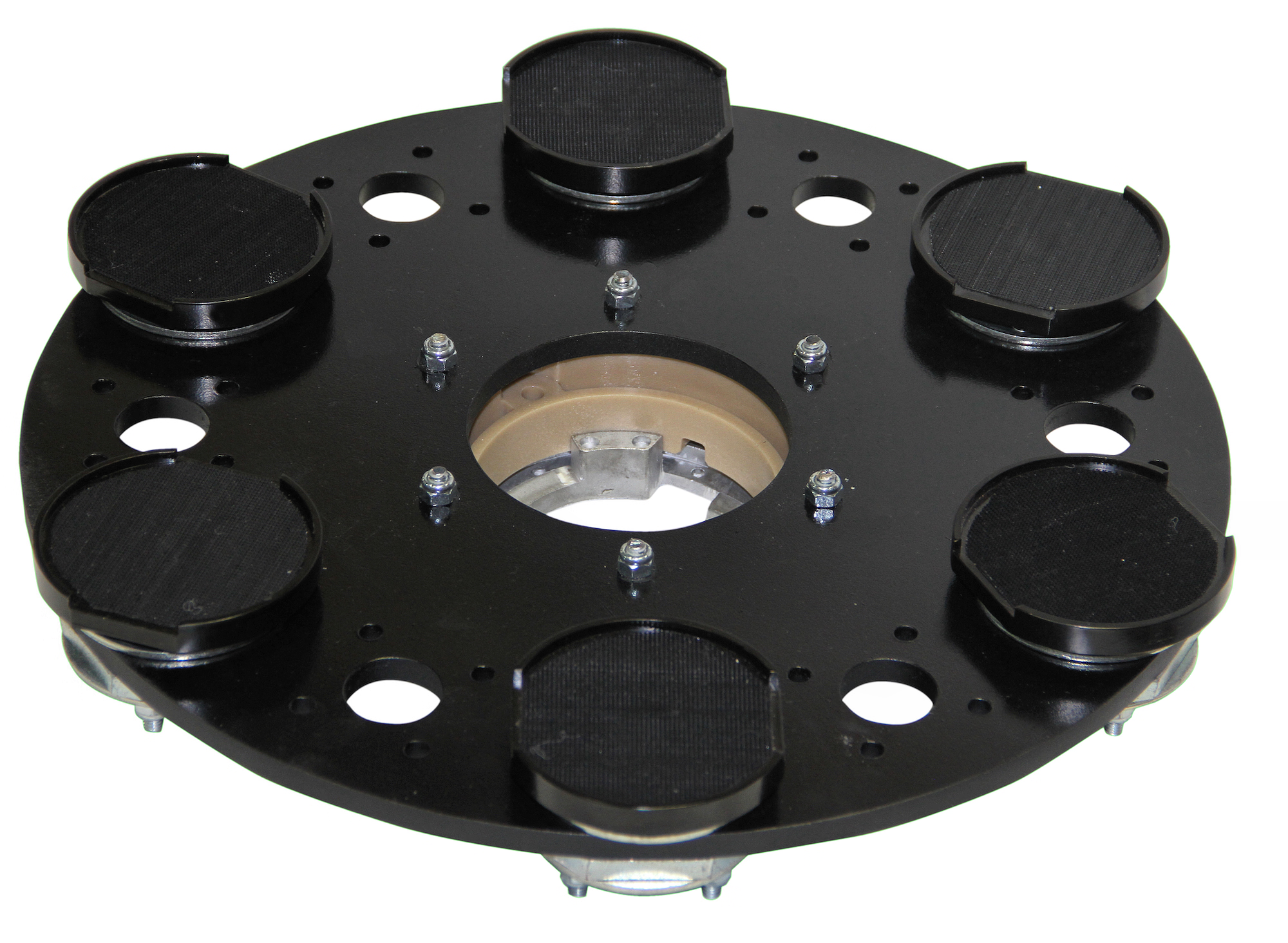

Pedestals with hook’n loop facing, securely mount and hold 3" round diamond pads - semi-metal and resins (shown below).
	Orbitec Plate - rotates at the speed of the grinder (165 - 175 RPM), individuals heads (6) rotate at 400 RPM.

Orbitec Driver Plates

$696.00      #HP0013
13" Orbitec Tool Driver w/ Clutch Plate, Weight: 25 lbs.
Diameter: 12.5", Fits 13" Floor Grinders
Tooling Slots: (6) Round, Hook'n Loop

$860.00      #HP0017-3
17" Orbitec Tool Driver w/ Clutch Plate, Weight: 46 lbs.
Diameter: 16.5", Fits 17" Floor Grinders
Tooling Slots: (6) Round, Hook'n Loop

$879.00      #HP0020-3
20" Orbitec Tool Driver w/ Clutch Plate, Weight: 64 lbs. Diameter: 19.5",

Plate Features

(6) Independent, Counter-Rotating Heads — Completely sealed, ball bearing heads, spin 3" resin diamonds at 400 RPM – 60% faster than the clockwise spinning driver plate

Planetary Action — (6) heads, rotates clockwise @ 400 RPM, mounted to the Orbitec Driver Plate, rotates counterclockwise (as viewed from the handlebars) @ 165 - 175 RPM

Professional Polishing Results — planetary design allows the grinder to move across smooth floors with relative ease, provides more torque during starting and then transfers to the individual heads (6) for increased RPM for professional polishing of concrete and stone floors

Custom milled steel clutch plate provides easy on-and-off mounting from the floor machine

Three plate sizes: 13”, 17” and 20”

Electroplated 1/2” thick steel driver plate is built with replaceable pedestal heads, black electrostatic coating (powder coated) resists corrosion

Orbitec driver plate mounts under most conventional designed 1.5 HP floor machines, rotating the individual pedestals heads (6) @ 400 RPM - counterclockwise to the driver plate

Pedestals with hook’n loop facing, securely mount and hold 3" round diamond pads

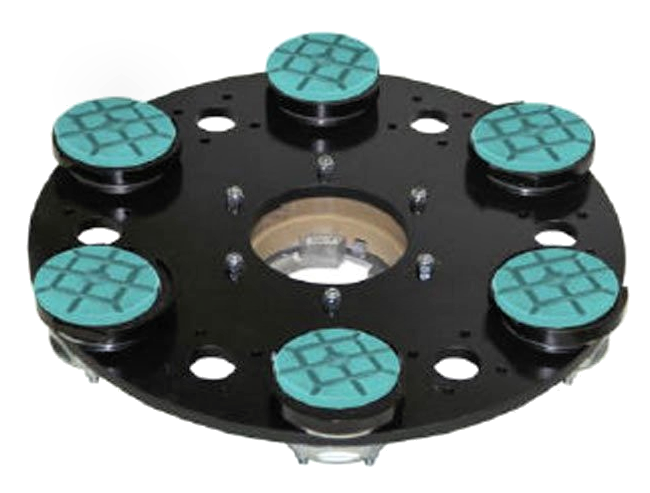

Diamond pads, shown below, are quickly changed without shop tools.

Related Diamonds	Price List
< Semi-Metal >	< Resins >

Transitional	Polishing
3" Hook'n Loop Diamonds --- To order, click on blue links
