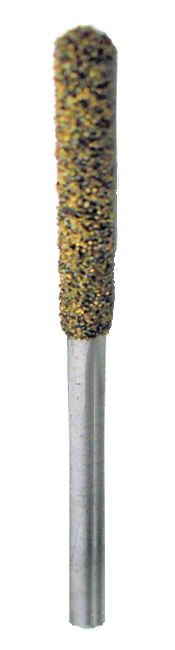

Diamond Glitter Bits for grinding mortar joints, intricate areas.

Diamond Glitter Bits

Tuck Point Grinding Bits:

Detailed precision grinding of concrete, mortar, granite, marble

Finishes what a diamond blade cannot:

completes the 90° mortar removal around a brick

grinds inside wall corners (vertical & horizontal), recessed mortar joints (brick and stone walls), window & door brick returns, etc.

Price List

3 Sizes

1/8 x 3"
1/4 x 3.5"
1/4" x 4-5/8"

Glitter Bits

Grind Hard "S" Mortar, Even Granite

APPLICATIONS:

Grind brick mortar joints - vertical, horizontal, inside corners, window & door brick returns

Individual brick removal
Recessed, Hard-to-Reach Areas ~ Detailed, Precision Grinding
Finishes what a diamond blade can't ~ prevents over cuts into the adjacent material
Complete the 90° corner around a brick.

Video: Glitter Bit grinding hard 'S' mortar with dust control.

Video: Glitter bit grinding hard, 'S' mortar from a load bearing, block wall with dust control.

d
sd

* IMPORTANT - for use in variable speed die grinders at 8000 - 10,000 RPM. For safety, Glitter Bits cannot exceed 10,000 RPM.

Variable Speed Die Grinder, Dust Controller

Related Products - see below or click here.

SIZE			PART#	PRICE
Shank Dia.	Diamond Width	Length
1/8"	5/32"	3"	75533	$32.00
1/4"	5/16"	3-1/2"	75578	$38.00
1/4"	5/16"	4-5/8"	75581	$59.00

* Individual Brick Removal: Step 1: use a diamond blade to cut what you can Step 2: complete the individual brick removal with the 4-5/8" Glitter Bit - see pics, below.

Glitter Bits - Description & How To Use

Fast, precise removal of hard mortar - head joints, inside wall corners

Individual brick removal, hard-to-reach areas, granite counter tops

Mortar around window and door brick returns, etc.

CAUTION / IMPORTANT: For use in a variable speed die grinder whose RPM's do not to exceed 10,000. The RPM speed of a one speed die grinder exceeds 20,000 RPM. Our recommended die grinder is the Makita variable speed, model GD0800C (shown below.)
Dust Controller (attached to die grinder, left photo) - an important component for 3-reasons:

dust exposure is reduced

grinding speed increases

life of Glitter Bit increases.

While a Glitter Bit produces 1/10 the airborne dust compared to a diamond blade and angle grinder, the other 90% will lay in the mortar joint. Re-grinding the dust is detrimental to the speed and life of a Glitter Bit. To improve production, Glitter Bit life and worker safety, the Glitter Bit dust controller and a vacuum cleaner is recommended.

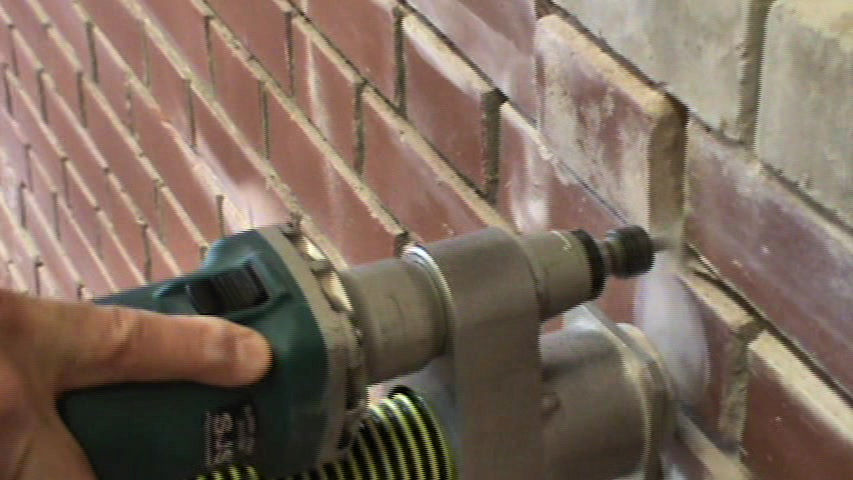

Grind Hard "S" Mortar, even Granite

Complete the 90° Cut-Out Around Bricks

Exceptional Life on Hard Mortar
Very Fast Grinding on Soft Mortar

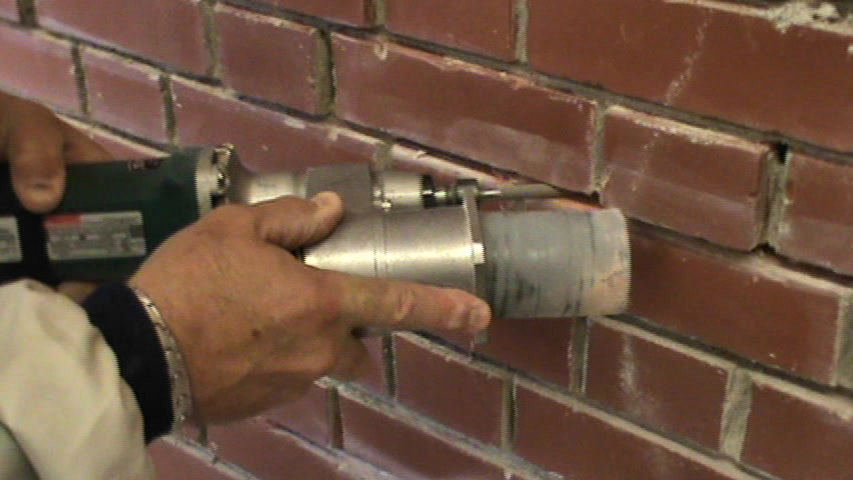

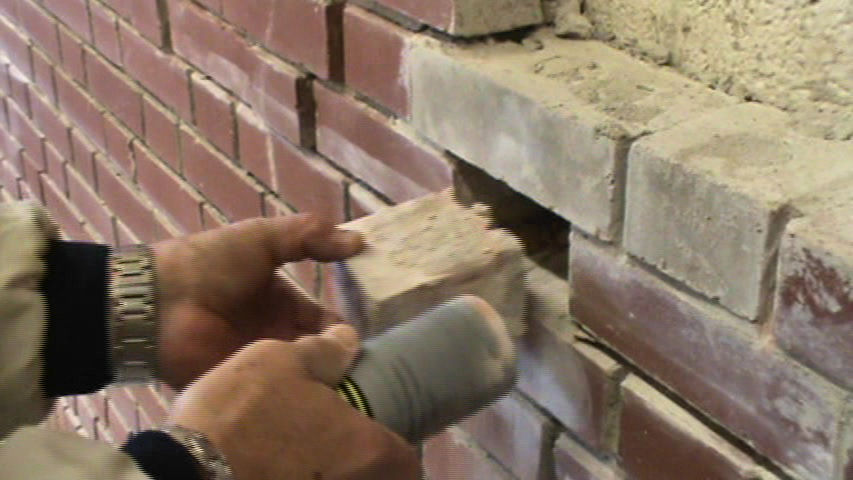

Single Brick Removal with 4-5/8" Glitter Bits

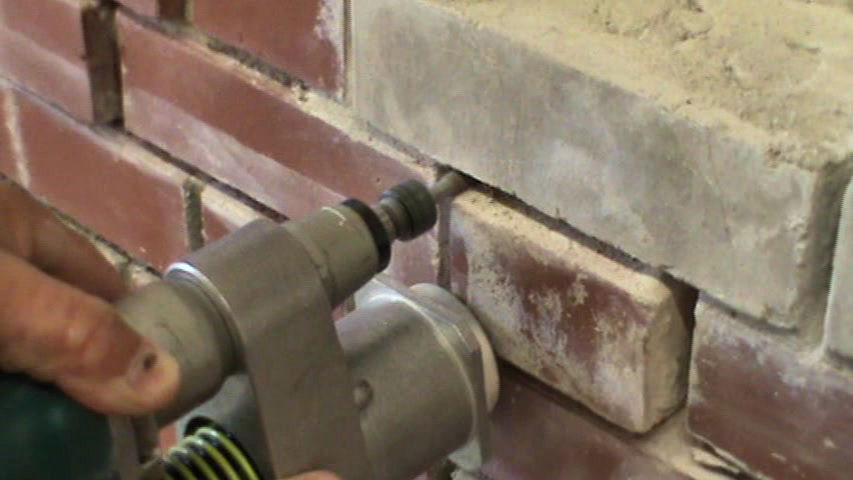

Single Brick Removal w/ Dust and Debris Control

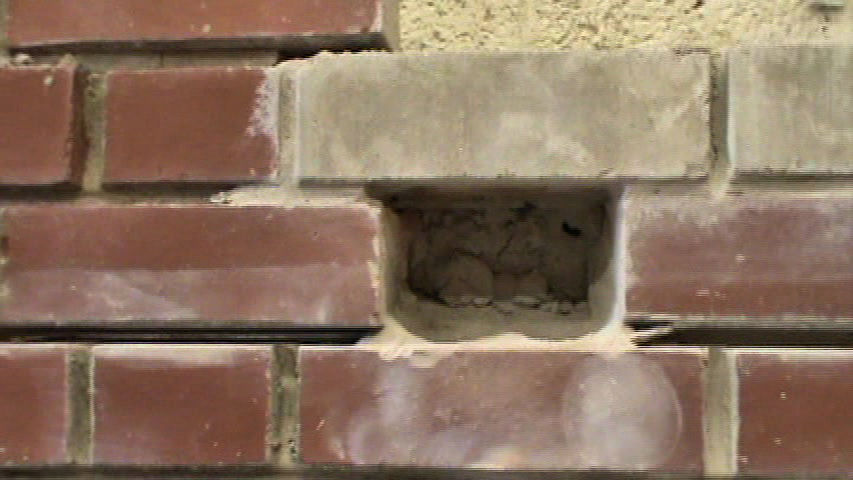

Individual Brick Removal without Over-cuts into Adjacent Bricks

Related Products

Glitter Bit
Dust Controller Variable Speed
Die Grinder Collets Oscillating Diamond Blades

$119.00

#GB112

Dust Controller shown attached to Makita die grinder (grinder sold separately.)

Includes a soft vinyl hose cuff for use with a 1-1/2" diameter vacuum hose. The GB112 Dust Controller fits the following die grinders (may fit others): Makita GDO800C, Metabo GE700.
$289.00

#GDO800C

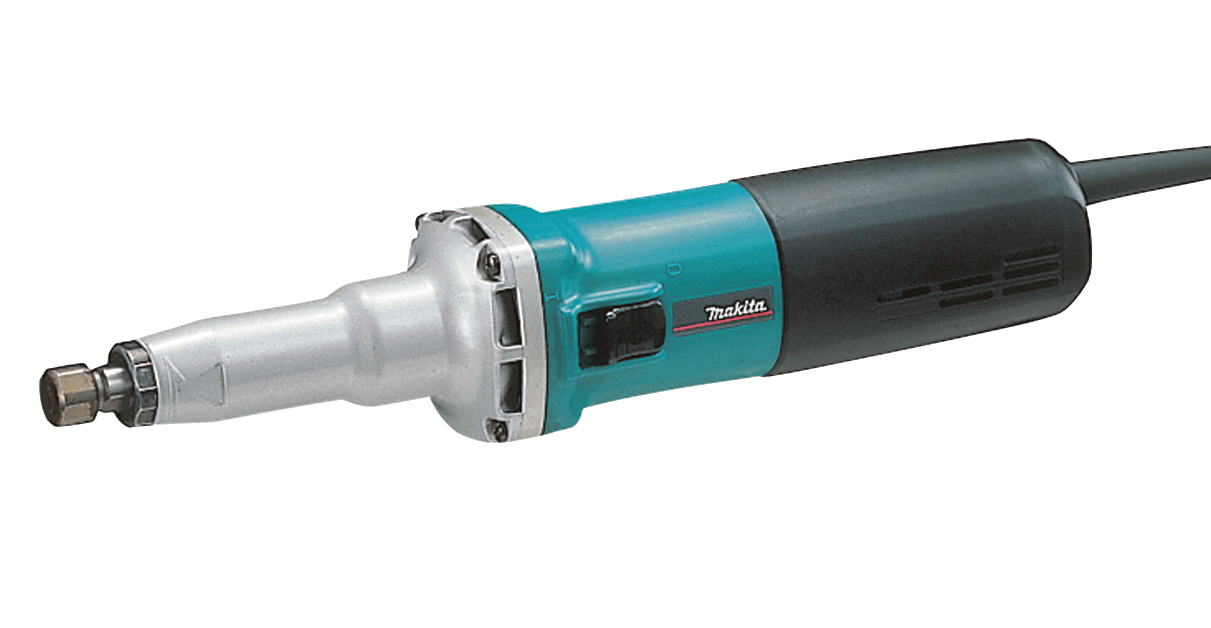

GDO800C Makita Die Grinder: 6.6 Amp, 7000 - 28000 RPM, 14-5/8" OAL, 3.7 lbs., includes 1/4" collet and flange nut.
Holds 1/8"
Glitter Bits
$39.99

Holds 1/4"
Glitter Bits
$29.99

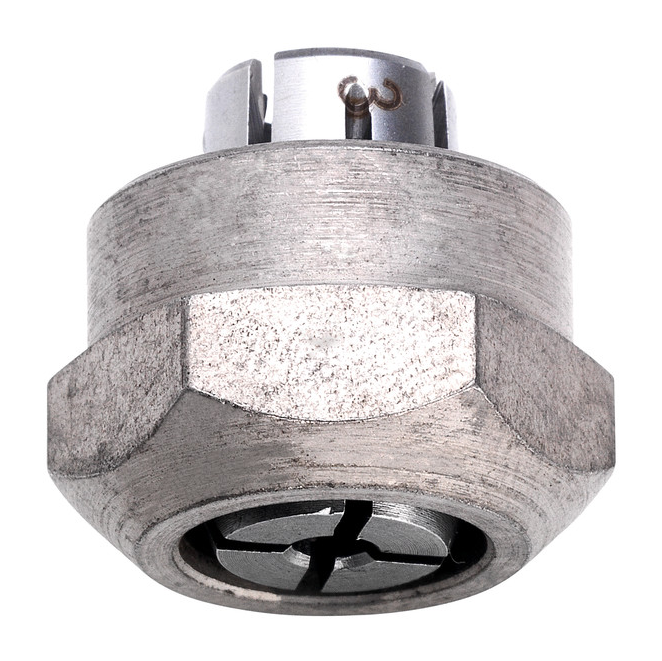

Replacement collets to hold Glitter Bits.

Fein Super Cut and Multi Tool Arbors
A+ for use on thin mortar joints (butter joints) - 3/32" diamond grit.
< click here for info >

Multi-Tool Arbor

A+ for head joints, very thin mortar joints, brick removal -
> 4.25" plunge cut
> 1.25" front end
> less than 3/32" diamond grit.

< click here for info >
