SCANMASKIN 32 WORLD
SERIES
 RADIO-CONTROLLED
GRINDING MACHINE
Gives the operator easier control
of the grinding speed and drive wheels, and it offers ergonomic
work for the user. It contributes to a minimal load and no
vibrations for the operator. Through the
"joystick" on the radio control the operator is
allowed to control with high precision in the direction and
speed the operator wishes. There is also the option of
maintaining the machine's grinding speed.

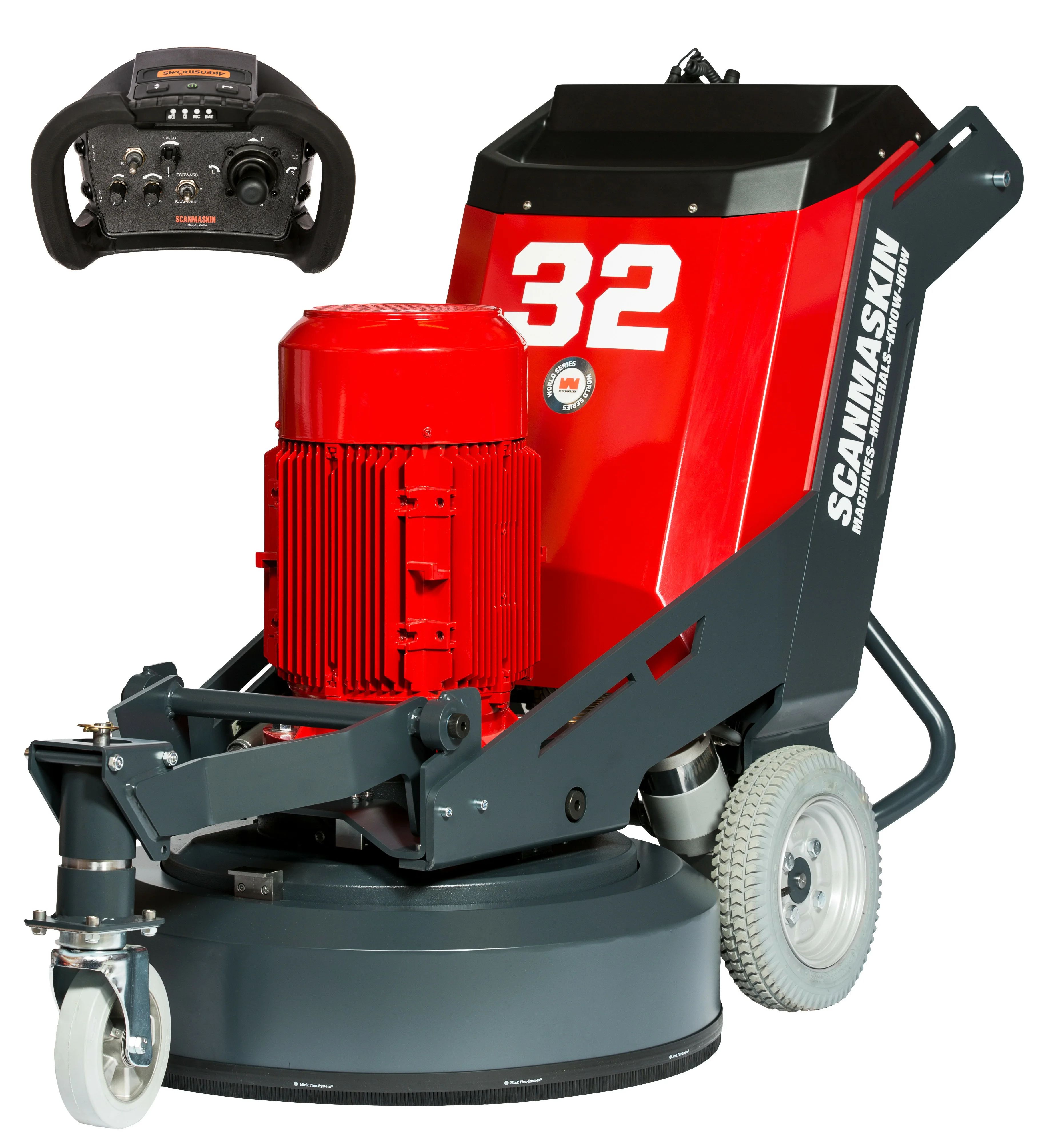

Scanmaskin 32 World Series RC is
also equipped with a display, which contributes to the operator
being able to follow in real-time how the tools are worn and
their lifetime.
The floor grinding machine
features cast alloy components along with a floating shroud,
designed for years of durability and dust-free operation.
Scanmaskin 32 World Series RC is equipped with a new tool head
for better balance and tool support. The machine also has
a new electrical cabinet with an improved cooling system.
The cooling system is sealed and protects the electrical
components against heat and dust. The wheels of Scanmaskin
28 World Series RC are 370 mm and can be quickly released, which
makes it easy for the operator to operate the floor grinding
machine manually.
The machine also come in a basic
version, without the display or remote control.
|
PRODUCT DESCRIPTION
- Radio-controlled (RC)
model with a joy-stick
- The operator can
easily control the speed
- Ergonomic with a
minimal load and no vibrations for the operator
- Equipped with a smart
display
- Service is easy –
loosen three screws to get access to the machine
house
- The wheels on the
machines are 370 mm and can quickly be released
- The cooling system is
sealed and protects the electrical components
against heat and dust.
WORLD
SERIES CLASS
Designed by  you for you
--- to
make your workday easier and less strenuous. Further
develops of the World Series Line includes:
- Robust cast planetary with
unmatched durability
- Simplistic design allows for
easy and quick repairs on common service items, allowing you to
get moving faster than ever
- Ergonomic
handle with two
adjustment points and 360° of rotation on the hand
grip. This also enables good hip support along with high
and low positions to accommodate any operator
- Wheels:
- Ergo solid wheels and larger
diameters for 40% less resistance when moving
the machine
- Front wheel is
detachable which reduces weight when removed and
its larger size improved ground clearance and makes
the machine easier to move
- When you
test the new World Series Edition make sure to drive it over
thresholds and obstacles, t he ease will surprise you.
|
|
PRICING
/ TECHNICAL SPECIFICATIONS
| Model |
World
Series 32" |
| Part
No |
5802023 |
5802024 |
5802025
REMOTE |
5802026
REMOTE |
| Price |
$21,829.00
|
$21,829.00
|
$44,389.00
|
$44,38900
|
| Voltage |
480V,
3-Phase |
230V,
3-Phase |
480V,
3-Phase |
230V,
3-Phase |
| Motor
Power |
20
HP, 20 Amp |
15
HP, 32 Amp |
20
HP, 20 Amp |
15
HP, 32 Amp |
| Grinding
Speed |
200
- 825 RPM |
| Grinding
Disc |
3
x 11" ---
Accepts 6 diamond
tools / disc |
| Grinding
Width |
32" |
| Weight |
1,212
lbs |
1,410
lbs |
| Grinding
Pressure |
809 lbs |
| Water
Tank |
5
gallon |
