Scanmaskin Floor Machines - Grinding / Polishing

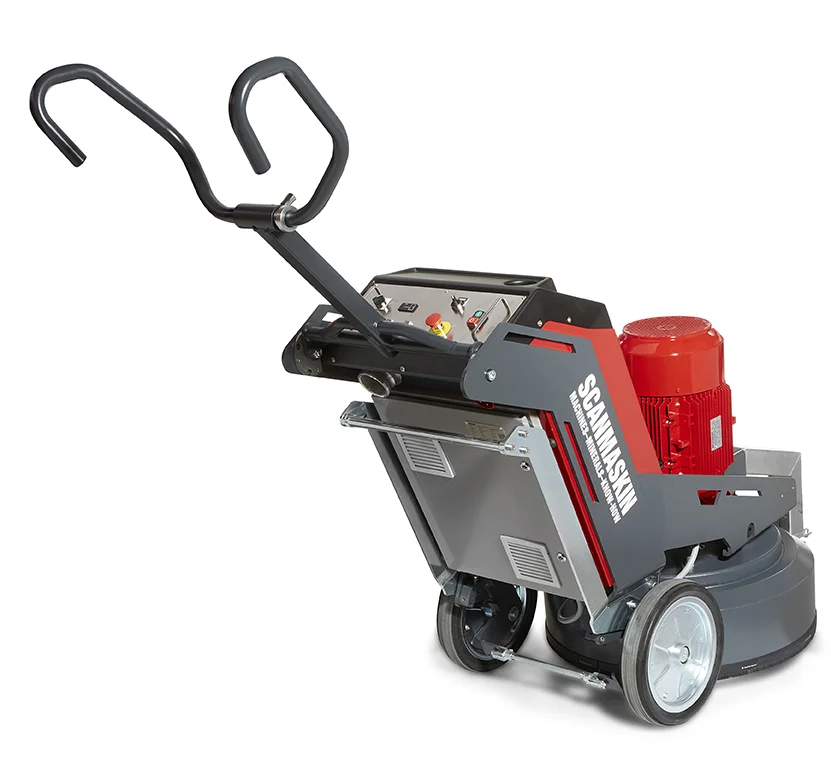

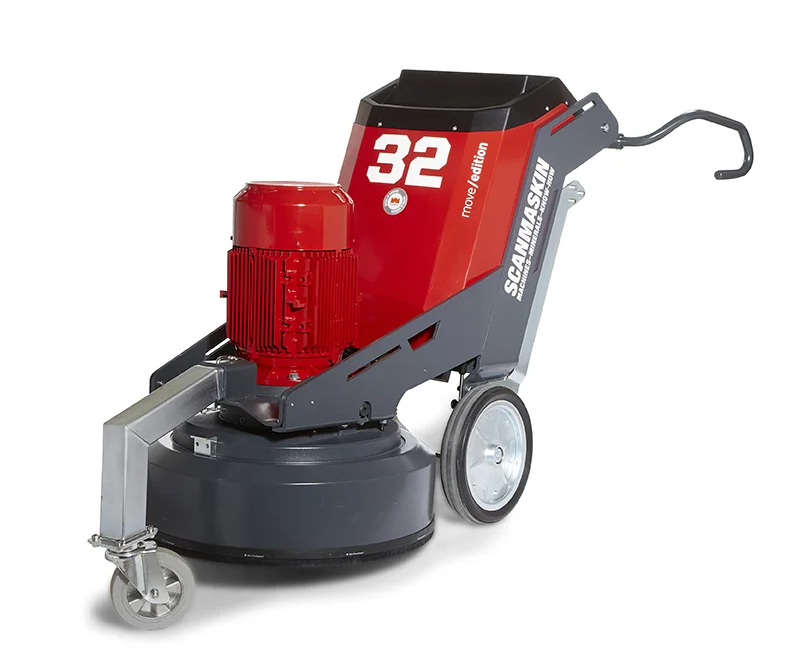

28" & 32" World Series Move Edition

SCANMASKIN'S MOST ERGONOMIC FLOOR GRINDERS

Scanmaskin - World Series Move Edition, 28" and 32"Designed by you for you --- to make your workday easier and less strenuous, without compromising performance.  The further development of the World Series Line which features a robust cast planetary with unmatched durability.  The simplistic design allows for easy and quick repairs on common service items, allowing you to get moving faster than ever.  The Scanmaskin 28 & 32 World Series Move Edition features a new handle with two adjustment points and 360 degrees of rotation on the hand grip.  This also enables good hip support along with high and low positions to accommodate any operator.

The new Move Edition motor weighs less without compromising performance.  Its weight is reduced by 50 lbs while offering the same power as before.  The detachable new front wheel also reduces weight when removed and gives an improved ground clearance and makes it easier to move.  With updated, ergo solid wheels and a larger diameter which provides up to 40% less resistance when moving the machine.







PRODUCT DESCRIPTION
A WORLD SERIES MACHINE

Enjoy the power of a World Series grinder, featuring the same robust cast planetary with unmatched durability. The simplistic design allows for easy and quick repairs on common service items, allowing you to get moving faster than ever.

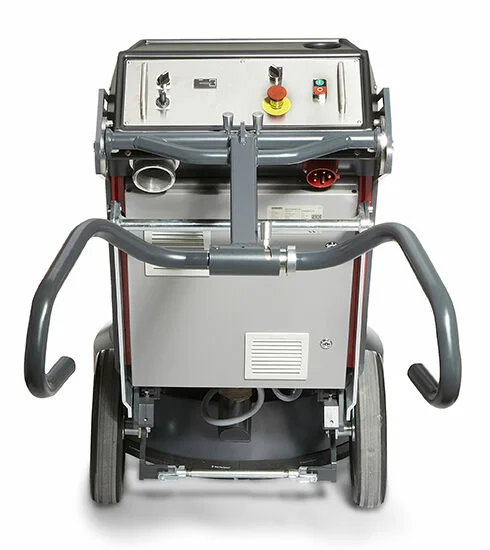

DON'T LET THE HANDLE CONTROL YOU

With two adjustment points and 360 degrees of rotation on the hand grip, the MOVE/EDITION handle allows you to always find the most comfortable position.  This includes hip support along with high and low positions to accommodate any operator.

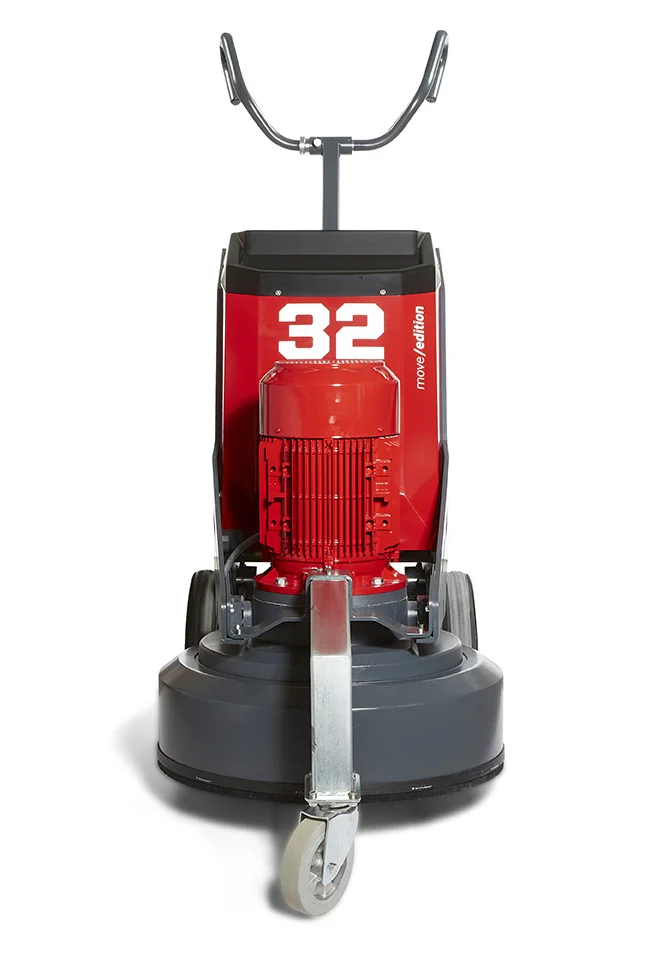

NEW MOTOR

The new MOVE/EDITION motor weighs less without compromising performance.  We've been able to reduce its weight by 50 lbs while offering the same power as before.

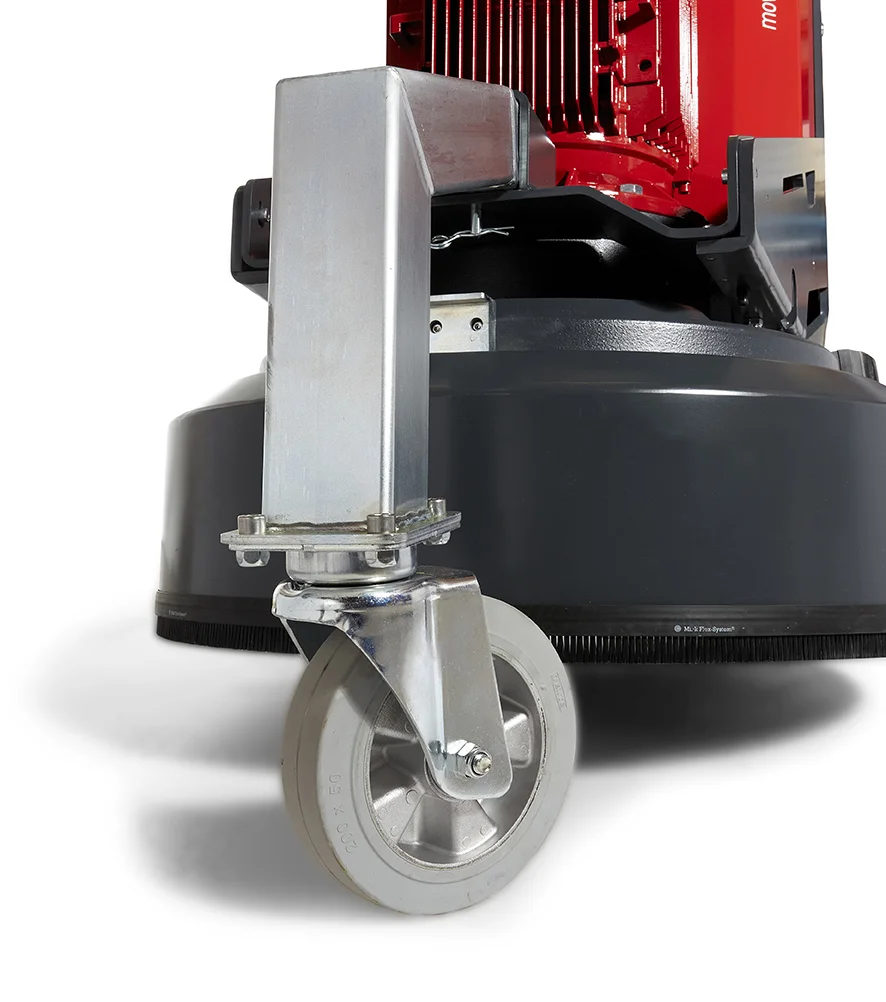

NEW ERGO WHEEL

The MOVE/EDITION solid wheels are larger in diameter, and provide up to 40% less resistance when moving the machine.  When you test the new MOVE/EDITION, make sure to drive it over thresholds and obstacles. T he ease will surprise you.


Scanmaskin World Series Edition Scanmaskin World Series Edition
Scanmaskin World Series Edition Scanmaskin World Series Edition
Scanmaskin World Series Edition Scanmaskin World Series Edition



TECHNICAL SPECIFICATIONS

Voltage 230V Dual Phase 1PH or 3PH / 230V or 480V, 3-Phaase
Motor Power 10 HP, 32 Amp / 20 or 32 Amp
Grinding Speed 200 - 825 RPM
Grinding Disc 3 x 11"
Grinding Width 28" & 32"
Weight 1212 lbs / 1256 lbs
Grinding Pressure 694 / 716 lbs
Water Tank 5 gallon



VIDEO

  • Video - Scanmaskin World Series Move Edition, 27 Seconds
