Coating Removal   >   Surface Prep   >   Floor Grinders.



Scanmaskin Floor Machines - Grinding / Polishing

26" Floor Grinder Propane

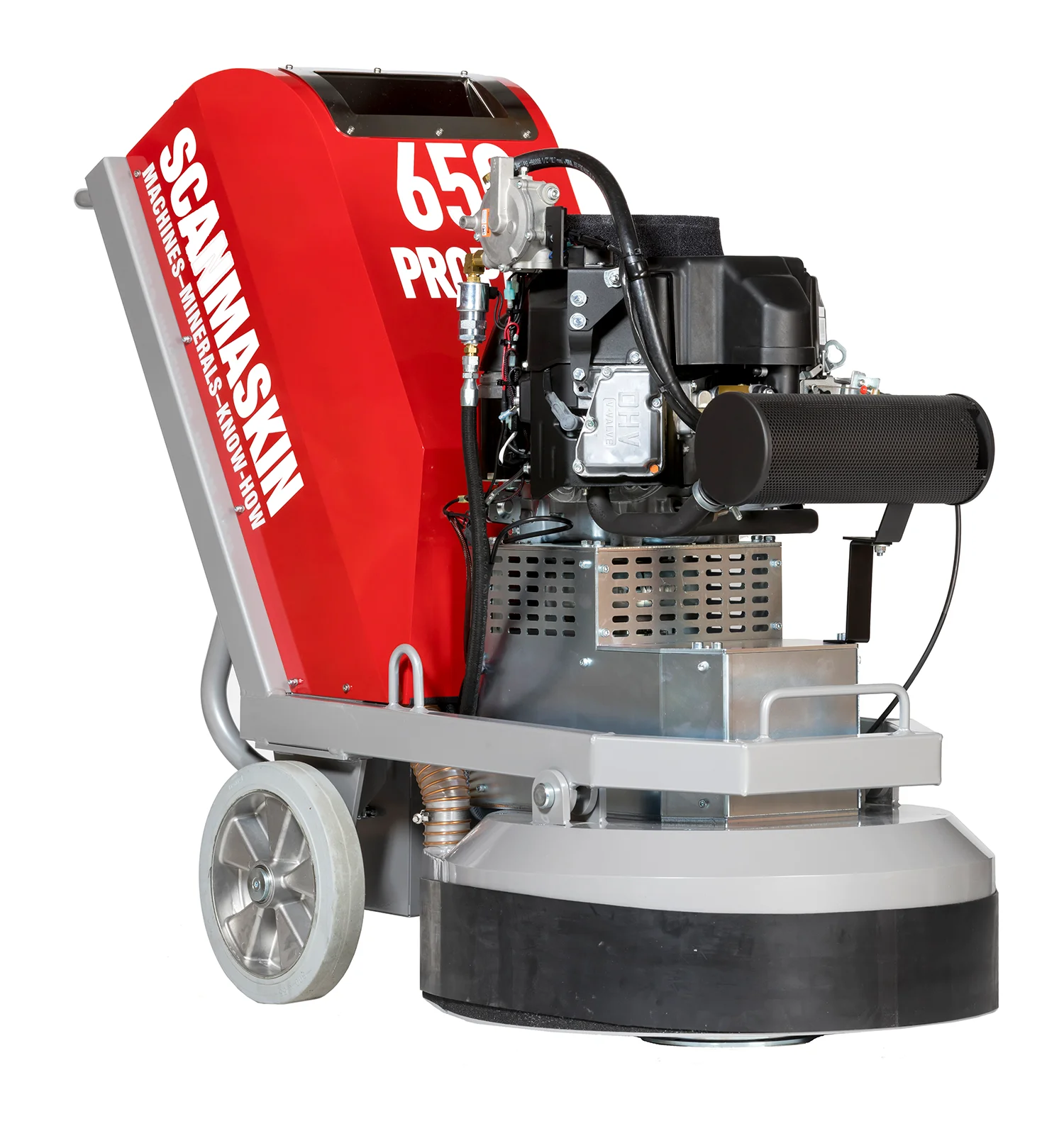

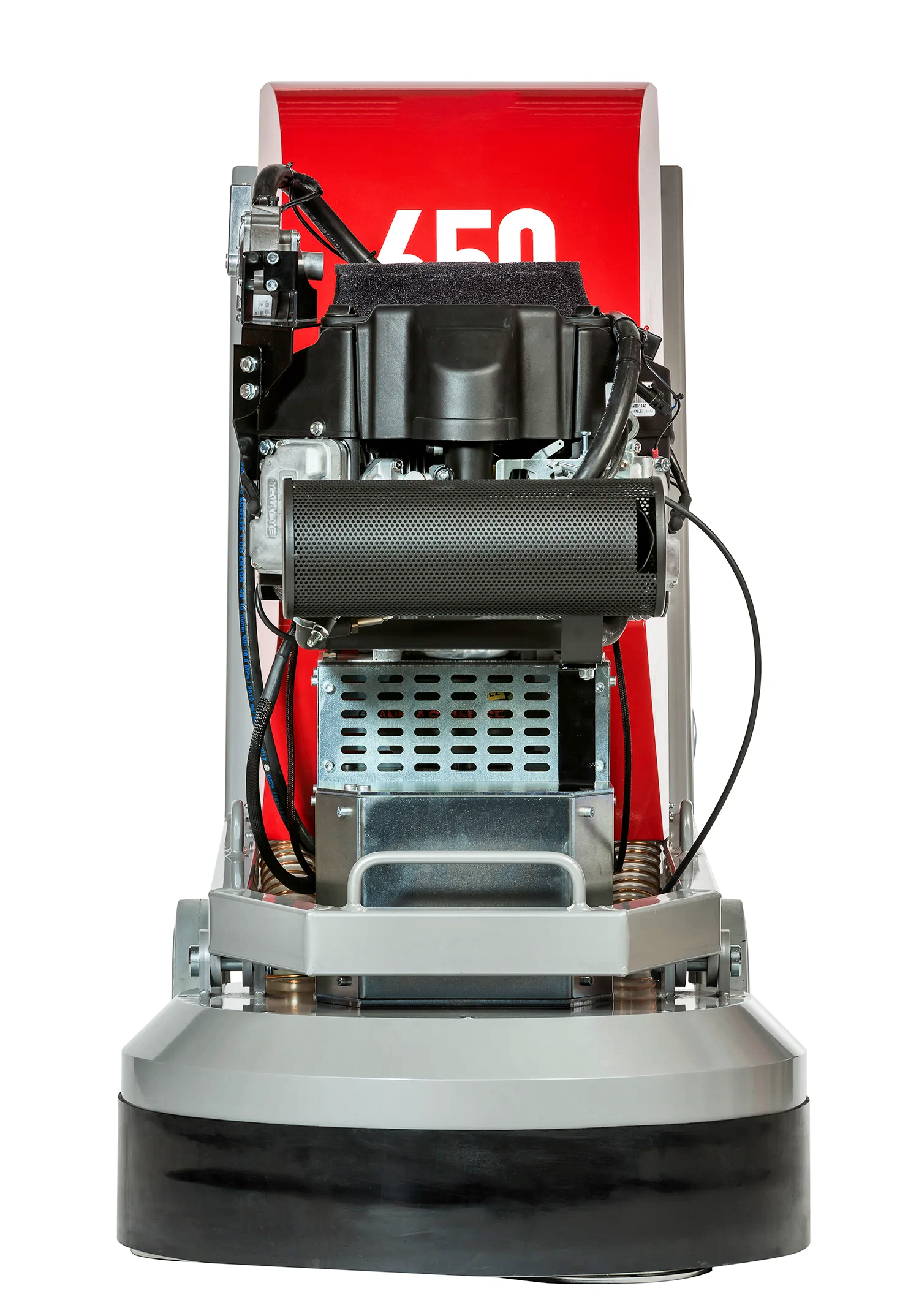

SCANMASKIN 650 PROPANE GRINDER

Scanmaskin 26" Floor Grinder - Propane #65026" GRINDING WIDTH

Powered by 100% propane to make it useful and very flexible to operate in virtually any environment where power options are limited (work area must be well ventilated or outside.)

Equipped with a 5 gallon water tank to provide a self-contained solution for wet grinding --- allows you to wet grind with no cables or hoses attached.  With its additional weight and motor power, the Scanmaskin 650 Propane is very powerful for its size yet efficient on fuel.

The Scanmaskin 650 Propane uses its patented planetary system to drive its three head drumS, which are powered by a double-sided cog belt and gear ring.  This design helps reduce the amount of stress and torque on the operator.





PRODUCT DESCRIPTION

ORDER / PRICE
TECHNICAL SPECIFICATIONS
PDF Sales BrochurePDF BROCHURE



PRODUCT DESCRIPTION

  • Propane-powered grinder for situations where electric power is not available
  • Heavy duty design for both residential and commercial applications

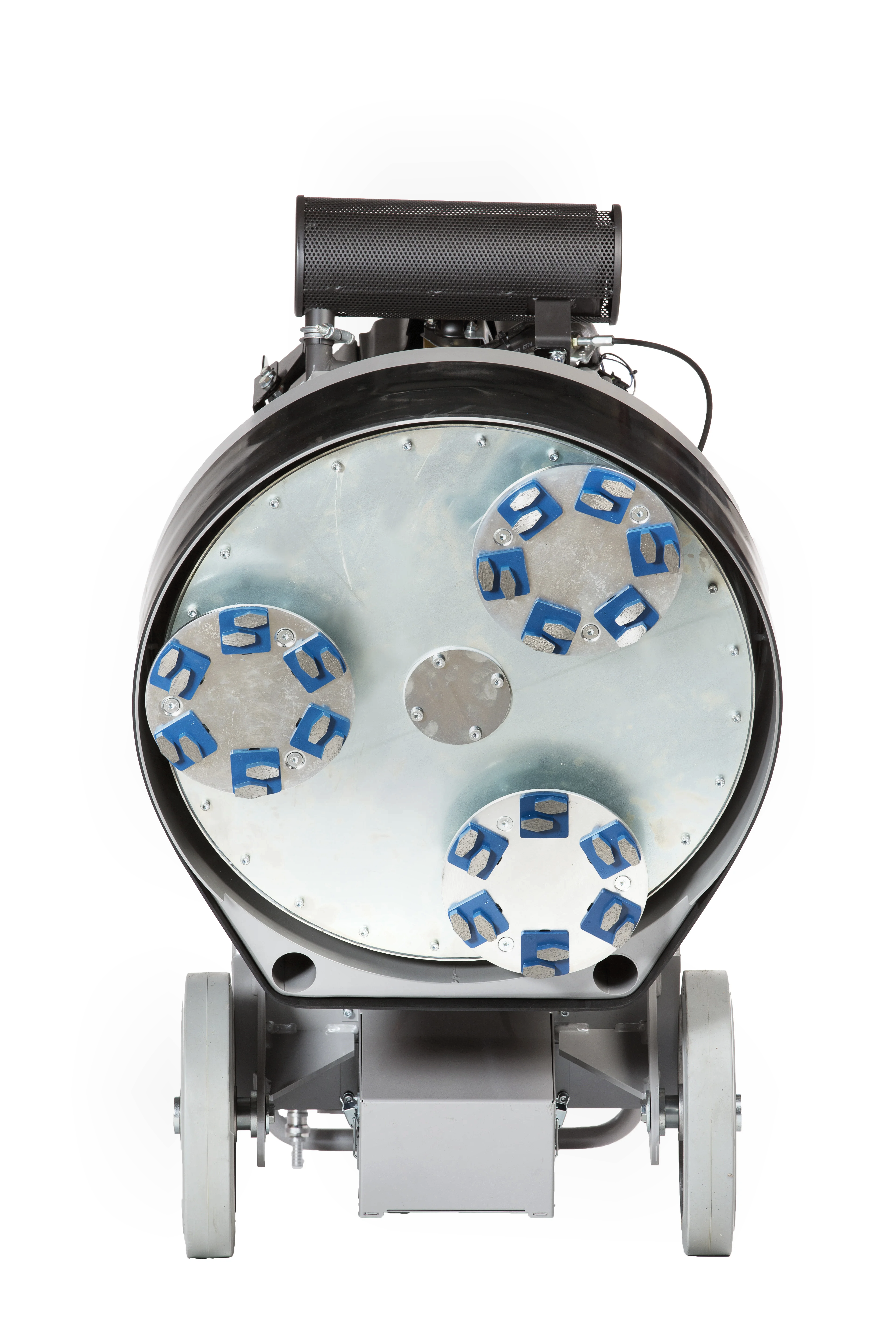

  • Patented planetary system to drive 3 heads
  • Double-sided clog belt and gear to help reduce torque and stress on the operator
  • Water connection for wet grinding
  • Industrial grade components designed for durability
  • Adjustable grinding pressure
  • Well-balanced tooling heads
  • Automatic safety system that monitors air oxygen levels with a longer service interval
  • Service-friendly design
  • 1 HP Kawasaki engine.

Scanmaskin 650 - 26" Floor Grinder, Propane Scanmaskin 650 - 26" Floor Grinder, Propane
Scanmaskin 650 - 26" Floor Grinder, Propane



PRICING  /  TECHNICAL SPECIFICATIONS

Model Planetary Floor Machine, 26" Propane
Part No 5802019
Price $19,929.00

Motor Kawasaki FX603
Motor Power 18 HP
Grinding Speed 600 - 960 RPM
Grinding Disc 3 x 8.5" --- Accepts 6 diamond tools / disc
Grinding Width 26"
Weight 842 lbs
Water Tank 5 gallon
