Coating Removal   >   Surface Prep   >   Floor Grinders.



Scanmaskin Floor Machines - Grinding / Polishing

20" Floor Machine

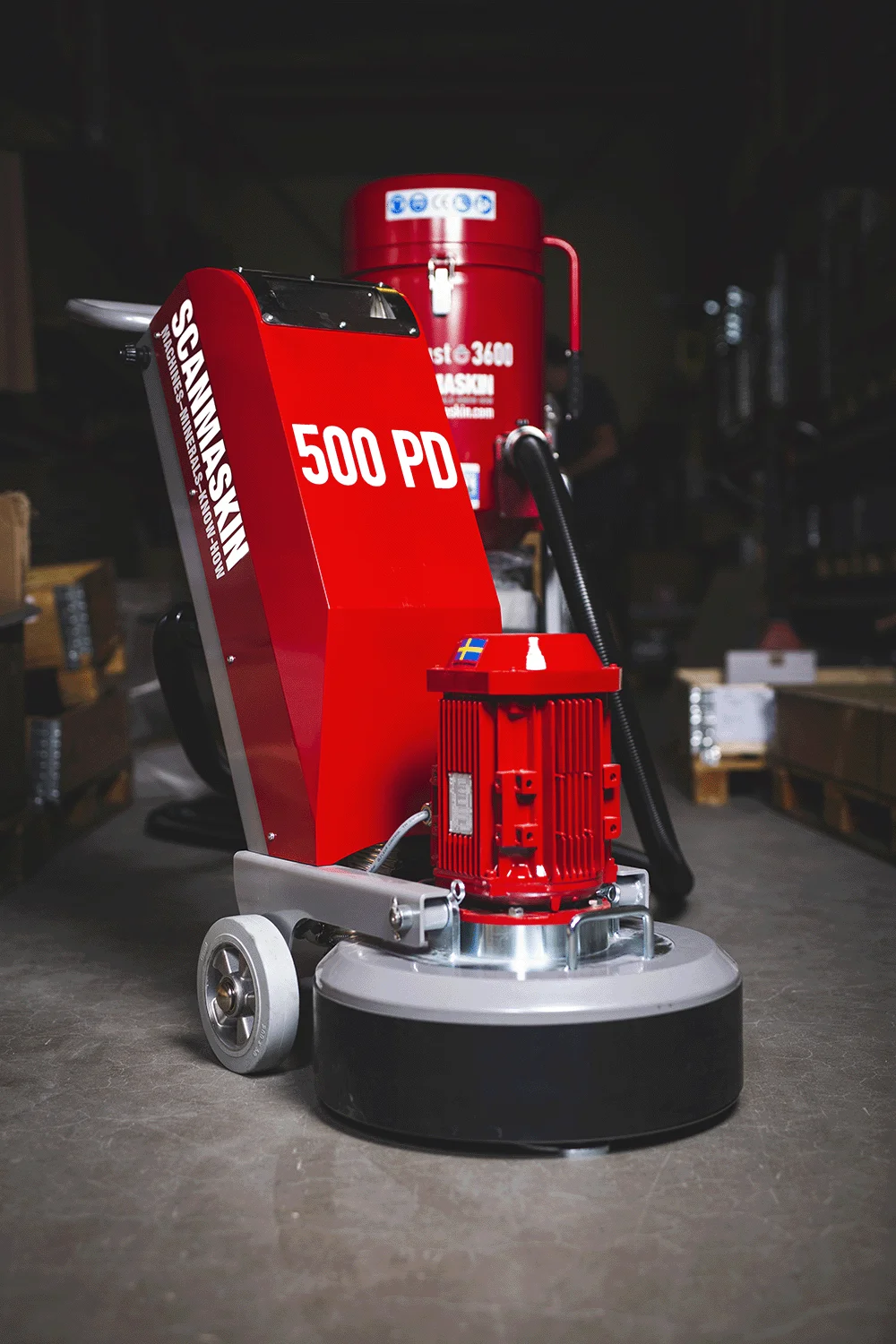

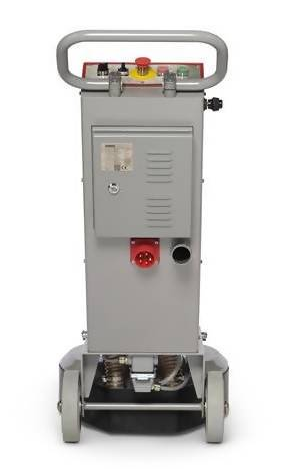

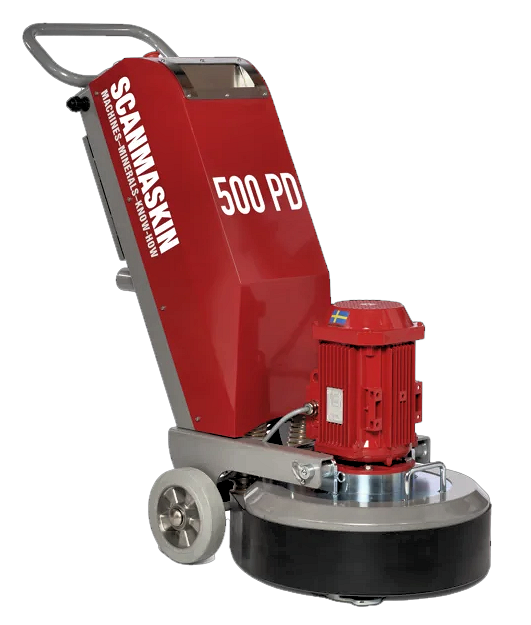

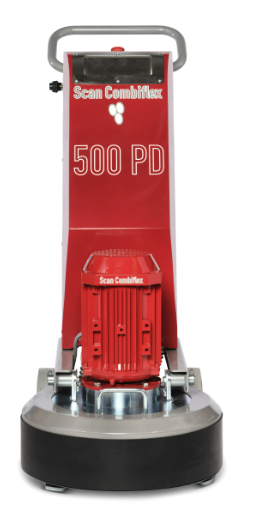

SCANMASKIN 500 PH - ELECTRIC GRINDER / POLISHER

WITH BUILT-IN WATER TANK FOR WET GRINDING

Scanmaskin 20" Floor Grinder, Model 500 PD.The built-in water tank eliminates the problem for an external water supply.  A efficient and strong floor grinding machine for grinding concrete, stone and terrazzo.  Also used for renovating, removing coatings and remove impurities from the surface.

A large variety of grind-, polish-, scratch tools and polishing pads are available for different surfaces and conditions.

The Scanmaskin 500 PD features 100% steel construction, along with the patented flex head system for reduced vibration and smooth operation on rough surfaces.  This construction gives a reliable floor grinding machine with minimal maintenance.  As standard, the Scanmaskin 500 PD is equipped with adjustable speed, this makes the grinding machine work very well on all types of surfaces, such as concrete, stone and terrazzo.





PRODUCT DESCRIPTION

ORDER / PRICE
TECHNICAL SPECIFICATIONS
PDF Sales BrochurePDF BROCHURE VIDEOS



PRODUCT DESCRIPTION

  • Equipped with a built-in water tank for wet grinding – 5.0 US gallon
  • Efficient and strong machine for use when grinding concrete, stone and terrazzo
  • Scanmaskin Weight PlatesAdjustable speed
  • 100% steel construction

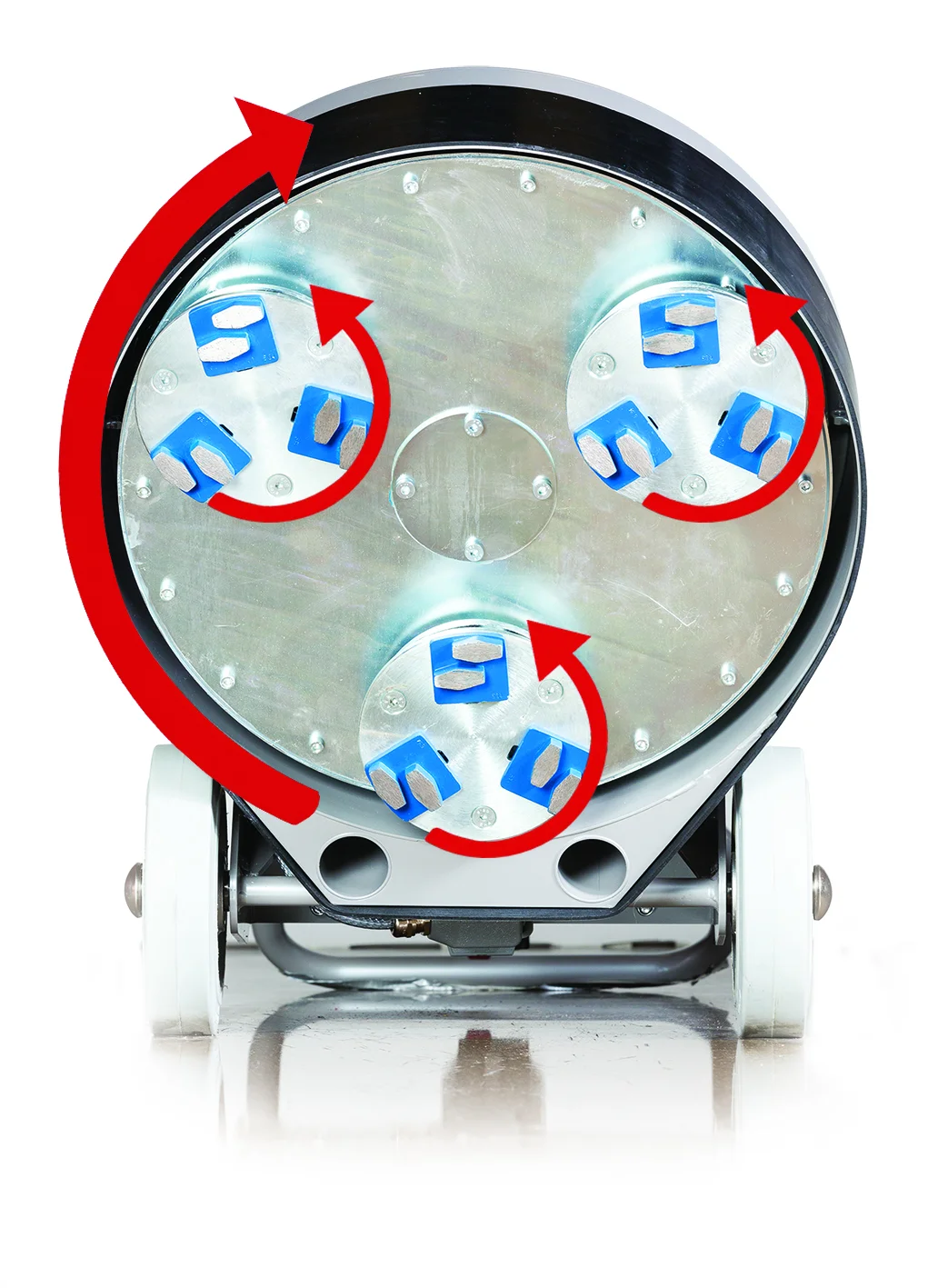

  • Scanmaskin patented flex head system for reduced vibration and smooth operation on rough surfaces

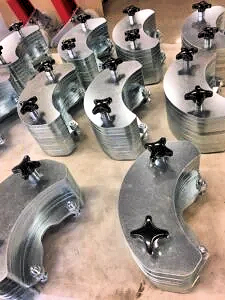

  • Weight package available for extra grinding pressure, 50 lbs.

Scanmaskin 500 PD - 20" Floor Grinder Scanmaskin 500 PD - 20" Floor Grinder
Scanmaskin 500 PD - 20" Floor Grinder Scanmaskin 500 PD - 20" Floor Grinder



PRICING  /  TECHNICAL SPECIFICATIONS

Model Planetary Floor Machine, 20"
Part No 5802037 5802017
Price $11,879.00

$11,669.00

Voltage 230V, 1-Phase 480V, 3-Phase
Motor Power 6.5 HP, 30 Amp 6.5 HP, 16 Amp
Grinding Speed 250 - 1,150 RPM
Grinding Disc 3 x 6.5" --- Accepts 6 diamond tools / disc
Grinding Width 20"
Weight 403 lbs
Grinding Pressure 242 lbs
Water Tank 5 gallon



VIDEOS

Video - Scanmaskin 20" Planetary Floor Machine, #500 PD, :55 Seconds Video - Scanmaskin 20" Planetary Floor Machine, #500 PD, :27 Seconds
Video - Scanmaskin 20" Planetary Floor Machine, #500 PD, :18 Seconds
