Coating Removal   >   Surface Prep   >   Floor Grinders.



Scanmaskin Floor Machines - Grinding / Polishing

13" Grinder / Edger

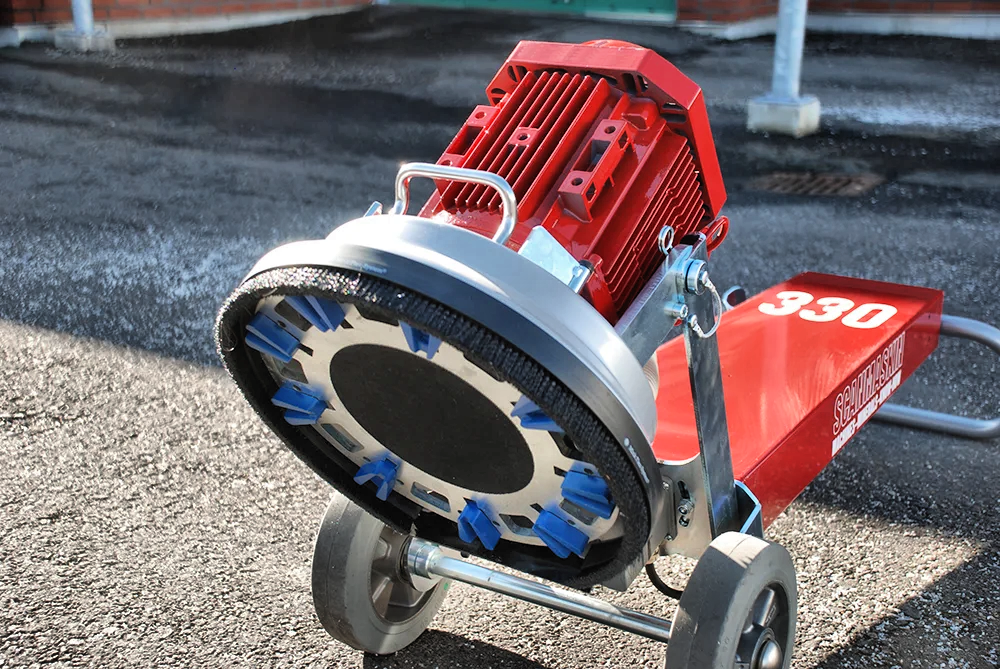

SCANMASKIN 13" ELECTRIC GRINDER / EDGER

Scanmaskin 13" Grinder / EdgerPOWERFUL, EASY-TO-USE, VERSATILE

The Scanmaskin 13" inch single grinding disc is effective for grinding smaller areas, edging long stretches of the floor, light coating removal and surface prep.  A simple and quick adjustment allows the operator to change the configuration of the Scanmaskin 330 from a small grinder into an edger (both left and right sides), with the entire process taking less than one minute.

The machine can be used with 3, 6, or 9 of our metal, ceramic, or resin bond diamond tools.  This allows the grinder to cut more aggressively when necessary, or grind softer surfaces by spreading out the weight and using more tools.  Additionally, the 330 RS is equipped with variable speed to further enhance performance and results.

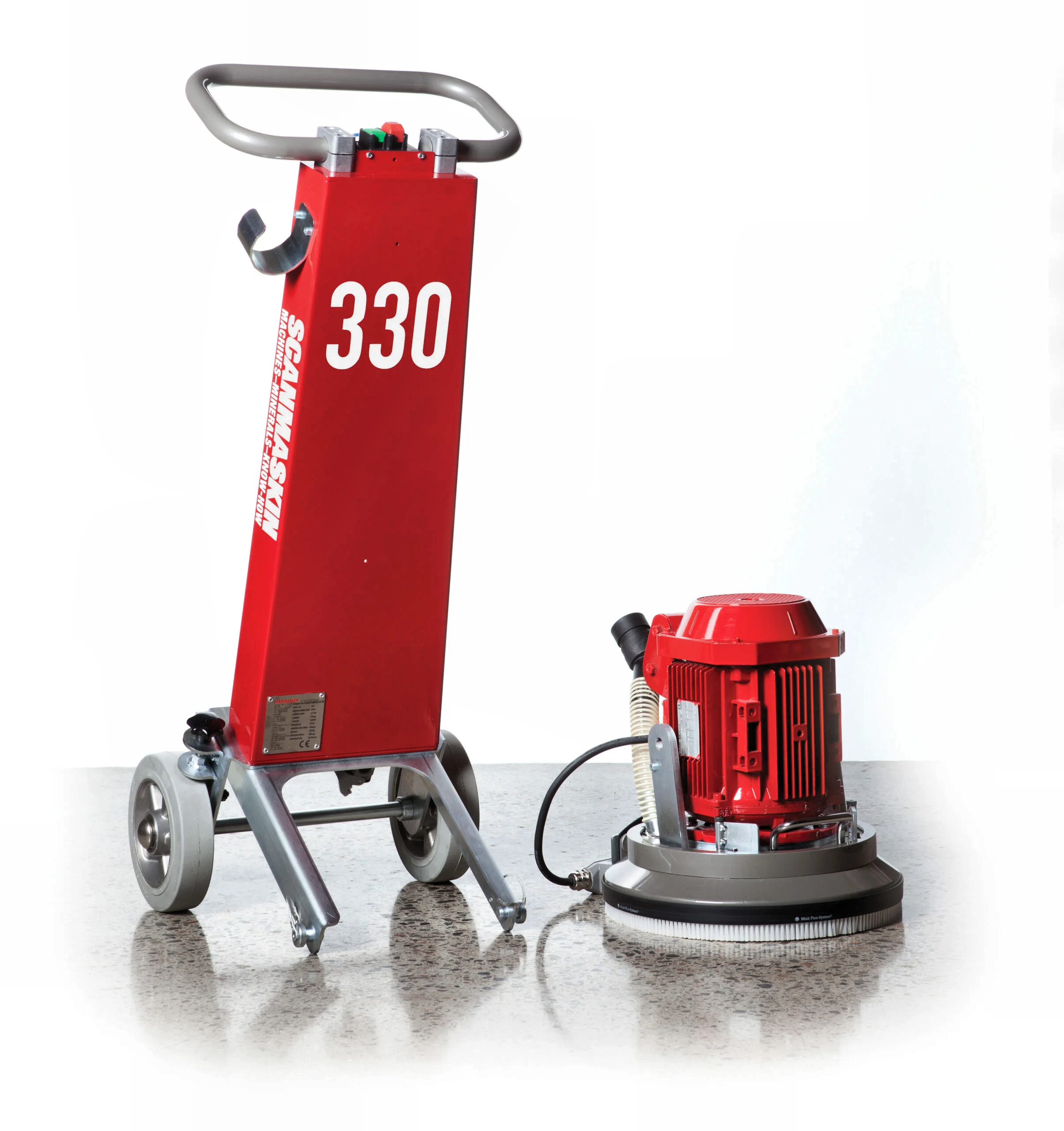

For smooth and simple transport, the Scanmaskin 330 can easily be separated into two parts, each weighing well under 100 lbs.  And the 32 lb weight kit is included!





PRODUCT DESCRIPTION

ORDER / PRICE
TECHNICAL SPECIFICATIONS
PDF Sales BrochurePDF BROCHURE VIDEOS



PRODUCT DESCRIPTION

  • A powerful and easy-to-use floor grinding machine
  • Equipped with adjustable speed
  • Single, 13" grinding plate
  • Simple and quick adjustment takes it from a grinder to an edger (either side, left or right - see video)
  • For smooth and simple transporting, the machine easily separates into two parts
  • Weight included, 31 lbs.

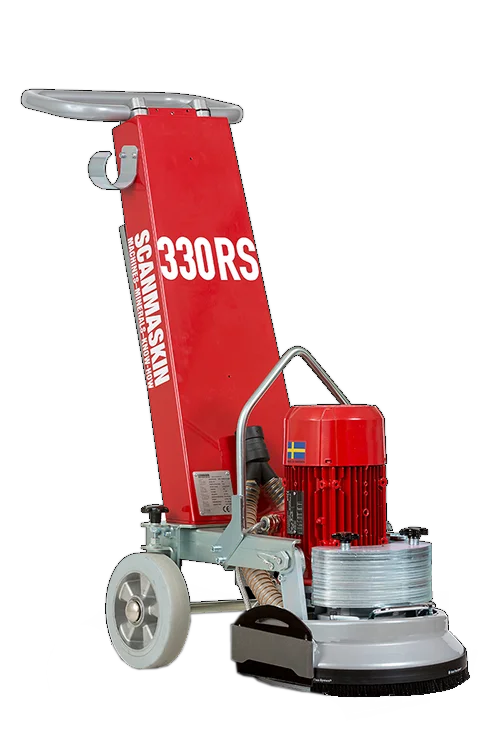

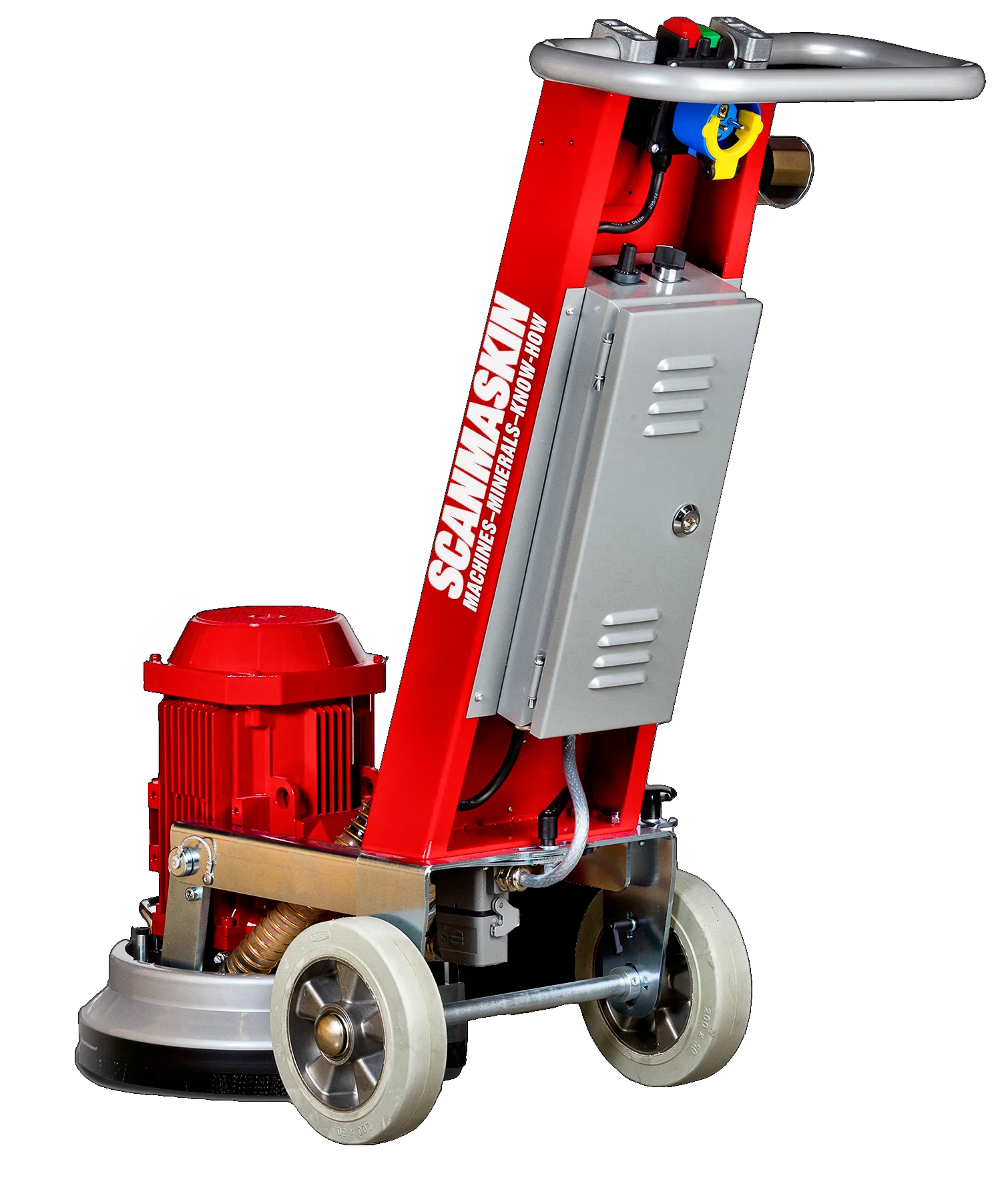

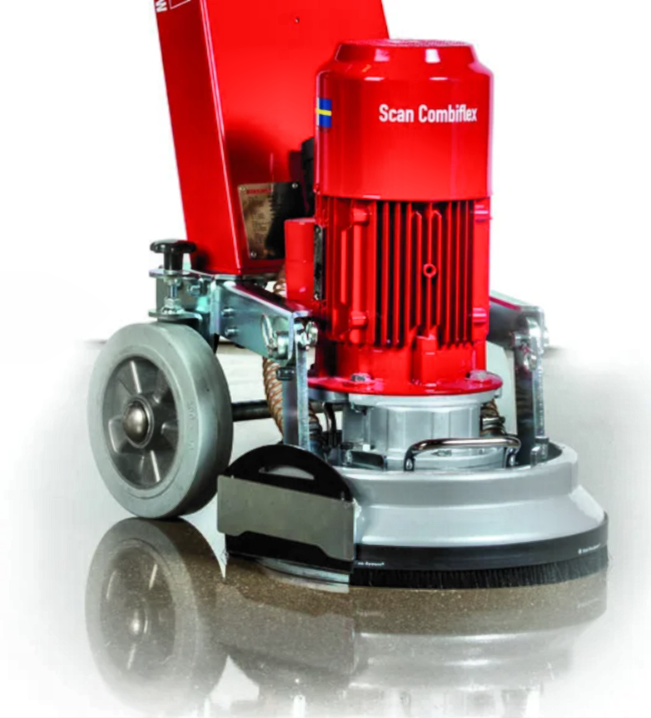

Scanmaskin 330 RS 13" Grinder / Edger Scanmaskin 330 RS 13" Grinder / Edger
Scanmaskin 330 RS 13" Grinder / Edger Scanmaskin 330 RS 13" Grinder / Edger



PRICING  /  TECHNICAL SPECIFICATIONS

Model Grinder / Edger Floor Machine, 13"
Part No 5802013 5802014
Price $5,390.00

$5,390.00

Voltage 120V, 1-Phase 230V, 1-Phase
Motor Power 1.4 HP, 15 Amp 3.0 HP, 12 Amp
Grinding Speed 200 - 500 RPM
Grinding Disc 1 x 13" --- Accepts 3, 6 or 9 diamond tools / disc
Grinding Width 13"
Weight 186 lbs



VIDEOS

  • Video - Scanmaskin 13" Direct Drive Grinder / Edger, #330 RS, :52 Seconds
  • Video - Scanmaskin 13" Direct Drive Grinder / Edger, #330 RS, :21 Seconds
  • Video - Scanmaskin 13" Direct Drive Grinder / Edger, #330 RS, :17 Seconds
  • Video - Scanmaskin 13" Direct Drive Grinder / Edger, #330 RS, :52 Seconds



 Related Products

Diamond Tooling
Grinding Coating Removal Transitional  Polishing
Scanmaskin - Diamond Tooling Scanmaskin - PCD Tooling Diamond Driver Plate Tooling - semi-metal & resin pads. Diamond Polishing Pads for Floor Machines.

Dust Extractors
120 Volt 120 Volt 120 / 230 Volt  230 / 480 Volt
Pearl - Reverse Pulse Dust Extractors, 3 Models 300 CFM Silica Dust Extractor - HEPA Cyclone 353 CFM HEPA Dust Extractor - 120 & 230 Volt 460 CFM HEPA Dust Extractor - 230 & 480 Volt
258 & 285 CFM 300 CFM 353 CFM  460 CFM
