Werner Fall Protection - Compliance Kits, complete with Harness, Lanyard, Carrying Bag.

Confided Space

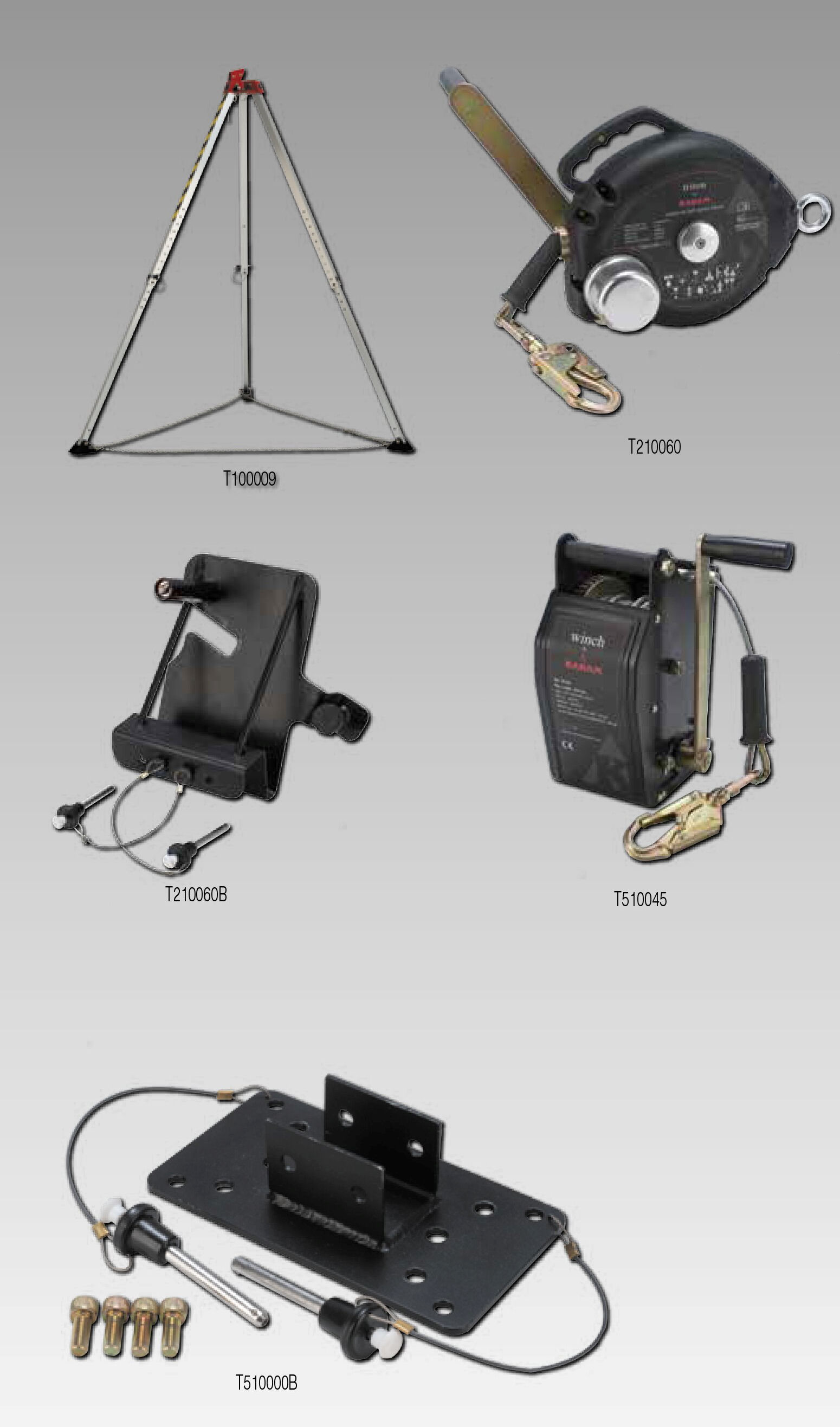

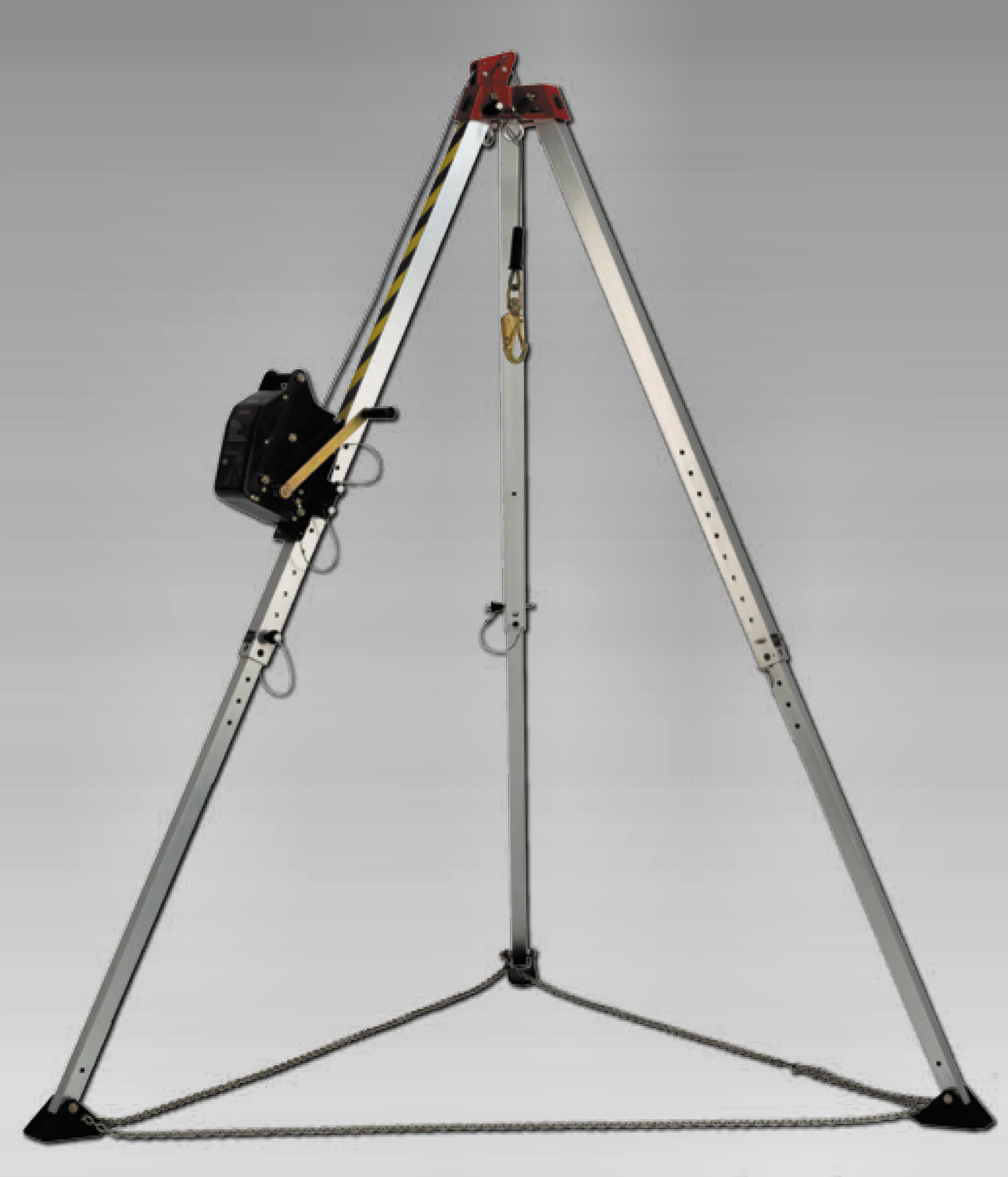

--- Tripod System ---

Brochure

ACCESSORY	DESCRIPTION

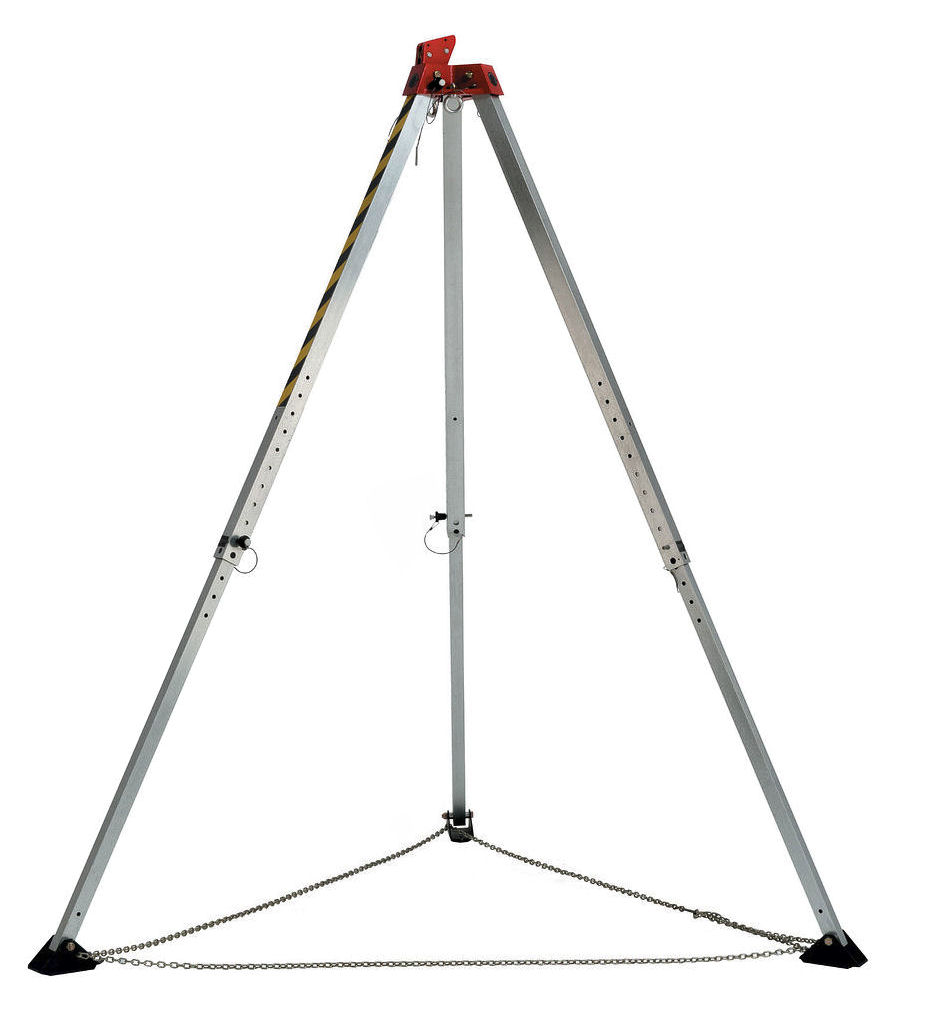

	7' Aluminum Tripod High strength aluminum tripod allows for lifting and lowering of personnel and materials into confined spaces from above. Lightweight design allows for quick installation and tear down. The Tripod extends from 70" - 84" in height and installs over openings up to 80" in diameter. The head of the Tripod includes two 5/8" forged steel eye bolts that are used for the direct connection of fall arrest and rescue subsystems. The aluminum feet on the tripod have rubber skid pads and a safety chain to help prevent the legs from spreading apart. Includes carry bag.	$x,xxx.xx T100009 #18884
Subsystem Components - see next

Werner Fall Protection - Confided Space Hoist

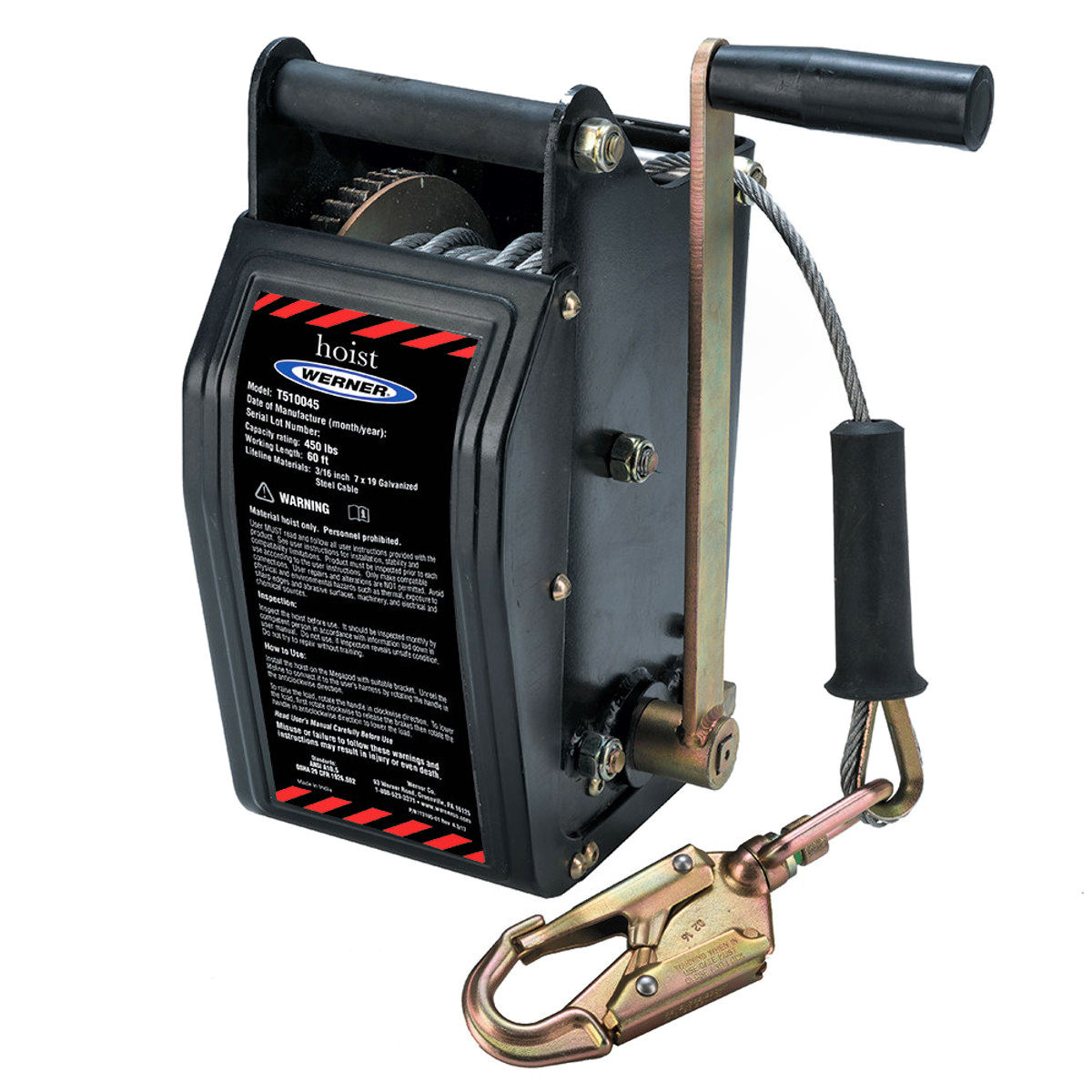

60' Material Hoist

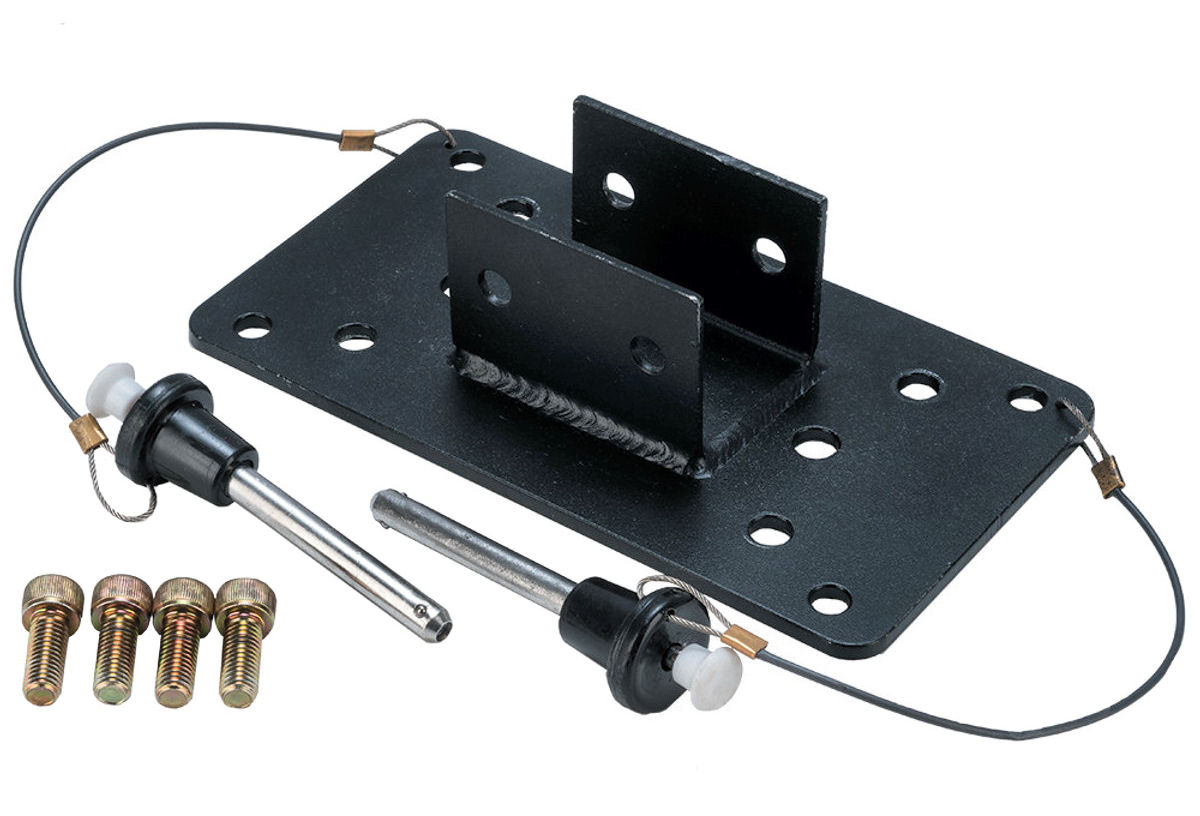

Capable of raising and lowering loads of up to 450 pounds. Equipped with 60 ‘ 3/16" diameter galvanized steel cable. Requires the T510000B bracket for mounting to the tripod.

$x,xxx.xx

T510045
#18894

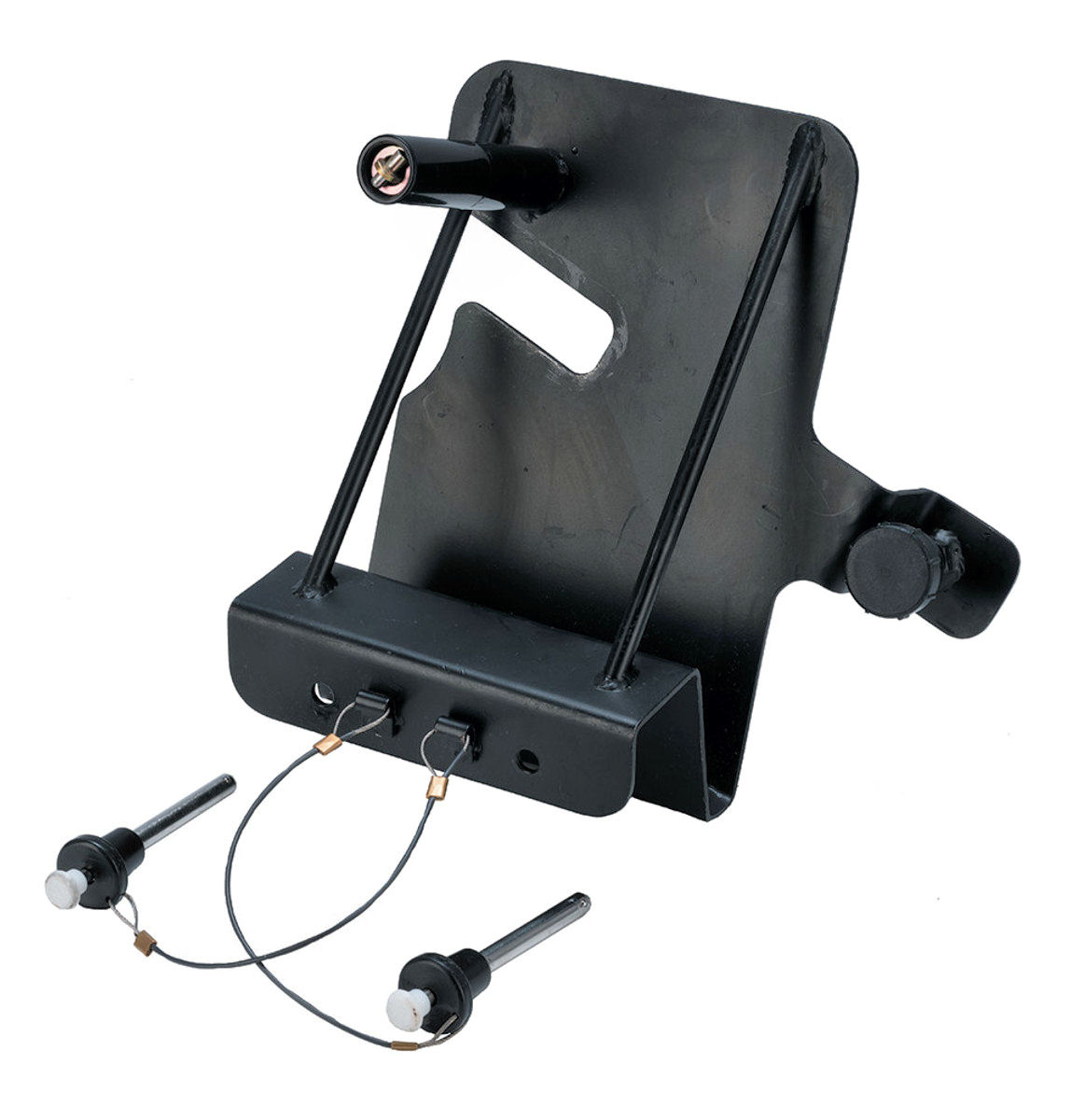

Mounting Bracket - for 60' Material Hoist

Attaches to any leg of the tripod, accepts the above 60' Material Hoist Winch #T510045.

$xxx.xx

T210060B
#18893

Werner Fall Protection - Confided Space Lifeline

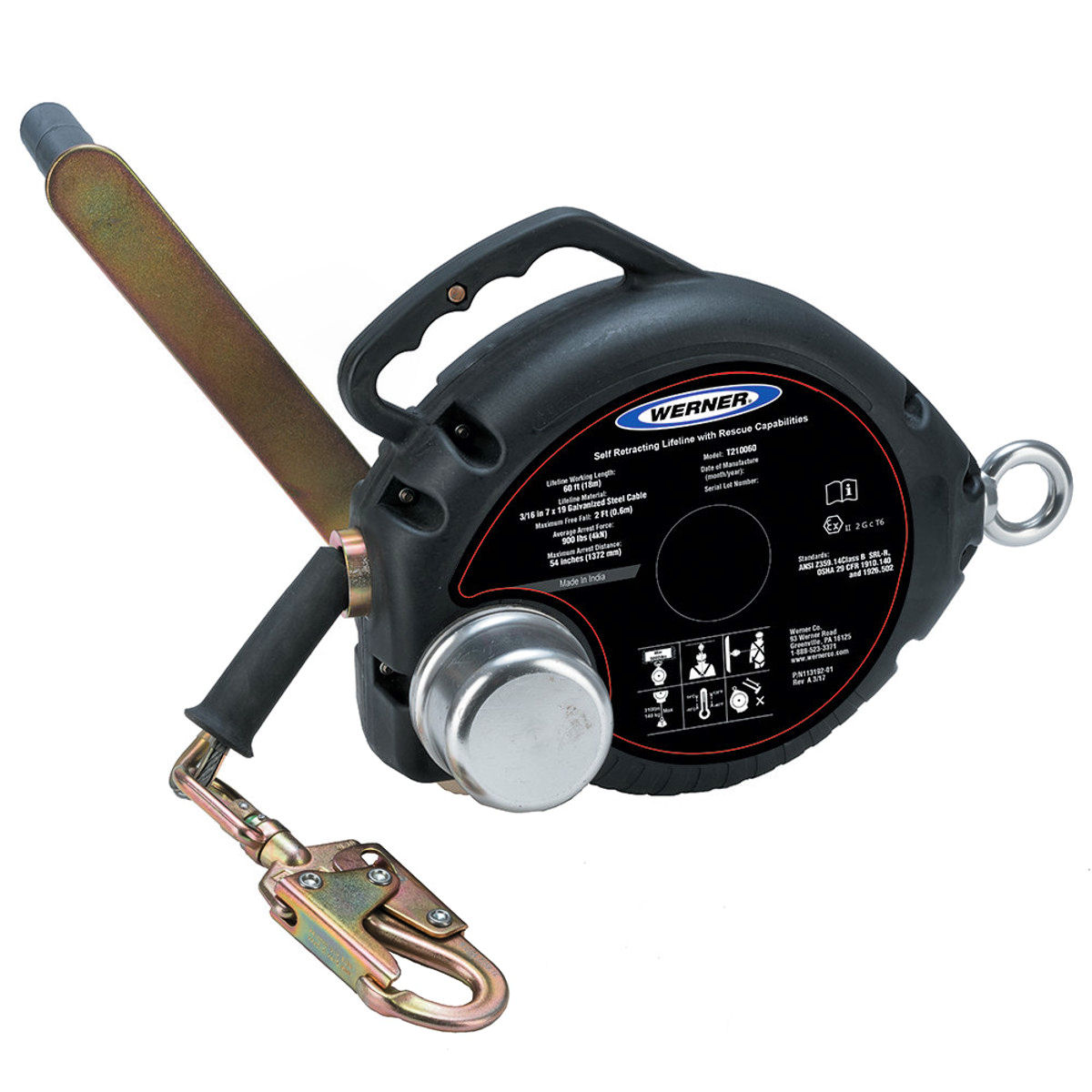

Self-Retracting Lifeline with Rescue Capability

Mounts to the leg of the tripod creating a quick and simple setup to allow personnel to vertically enter into a confined space. Designed for a single user with a capacity up to 310 pounds total working weight. 3'16" diameter galvanized steel cable x 60' length.

When tested to the requirements of the ANSI Z359.14 standard for Class B for SRLs, the 3-Way SRL-R has an average arrest force of less than 900 pounds and a maximum arrest distance of 54 inches.

$x,xxx.xx

T210060
#18892

Mounting Bracket - for Self-Retracting Lifeline

Attaches to any leg of the tripod, accepts the above Self-Retracting Lifeline #T210060.

$xxx.xx

T510060B
#18890
