Tile Saws   >    Complete Systems



Pearl - HD Industrial Grade Dust Extractors.

5" Tile / Concrete Saw

 --- Compact, Durable, Versatile ---

Price List
Pearl 5" Concrete Saw - Sales Brochure.

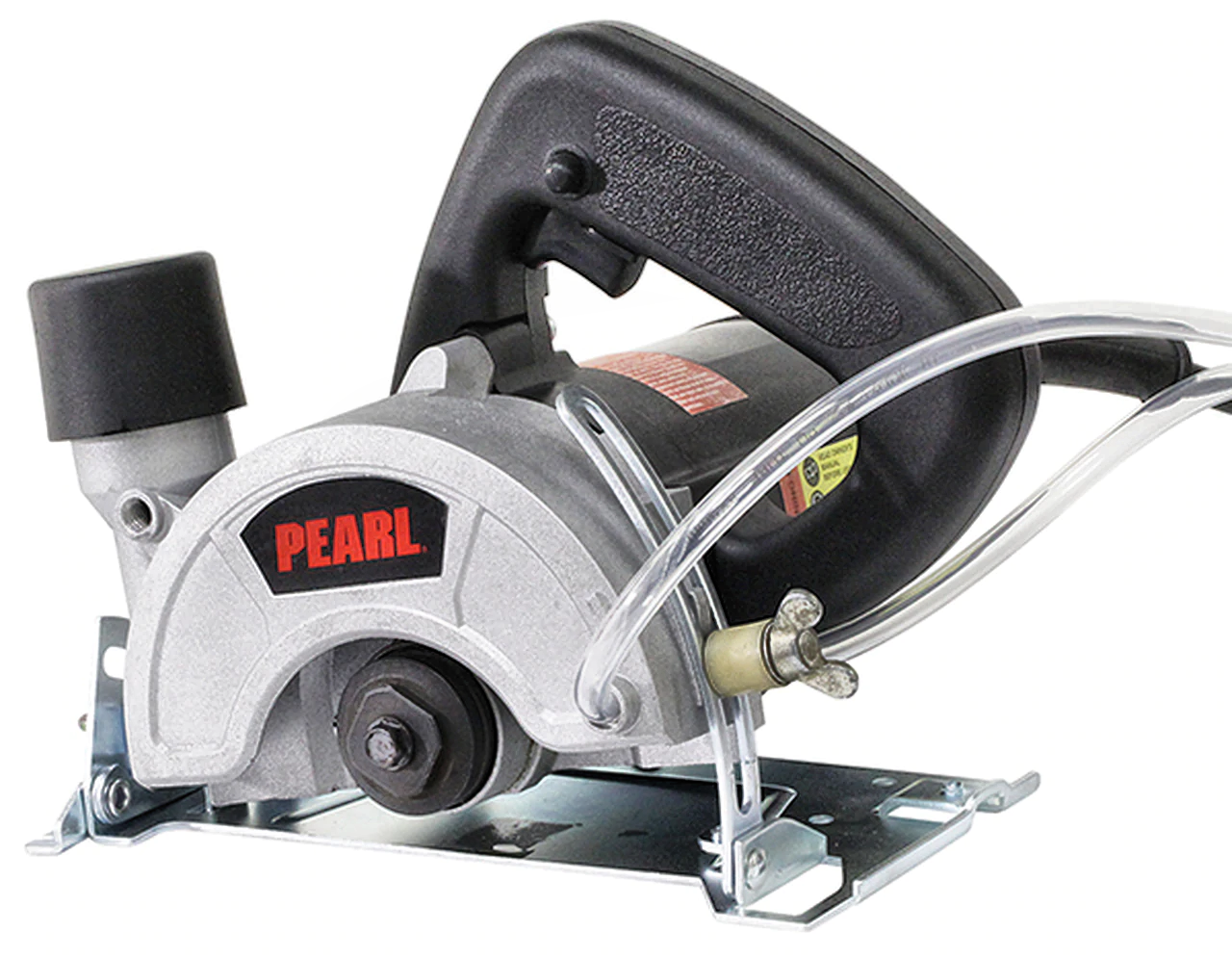

Pearl 5" Dust Control Saw, 11 Amp



$319.00
PN:  VX5WV, 5" Dust Control Saw

Includes:  side handle, vacuum dust port, garden hose / wet cutting kit with control valve, wrench, rip guide.



5" HD, Dust Control Saw
Precision Sawing:  Concrete, Masonry, Stone, Tile



Pearl 5" Dust Control Saw, 11 Amp Pearl 5" Dust Control Saw, 11 Amp
Pearl 5" Dust Control Saw, 11 Amp Pearl 5" Dust Control Saw, 11 Amp
Pearl 5" Dust Control Saw, 11 Amp



Specifications:

  • 11 amp motor, 12000 RPM

  • 1-11/16" depth-of-cut with 5" blade

  • Sturdy all aluminum single piece blade guard

  • Side handle for additional support

  • 20mm arbor

  • Weight: 8.4 lbs.

  • Vacuum port compatible with 1-1/2" hose cuffs

  • Trigger lock & In-Line GFCI

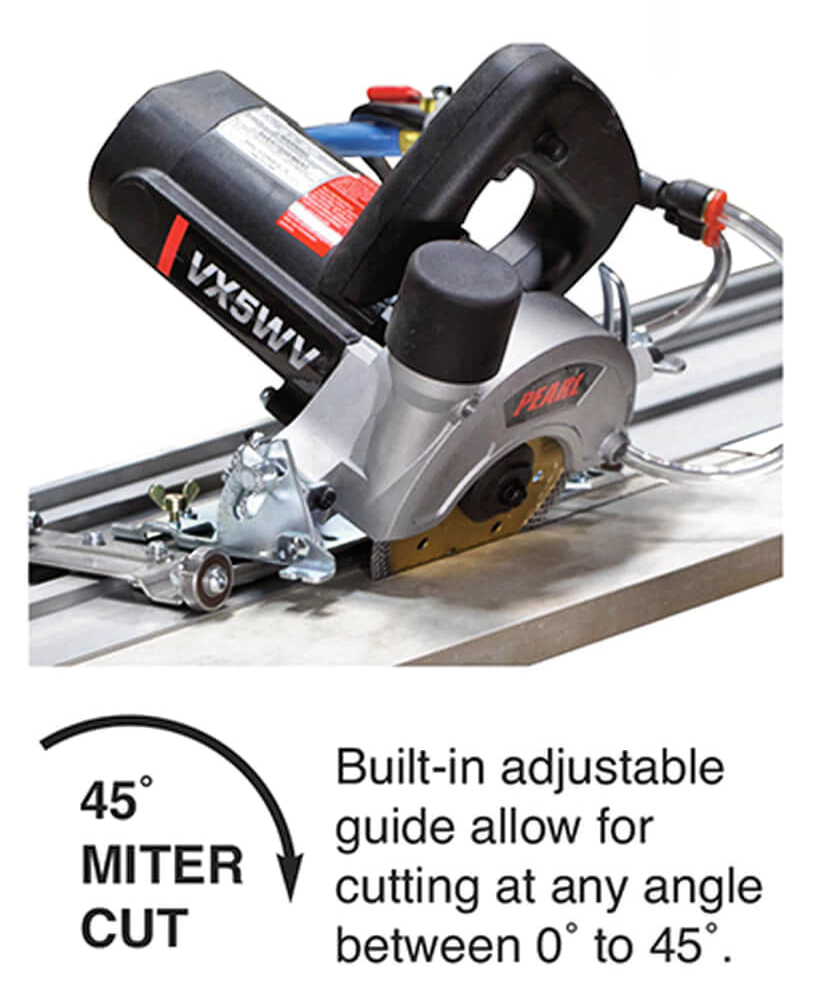

  • 45° Miter Cuts - built-in adjustment, cut at any angle between 0° and 45°.

Features:

  • Accepts contour cutting blades for fast, safe, radius cutting

  • Excellent Dust Control

  • Fast Depth Adjustment, easy blade lift lowering

  • Solid feel while operating, well balanced

  • Compact, lightweight size for easy handling

  • Depth-of-cut / blade engagement is smooth and easy.

Additional Details:

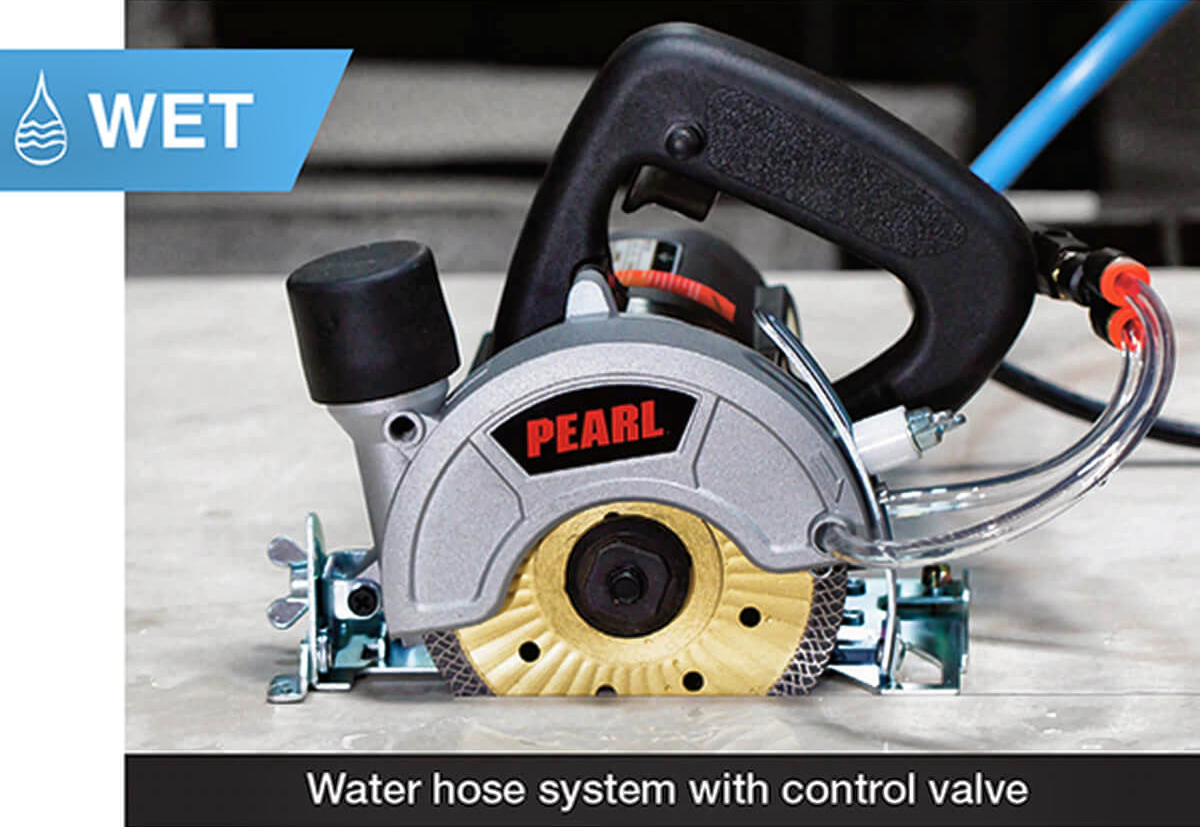

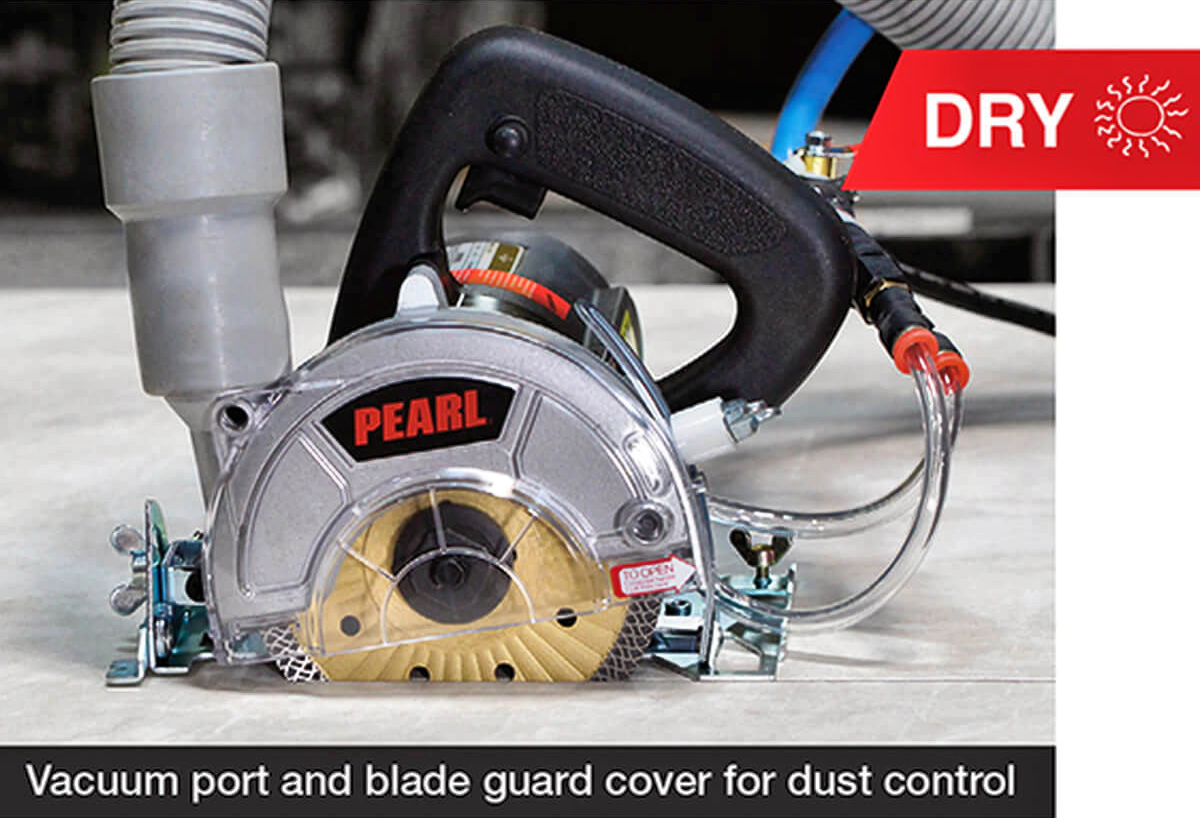

  • Wet or Dry Cutting - equipped with water feed and vacuum port to cut wet or dry
  • Maximum blade width:  1/8" blades
  • Exhausts zero (0) visible dust when used with a 125 CFM, 100" H20 Dust Extractor supported by non-blinding filter (dust port supports 1-1/2" ID connectors)
  • 1-Year Warranty.
