Mi-T-M Engines.




 Mi-T-M OHV Engines

Gasoline Single  ---  Cylinder  ---  Recoil or Electric Start

Replacement Engines:  Mi-T-M
  • Direct drop-in replacement for a Honda Engine
  • Supersedes specifications, performance, reliability vs. Honda
  • Backed by 3-Year Limited Warranty - same as Honda's.

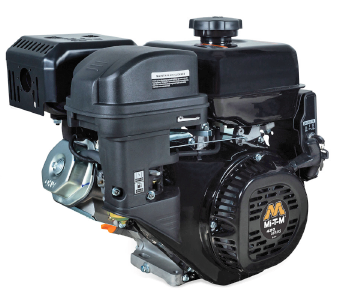

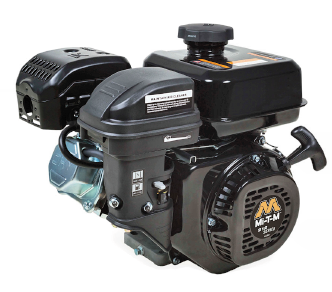

  Mi-T-M Gasoline Engine, Model 1-0221. Mi-T-M Gasoline Engine, Model 1-0231 and 1-0199. Mi-T-M Gasoline Engine, Model 1-0216.
Displacement 212cc 300cc 420cc 420cc
Model No 1-0221 1-0231 1-0199 1-0216
Honda
Cross Ref		 #1-0065
GX200
UT2QX2		 #1-0065
GX270
UT2XQA2		 #1-0086
GX390
UT2XQAA2		 #1-0087
GX390
UT2XQAE2
Max Torque 12Nm @ 2500 RPM 18Nm @ 2500 RPM 26.5Nm @ 2500 RPM 26.5Nm @ 2500 RPM
Cylinder Single Single Single Single
Engine Type OHV OHV OHV OHV
Bore x Stroke 2.75 x 2.16" 3.15 x 2.36" 3.54 x 2.59" 3.54 x 2.59"
Weight 34.2 lbs 57.3 lbs 70.5 lbs 70.5 lbs
Dimensions 15.4 x 10.0 x 13.6" 17.1 x 12.2 x 17.1" 18.3 x 14.0 x 17.5" 18.3 x 14.0 x 17.5"
Starter Recoil Recoil Recoil Recoil
Cooling System Air-cooled Air-cooled Air-cooled Air-cooled
Lubrication System Splash Splash Splash Splash
Oil SAE 15W-40 SAE 15W-40 SAE 15W-40 SAE 15W-40
Oil Capacity 18.5 oz 37 oz 37 oz 37 oz
Low Oil Shutdown Yes Yes Yes Yes
Fuel Gasoline Gasoline Gasoline Gasoline
Fuel Tank Capacity .95 gallon 1.7 gallon 1.7 gallon 1.7 gallon
Air Filter Foam Foam Foam Foam
Spark Arrestor Yes Yes Yes Yes
Cylinder Bore Cast Iron Cast Iron Cast Iron Cast Iron
Warranty 3 Year Limited 3 Year Limited 3 Year Limited 3 Year Limited
Sale $xxx.xx
 $xxx.xx
 $xxx.xx
 $xxx.xx

* Please call for current pricing or receive a quote by entering a quantity.  To receive a quote, the item is placed in the shopping card and labeled, "Quote Request."  This doesn't require you to purchase it and you can easily delete it.  Within the business day, you'll receive a quote that'll include availability and shipping cost (if any.)





Mi-T-M Advantage

SERVICE & PARTS

  • The complete machine is serviced through Mi-T-M Corporation

  • Service and parts on Honda engines, in Mi-T-M machines, is through Honda.

Mi-T-M ENGINES

  • Mi-T-M Gasoline Engines - Cross Reference to Honda Engine.Same 3-year warranty as Honda

  • Engines are a direct drop-in replacement for a Honda engine

  • Many well-know manufacturers use and private label the Mi-T-M engine in their outdoor power equipment

  • Engine features include:

    • Recoil or electric start

    • Designed and built using the highest quality

    • OHV with easy start

    • EPA3 / CARB compliant.
