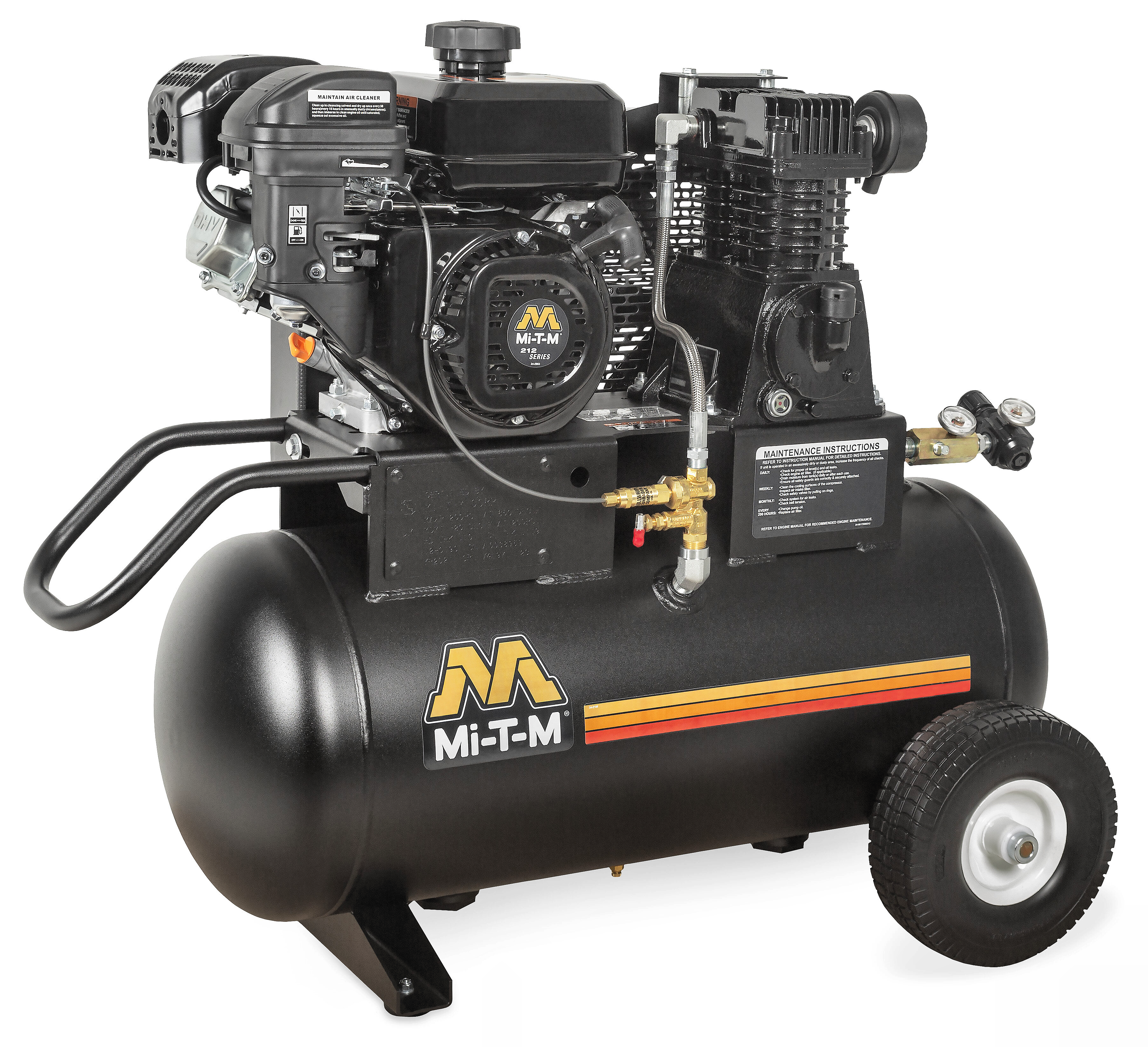

Compressor > Mi-T-M: 20-Gallon Gasoline Air Compressor.

Gasoline Air Compressor

-- The Engine to Process Concrete Slurry

Mi-T-M, Model:
AM1-PM07-20M

Capacity to process (10+) 55-gallon drums of slurry in an 8-hour shift.

AM1-PM07-20M
20 GAL., 212cc OHV Mi-T-M Engine
--- "Slurry Press" Portable Air Compressor

$ xx.xx

Perfect Match: tank size & air requirement to operate a Mudhen - Concrete Slurry Press / Water Recycling Machine and specifically the MH4 with its 23 filter collection chambers.

* Due to supply chain issues, this is a quote item. When you enter a quantity, the item is placed in the shopping card and labeled, "Quote Request." This doesn't require you to purchase it and you can easily delete it. Within the business day, you'll receive a quote that'll include availability and shipping cost if any.

Mi-T-M ENGINE: 212cc OHV with low oil shutdown, cast iron sleeve
--- Model: 1-0221:

Mi-T-M's most popular engine (right)
Cross reference to Honda GX200 - a direct drop-in replacement
Same 3-year warranty as Honda, 100% serviceable and parts by by Mi-T-M.

Overview:

Designed for maximum productivity and portability - a popular choice among contractors for many applications.

Air Delivery:

13.9 CFM @ 90-PSI (3 times more powerful than the Dewalt electric D55168)

Fast recovery after the tank is empty + larger tank for longer run times

Compressor Setting for Mudhen Machines (4): 50 - 80 PSI (never operate a Mudhen higher than 80 psi)

Warranty:

2-year pump

3-year Mi-T-M engine

Compressor Pump: Splash lubricated

Stainless-steel braided discharge hose

Large canister intake filter

Oil level sight indicator

Frame: Powder coated ASME receiver tank

3/16" base plate to reduce vibration

16-gauge powder coated two-piece belt guard

10-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · manual drain valves for proper maintenance

12-inch fly wheel

Quality pilot valve unloader.

Specifications:

Displacement / Engine: 212cc Mi-T-M OHV
Compressor: Single Stage, Cast Iron
Tank Size: 20 gallon
Engine Idle Control: Pneumatic
Weights & Dimensions:
- Net Weight: 175 lbs.
- Shipping Weight: 245 lbs.
- Length: 37"
- Width: 23.50"
- Height: 33"

Mi-T-M AM1-PM07-20M
--- provides plenty of powerful to operate all four (4) Mudhen Slurry Press Machines


Mini	MH1

MH2	MH4
