Hex Pin System   >   Carbide Scraper #4


Floor Preparation System

Concrete Grinding, Sanding, Polishing, Coating Removal

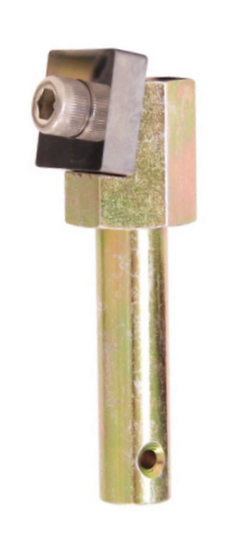

Carbide Cutter #4
Complete Assembly
#HEX4CARB





Carbide Scraper #4

  • Complete assembly - cutter, pin, bolt
  • Sharp Cutting Edges, 8-Sided
  • Application:  mastic, paint, epoxy, scarifying concrete
  • Rotate the carbide chips to scrape through assorted overlays to create a new surface substrate in a stretched pattern
  • Effectively and quickly removes damaged overlays through scarification to help provide proper bonding of the new floor overlay
  • Coatings Coating Removal:  hard, soft, thin, thick coatings including tar, ice, rubber, yellow safety paint, mastics, etc. without melting the coating
  • Works like a putty knife removing at least 90% of the coating
  • SCARIFICATION - harden cutters scrape into the floor to effective remove high spots and create a rough finish on the floor for adhesion of a new overlay
    • a rough finish is generally left including ridges in the concrete
    • On jobs requiring a smoother finish, you may need to grind the surface after scarifying
  • Expected footage:  4000 sq ft per edge, 8-edges
  • Select to use 6 or 12 per plate - or faster removal use 6 carbide scrapers
  • Spring-loaded tool provides maximum floor contact.


Item#

Description

HEX4CARB

Complete Assembly - #4 Carbide Scraper w Holder (pin) and Screw

$72.00
HEX4SCRE

Replacement Screw

$ 1.16
HEX4CRBH

Holder (pin)

$44.00
HEX4CHIP12

#4 Individual Carbide Scraper, 8-Edges, 12-Pk

$298.00
