Joint / CC Saws   >   10", Electric


10" Joint Saw

10" Blade Capacity, 2-1/4" Depth-of-Cut, 120 Volt

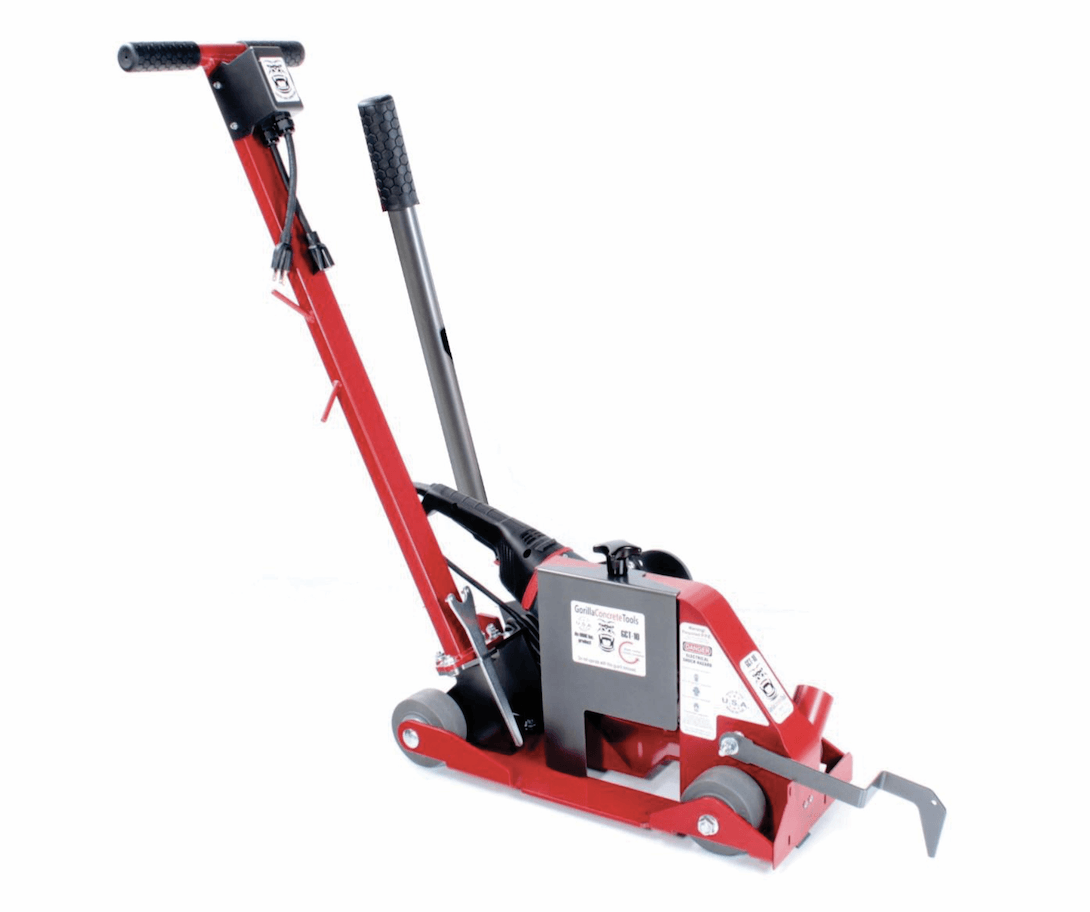

Gorilla 10" Walk-Behind Joint Saw - Electric, 120 volt.

10" Joint Saw
Model #GCT-10





$1,797.00

#GCT-10 Walk-Behind Saw
--- Straight-Line Cutting
--- 2-1/4" Depth-of-Cut.
--- Impeccable Dust Control with 2" Dust Port
--- Includes Metabo, High Torque, 15 Amp Grinder.




asedf

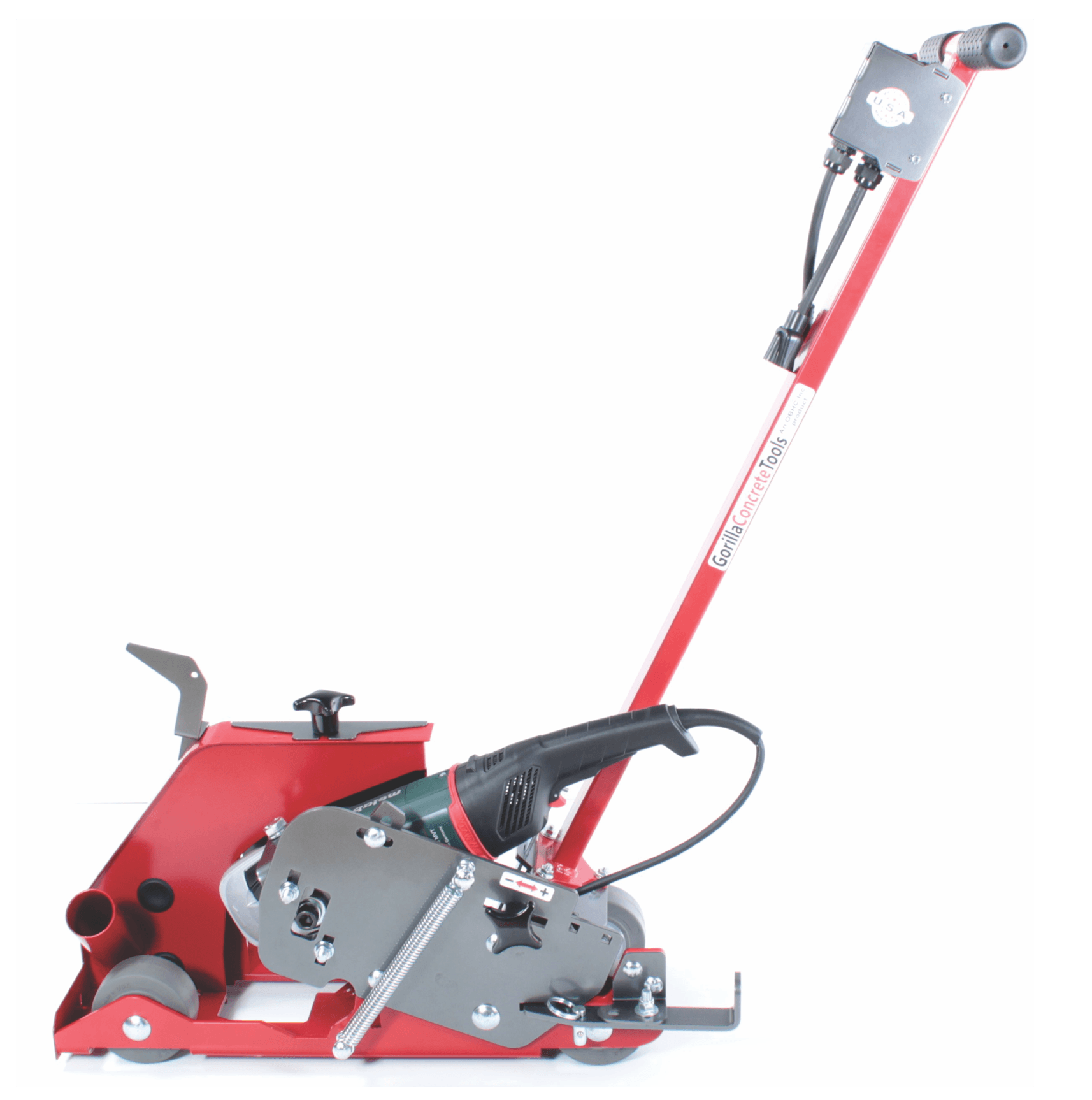

Gorilla 10" Walk-Behind Joint Saw - side view.

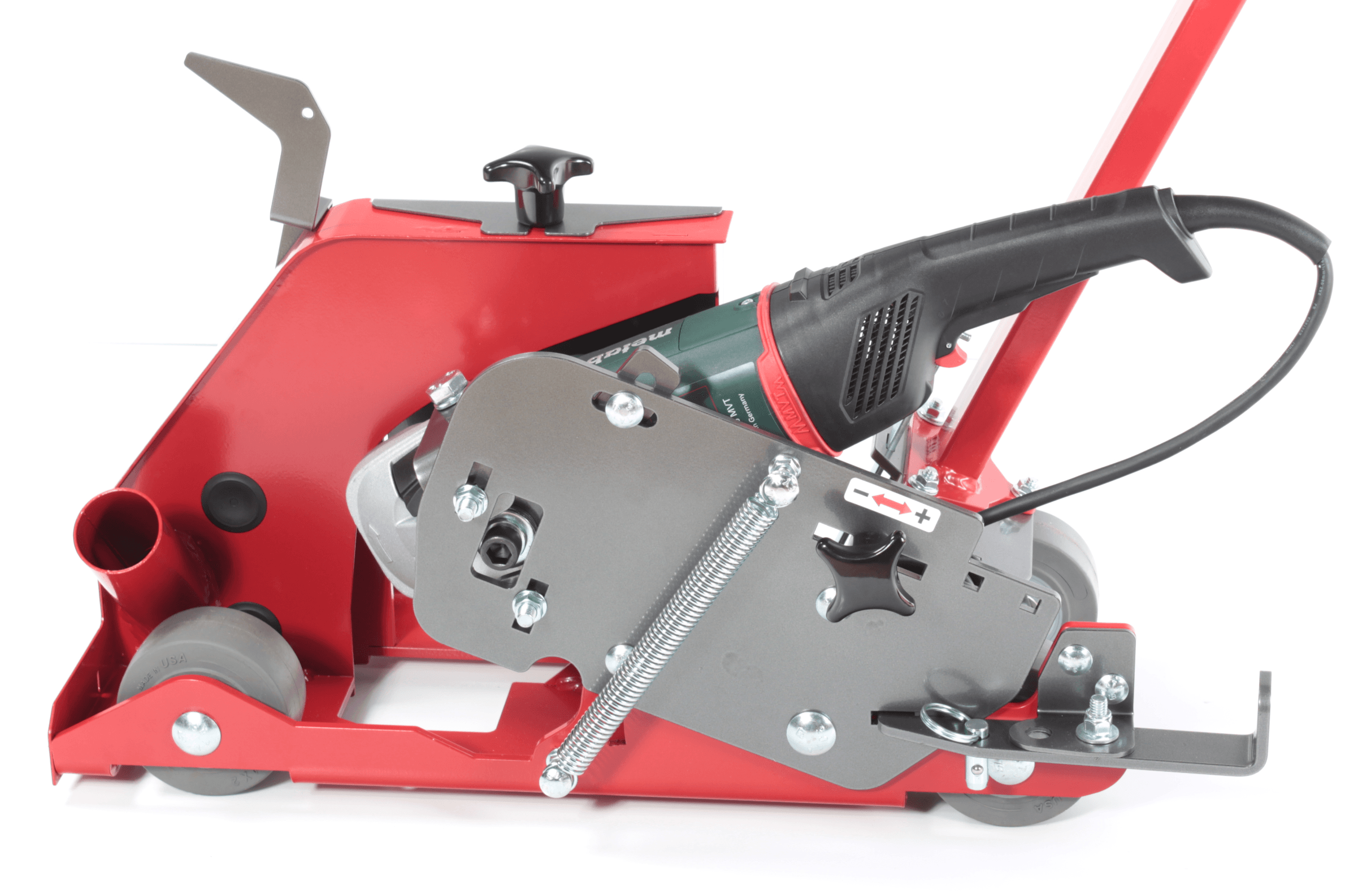

Gorilla 10" Walk-Behind Joint Saw - side view.

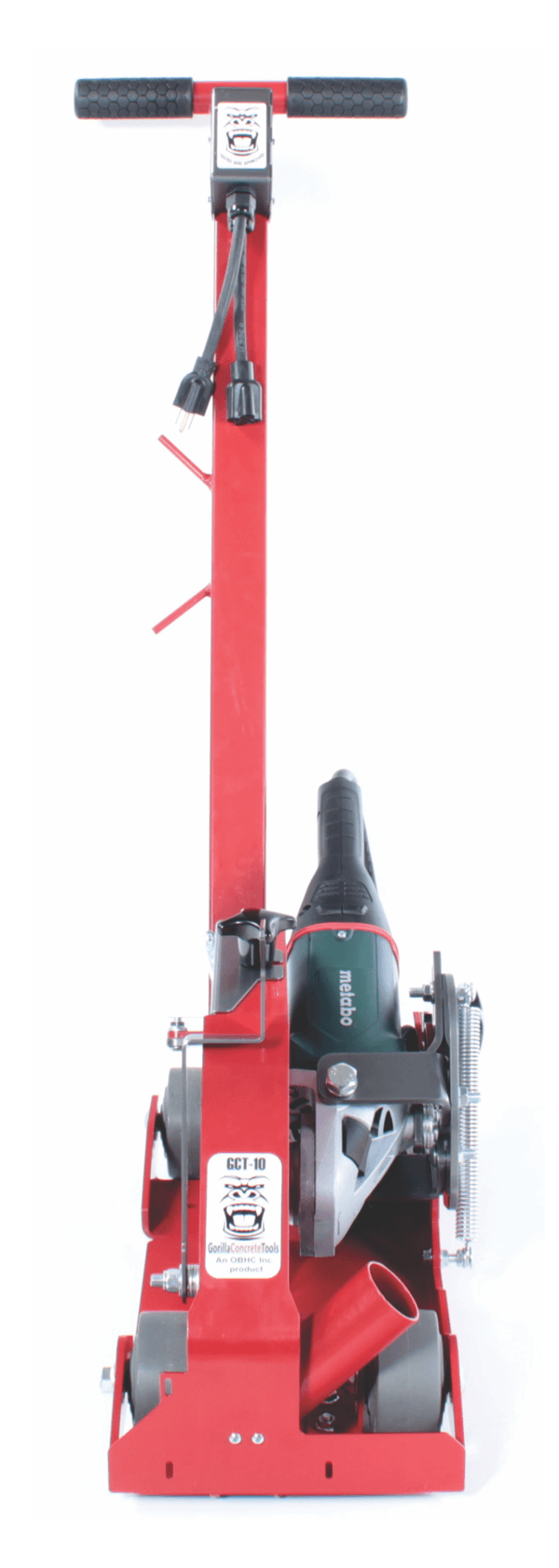

Gorilla 10" Walk-Behind Joint Saw - front view.



Description:

  • Compact and portable with all the power that is needed for cutting or cleaning out existing control joints
  • Metabo 15.0 Amp, High Torque Electric Grinder
    • Model W24-230 - ensures you have the power to obtain your selected depth-of-cut and while maintaining production footage
    • produces zero exhaust emissions, ideal for both indoor and outdoor use
  • HD Blade Pointers (2) - front and rear, to ensure that the user can accurately follow the cutting line
  • Solid feel while operating - well balanced saw:
    • ¼" HD steel frame for durability - which also reduces vibrations to provide a smoother cutting operation
    • solid one-piece handle design
    • handle is padded with oversize honeycomb comfort grips
    • precision quality - casters & wheels
  • Wheels (4) - precision, high quality with sealed bearings
  • Depth-of-Cut / Blade Engagement -  smooth operating linkage, easy adjustments in seconds
  • Dust Control - exceeds 95%, 2" dust port is ideal for attaching a vacuum
  • 14 gauge electric control box with heavy-duty toggle switch and 12/3 wiring
  • Easy to carry and transport without sacrificing durability.

Features

  • Excellent dust control

  • Exceptional Blade Visibility: Uses a front and rear blade pointer plus a cut-cut window

  • Simple to operate

  • Durable powder coated finish

  • Quick depth adjustment

  • Integrated blade wrench holder

  • 2" dust port

  • 1/4" Steel frame

  • Multi functionality.

Specifications

  • Power Requirements: 120 volts 20 amps

  • Weight: 70 lbs.

  • Blade sizes: 8 to 9"

  • Arbor size: 5/8"

  • Cutting Depth:  2-1/4" maximum

  • Vacuum Requirement: 250 CFM minimum.
