Glitter Bit – Diamond Router Bit for Vertical Brick Mortar Joint Grinding

DUST GUARD
Professional Tools for Pros

THE FASTEST WAY TO GRIND VERTICAL BRICK JOINTS

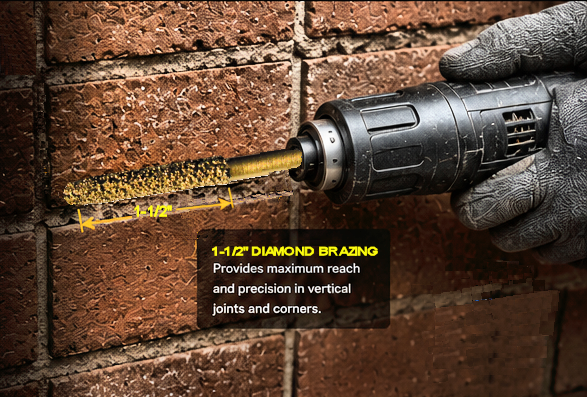

The Glitter Bit is a precision diamond router bit that grinds mortar where diamond blades can't reach.

	Grinds vertical joints without damaging the adjacent bricks
	Reaches tight corners and hard-to-access areas
	Complete 90° cut-outs around bricks
	Less damage. Faster work. Professional Results.

THE PROBLEM WITH TRADITIONAL METHODS


Small Blades Damage Brick Circular blades can easily cut into adjacent bricks.	Not Enough Depth 3" blades don't provide the necessary depth-of-cut.	Chisel & Hammer Finish A hammer and chisel are needed to complete the 90° cut-out.

THE SOLUTION: DIAMOND GLITTER BIT

	The Glitter Bit is a diamond router bit used in a variable speed die grinder.
		Grinds vertical mortar joints safely
		Reaches tight corners and grinds inside returns
		Completes the 90° mortar cut-outs
		Grinds hard "S" mortar and granite
		The original Glitter Bit - far outlasts competitive bits
		Use with dust control for best results - performance and life.

HOW IT WORKS
	CUT HORIZONTAL JOINTS Use a diamond blade to cut the horizontal mortar joints.	GRIND VERTICAL JOINTS Use the Glitter Bit in a variable speed die grinder to grind the vertical joints, window and door return, and corners.

	COMPLETE 90° CUT-OUT Grind both vertical joints and inside corners to complete the 90° cut-out around the brick.	REMOVE THE BRICK Remove the brick cleanly with minimal damage to the surrounding wall.

IDEAL FOR

GLITTER BIT SPECIFICATIONS

SIZES AVAILABLE

	Masonry Restoration
	Grinds Irregular Stone Mortar Joints
	Historic Brick Repair
	Chimney Repair
	Window & Door Returns
	Inside Wall Corners

Shank Diameter	Overall Length	Diamond Width	Diamond Length

1/8"	3"	3/16"	1-1/2"
1/4"	3-1/2"	5/16"	1-1/2"
1/4"	4-5/8"	5/16"	2-1/2"

1/8" x 3"
1/4" x 3-1/2"
1/4" x 4-5/8"


Precision grinding where blades can't reach.	For use in variable speed die grinders.	Maximum operating Speed: 10,000 RPM.	Works wet or dry. Use with dust controller for best results and extended life.	HD strong and durable. Contractor tested and trusted.

SEE IT IN ACTION

Watch how the Glitter Bit grinds vertical mortar joints.

DESIGNED FOR PROFESSIONALS

The Glitter Bit is a go-to, handy tool to have for masonry restoration contractors who demand precision, speed, and long tool life.

	Reduce chisel time and labor
	Protect surrounding bricks
	Better results, every time.

WORK SMARTER. GRIND BETTER.

GLITTER BITS
Starting at:
$45.00

Select Size	Qty	Price
1/8 x 3"	N/A	---
1/4 x 3-1/2"		$45.00
1/4 x 4-5/8"		$70.00

TRUSTED BY MASONRY PROFESSIONALS
Stringent Quality Control Professional tools built to last.	Contractor Tested Proven performance for 20+ years.	Premium Diamond Superior cutting and long life.	Save Time and Labor Get more done everyday.	Dust Control Stay OSHA Silica Dust Compliant with our Dust Controller.

Shop Related Accessories

Glitter Bit
Dust Controller Variable Speed
Die Grinder Collets

$119.00

#GB112

$315.00

#GDO800C

Two (2) Sizes:

1/8"
$39.99
1/4"
$29.99

Dust Controller shown attached to Makita die grinder (grinder sold separately.)

GDO800C Makita Die Grinder: 6.6 Amp, 7000 - 28000 RPM, 14-5/8" OAL, 3.7 lbs., includes a 1/4" collet and flange nut.

Replacement collets to hold Glitter Bits,

GB112 DUST CONTROLLER - includes a soft vinyl hose cuff for use with a 1-1/2" diameter vacuum hose. The GB112 Dust Controller fits the following die grinders (may fit others): Makita GDO800C, Metabo GE700.

DUST GUARD
Professional Tools for Pros

LEARN MORE ---
Single Brick Removal System

SINGLE BRICK REMOVAL SYSTEM
The Complete System to Remove a Single Brick Cleanly, Accurately and Safely.

Remove bricks without damaging the surrounding masonry

Grind vertical joints and complete 90° cut-outs

Faster, cleaner and more precise

Trusted by masonry restoration professionals.
