Cup Wheels

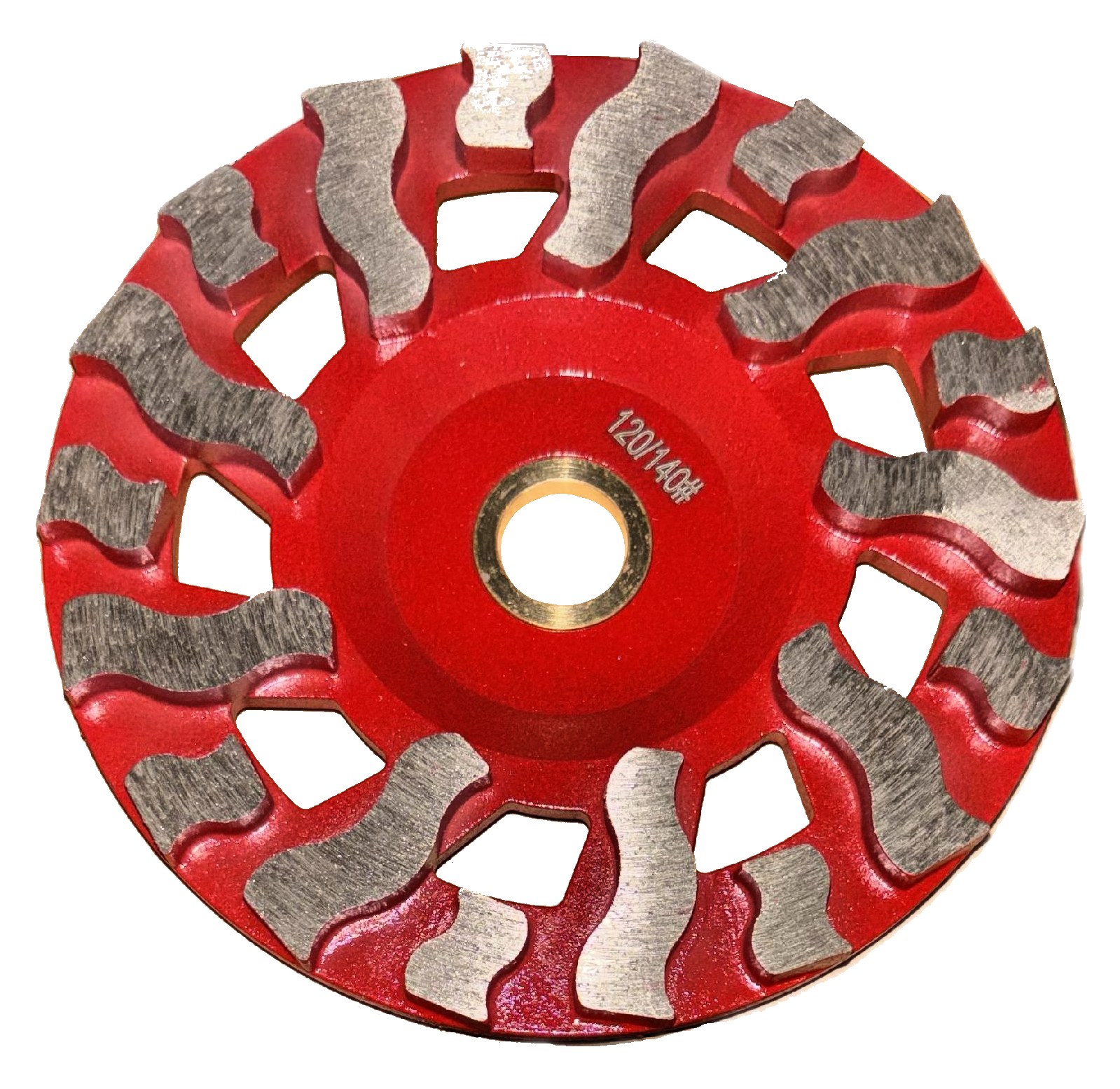

Red Tornado Cup Wheels



Red Tornado - 3 Grit Sizes

Red Tornado
Two Sizes:  5", 7"
Best Seller!

UNIVERSAL FIT

7/8" to 5/8-11 Adapter for Thread MountingLOW PROFILE CUP WHEEL PLUS FREE ADAPTER INCLUDED:

7/8" to 5/8-11 Threaded Adapter

Our low-profile cup wheels are designed to maintain proper dust-shroud contact while grinding.

Each wheel includes a FREE 7/8" to 5/8-11 threaded adapter, giving you the flexibility to use the wheel with virtually any dust-shroud configuration.



Free:  7/8" - 5/8-11 Threaded AdapterBest Performance.  Best Design.
--- Free:  7/8" to  5/8-11 Adapter Included at No Charge Free Adapter - Included!
--- The adapter gives you greater flexibility to assure your dust shroud seals for maximum dust control.

  • Aggressive Removal to Fine Sanding

  • Superior Performance & Life

  • Segment Design:  Combination of "S" & "H" Segment Types.

3-GRIT PROFILES:

  • Concrete Surface Profile ChartCoarse 20 / 25:  Ideal for aggressive, HD removal, leveling high spots.

  • Medium 50 / 60:  The standard general purpose range.  Provides a balance between material removal and surface smoothing, commonly used for preparing surfaces for thin-set, coatings, or sealing.

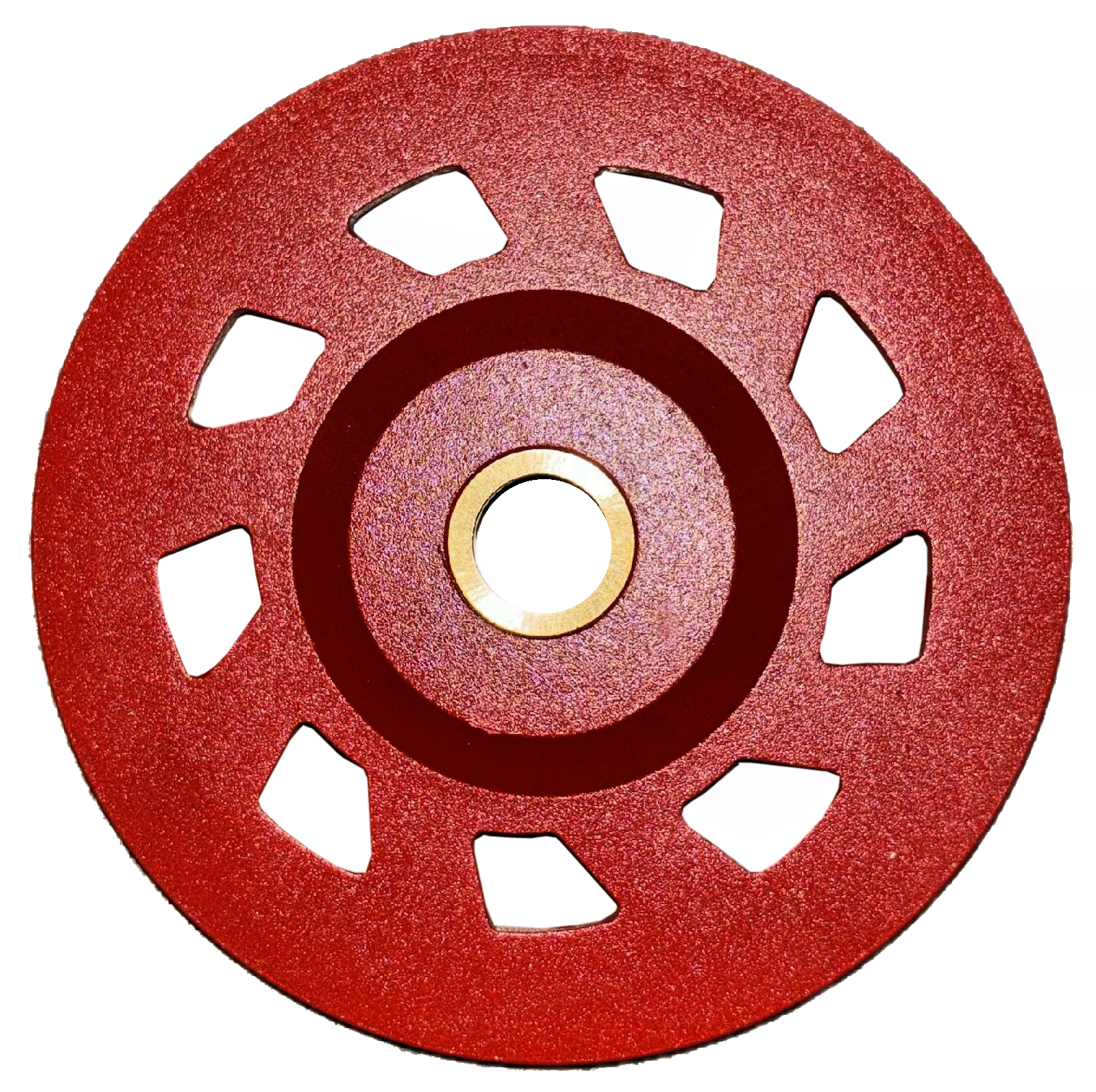

  • Red Tornado - Top ViewFine 120 / 140:  Used for smoothing surfaces, removing light blemishes, or finished concrete stone, and tile before polishing.

SUPERIOR DUST CONTROL

  • Open-face design significantly improves dust control when used with a proper dust shroud and vacuum

  • The open structure improves airflow, allowing the vacuum to more effectively pull dust away from the surface rather than circulating it

  • The open-face wheel, with opening between the segments, prevent the dust from becoming trapped underneath the wheel and create channels for air, which enhances the efficiency of the suction.





Red Tornado Cup Wheel Sizes
Size Price Part Number

5", 18- Segments, 20/25#, 7/8"

$110.00

325843

5", 18- Segments, 50/56#, 7/8"

$110.00

RT0550NT

5", 18-Segments, 120/140#, 7/8"

$110.00

RT05120NT



7", 18- Segments, 20/25#, 7/8"

$159.00

344644

7", 18- Segments, 50/56#, 7/8"

$159.00

RT0750NT

7", 18- Segments, 120/140#, 7/8"

$159.00

RT07120NT

FREE Cup Wheel Adapter - For the above 5" & 7" Red Tornado Cup Wheels.

$FREE

191037

Cup Wheel Adapter:  7/8" to 5/8-11

Select a FREE adapter for each Red Tornado Cup Wheel purchased.

Converts the cup wheel's 7/8" open-hole arbor to a 5/8-11 threaded-hub.







Grinder / Blade Free Tool Package

CONTRACTOR PACKAGE

The cup wheels are the jobsite expense.  Get a Surface Dust Guard or Angle Grinder FREE!

Buy 5 -or- 10 Cup Wheels
Get a FREE
Surface
Dust Guard
or Angle Grinder!

- - - -       Step 1:  Buy the cup wheels (above)            Step 2:  Choose Your FREE Tool Free Tool Selection     - - - - -



FREE Surface Dust Guard



Buy 5 Cup Wheels

Get a FREE
Dust Pro 6"
Dust Guard

$119.50 VALUE!

Professional and versatile dust control guard for tuckpointing, crack chasing and concrete cutting with its wide-open visibility and universal collar.




- or -



FREE Angle Grinder

Makita SJS Angle Grinders

Milwaukee 7/9" Angle Grinder.



Buy 10 Cup Wheels

Get a FREE
Angle Grinder

$229+ VALUE!

Blade quantities and savings may vary by model.  See the Grinder Selection page for details.

Select Your FREE Grinder
(next)



FREE GRINDER SELECTIONS
Buy (10) 5" Cup Wheels Buy (10) 7" Cup Wheels
Receive a FREE Makita Grinder Receive a FREE Milwaukee Grinder
Makita #9565CV
Variable Speed
Makita SJS Angle Grinders
5", 13Amp
2800 - 10,500 RPM
FREE

  A $229 VALUE
  YOU SAVE $229!

Milwaukee #6088-30
High Torque, Low RPM
Milwaukee 7/9" Angle Grinder.
9", 13.0 Amp
6000 RPM
High Torque
FREE

  A $299 VALUE
  YOU SAVE $299!





Optional Loop Handle
For 7" & 9" Grinders:  Improves control, comfort, precision.
Large Loop Handle, Fits 7" and 9" Grinders. $90.00




The included hardware for the loop handle fits the Milwaukee 6088-30 Grinder:
>  3/8-16 x 1" Hex Head Bolts (2),
>  Locking Washers (2)
>  Flat Washers (2).

For Dewalt, Makita and Metabo grinders, metric hex bolts are required and the size is:  14MM-2.0 x 16MM.
