Table Saw Menu   >   Masonry Saws, 14" Diamond Products


14" Masonry Saws
---  Gasoline  &  Electric  ---		 Brochure
 Diamond Products - 14" Masonry Saws.





Diamond Products 14" Electric Masonry Saw

Diamond Products, CC500M
Masonry Saw, Gas or Electric

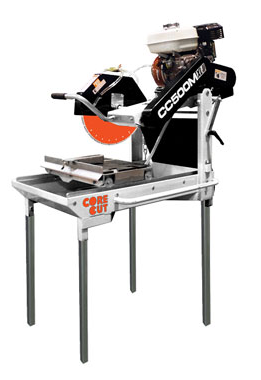

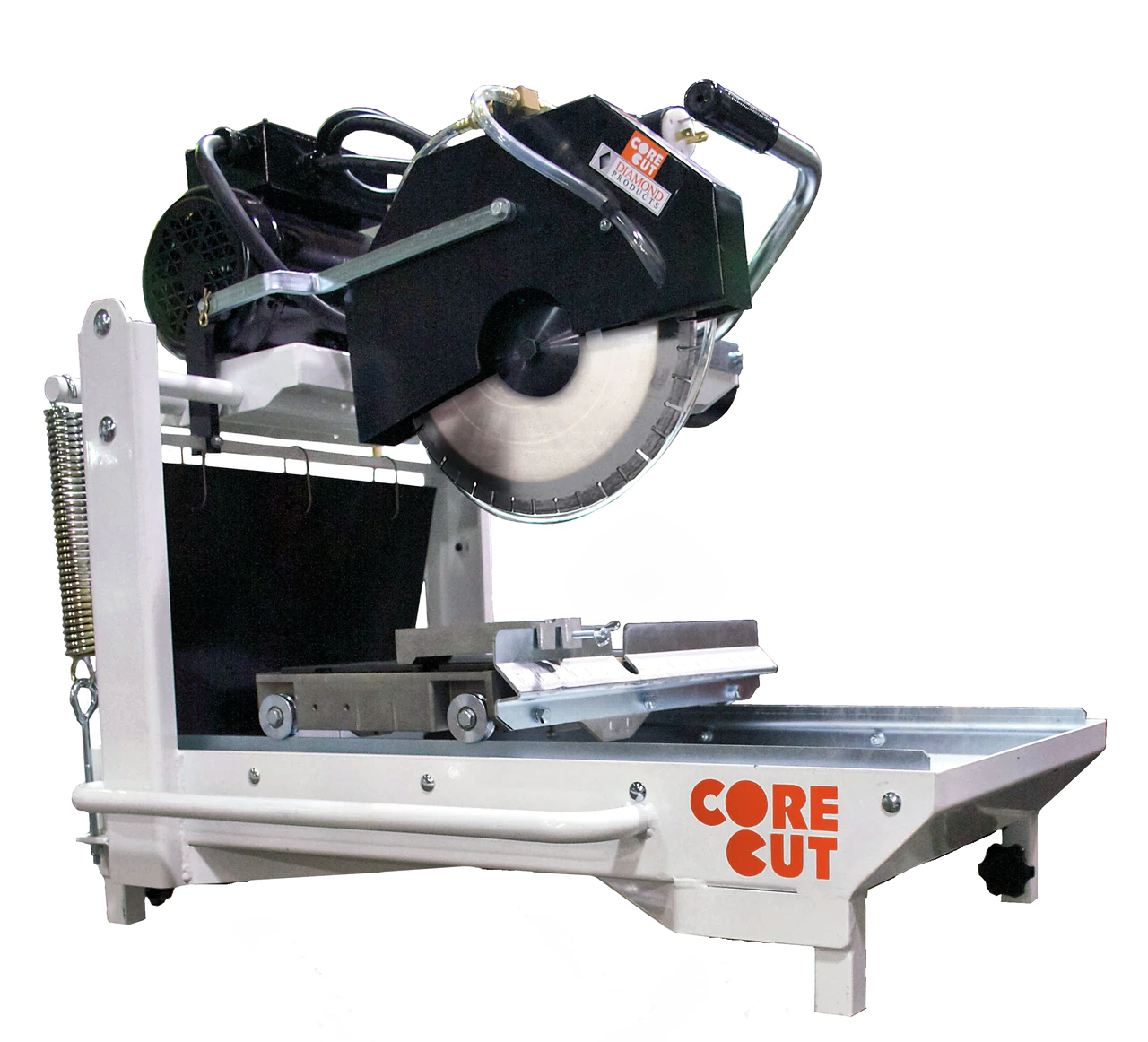

Diamond Products 14" Electric Masonry Saw Diamond Products 14" Electric Masonry Saw, #CC500M.




CC500M 14" Masonry Saw

--- HD, Solid, American Made 14" Masonry Saw by Diamond Products

  • Made for cutting brick, block and pavers
  • Available with either a Baldor electric motor or a Honda or Briggs & Stratton gas engine
  • Maximum depth-of-cut is 5"
  • Open throat design permits cutting materials up to 12" in length on the conveyor cart
  • For ease of transport, the saw head is easy to remove by releasing the two locking pins
  • Cutting depth adjustment is on the side of the frame so you don't have to reach around or go behind the saw
  • Includes water pump and pole legs, see thumbnail (left)
  • One Year Warranty.

For additional information, specifications and assorted models
--- Click on the above brochure.



s

s

Low Amperage
on Electric Models (3)
  • 1.5 HP Model Standard Draw:  13.4 Amps
    --- Perfect for Household 15 Amp Breakers
  • 2.0 HP Model Standard Draw:  15.9 Amp
  • 2.5 HP Model Standard Draw:  21 Amp



Electric Models (3), Options

Description Catalog# Price

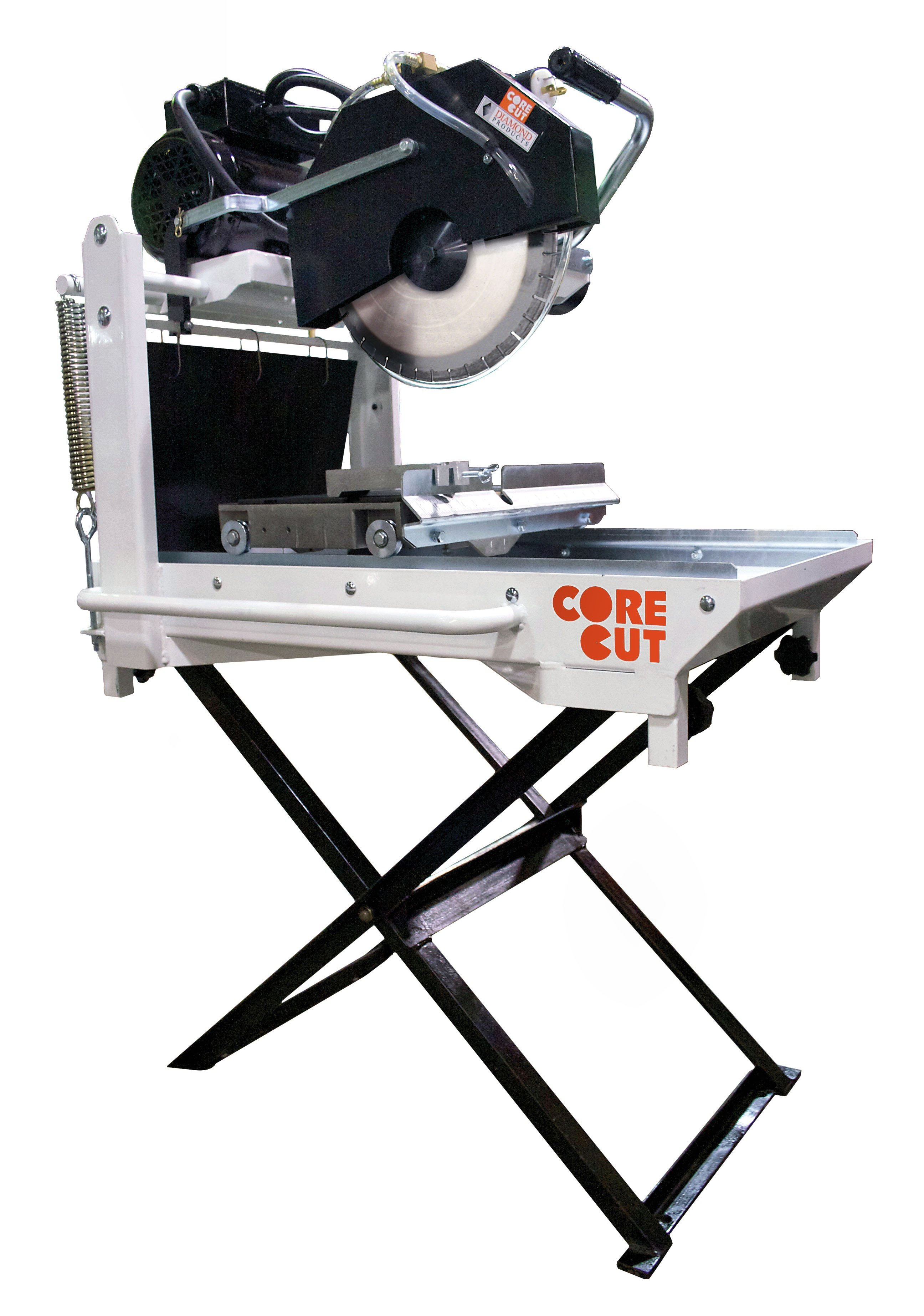

Folding Stand 46870 Please Call
Folding Stand Upgrade 46893 Please Call
Folding Stand Wheel Kit 48547 Please Call



Masonry Blades

We offer 14" blades to maximize your productivity when using the CC500M or any other masonry saw.

Professional Masonry Blades

Four styles or bond types are provided:

  1. Abrasive - for block
  2. Silent Core - for silent cutting
  3. Refractory - for hard brick and pavers
  4. Glazed & XXX-Hard - for extreme hard brick, glazed brick and stone.

To view our Masonry Blade
selection < click here >


CC500M - 14" Masonry Saws

Model# Motor Motor/Engine Power Wgt (lbs)  Price
CC515MXL2E1 Baldor 1.5HP-1PH
115/230V		 Electric 108 Please Call
CC520MXL2E1 Baldor 2.0HP-1PH
115/230V		 Electric 227 Please Call
CC525MXL231 Baldor 2.5HP-1PH
115/230V		 Electric 228 Please Call
CC548MHXL2 Honda
GX160		 4.8HP, 7.6 torque (lbs ft) Gas 220 Please Call
CC565MBVXL-2 Briggs & Stratton 6.5HP Gas 170 Please Call
