Diamond Core Bits - M1 Diamond Drilling Rig

M1 CORE RIG
THE #1 DRILLING RIG IN AMERICA
BUILT TO PERFORM. BUILT TO LAST.

COMPLETE SYSTEM
Rig Motor Vacuum Pump

Everything You Need To Get The Job Done

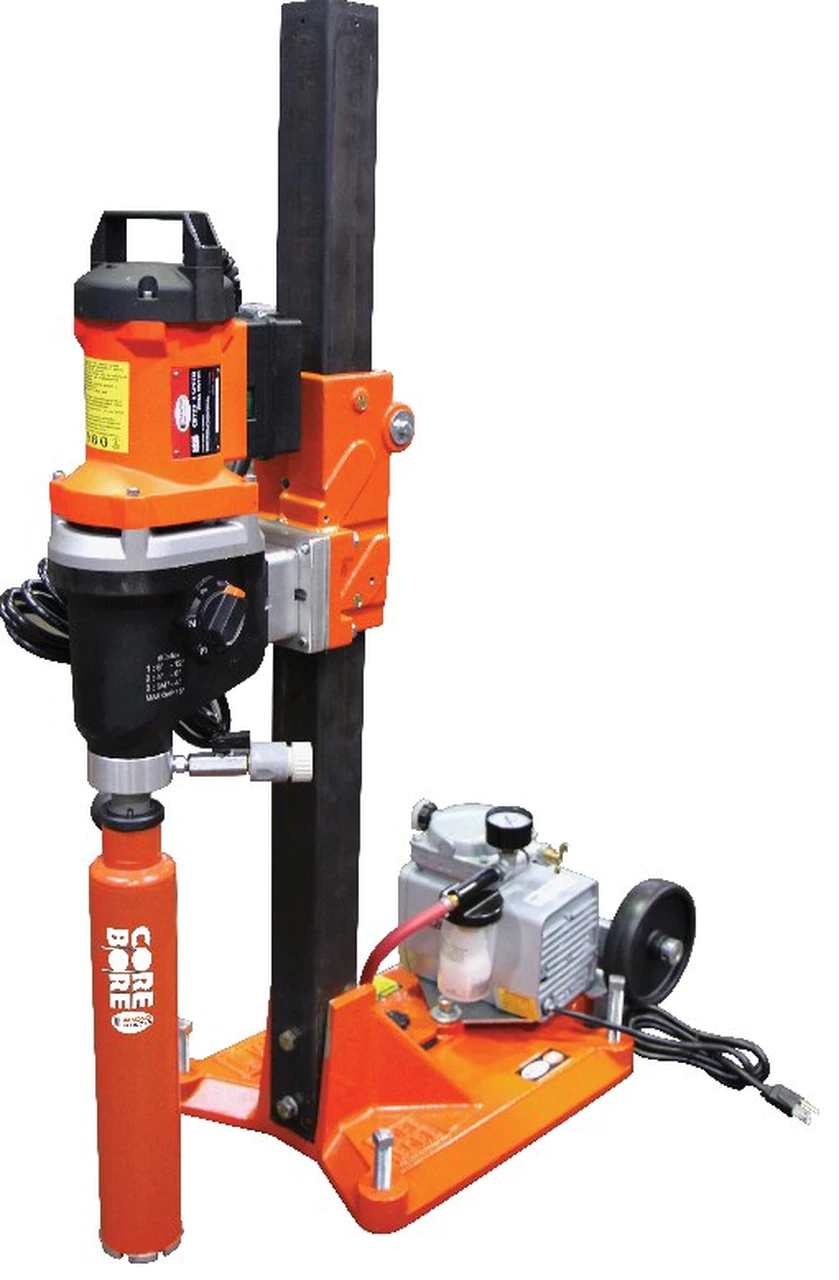

M-1 COMPLETE DIAMOND CORE RIG
(Equipped with Vacuum Pump
& 3-Speed CB733 Drill Motor with LED Amp
Meter and On/Off Switch)

Model#	Motor Power	Motor RPM	Part#	Weight
4245115	CB733 20 Amp	550 / 1000 / 1600	983263	108 lbs.

Div. of Scott Electric 412-605-2992
-- #1 DRILLING RIG IN AMERICA --

$3,290.00

	16" Bit Capacity Spacer blocks are available for larger diameter bits and longer steel gear columns are available for deeper holes

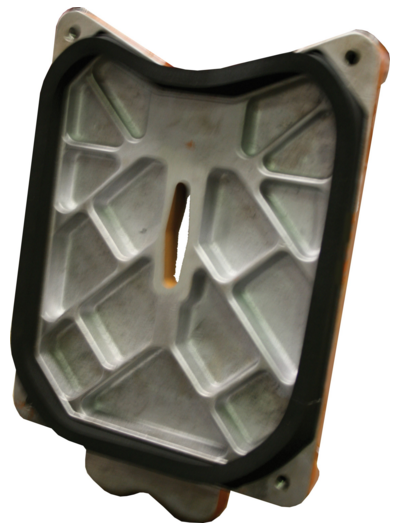

	Vacuum or Anchor Bolt Base Secure setup on any flat surface with vacuum pump or anchor bolts

	3-Speed CB733 Motor 500 / 1000 / 1600 RPM for optimal performance on any size core bit

	Built-In LED Amp Meter Monitor motor load in real time for maximum efficiency and tool life

	Built Tough Built Safe Slip clutch, bubble level, overload protection and reliable components

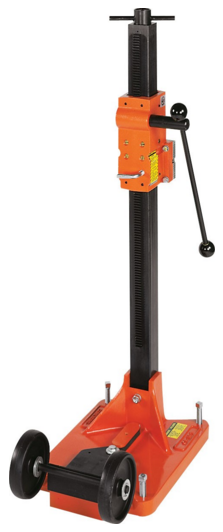

	Easy Mobility 6" wheels and carry handle make transport simple.

Safer
Vacuum gauge ensures secure setup before drilling.

More Accurate
Leveling screws and bubble level for precise drilling every time.

More Productive
3-speed motor matches the right RPM to the right size bit.

Built To Last
Heavy-duty steel construction and premium components built for the job site.

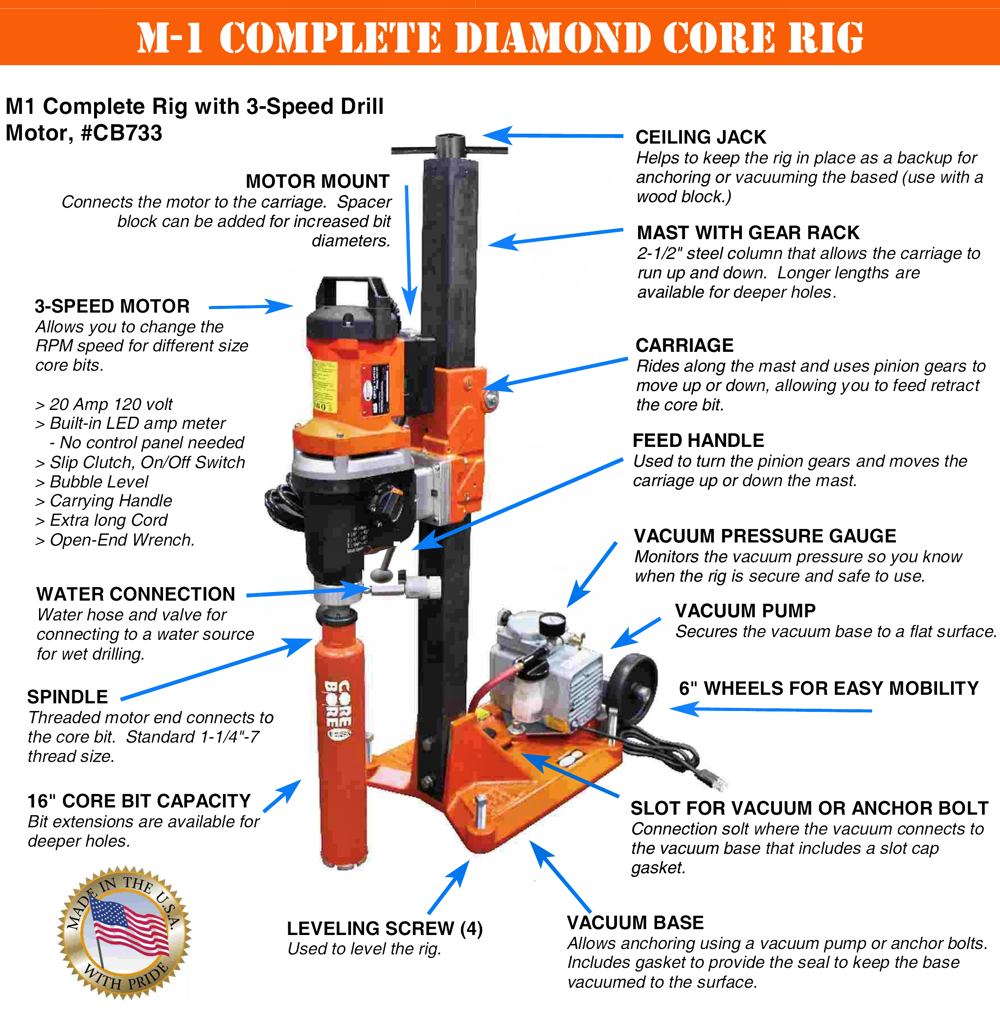

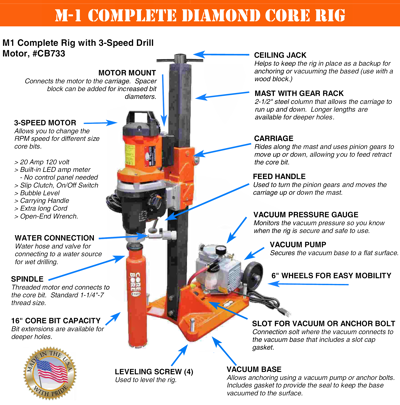

COMPLETE SYSTEM INCLUDES:
	M1 Core Rig with Mast & Carriage
	CB733 3-Speed Drill Motor
	Vacuum Pump
	Vacuum Pressure Gauge
	Feed Handle
	Ceiling Jack
	Water Hose & Value
	Tools & Accessories
	Owner's Manual
