First-Cut™
Early Entry Saw

6.5" Blade Capacity
---  Electric or Gasoline

• Solid USA Steel Construction


• Spring-Load Skid Plate / Block Assembly --- Great downward pressure, prevents spalling


• Arbor Size:  1" with Pin Hole --- Accepts any blade with a 1" arbor.

Diamond Products

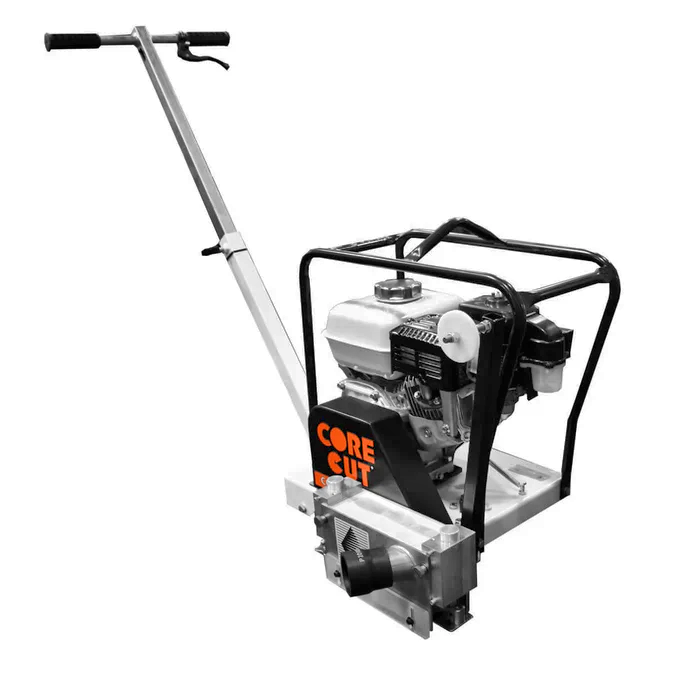

#CC150XL-EE Early Entry Saws

$4,069.00

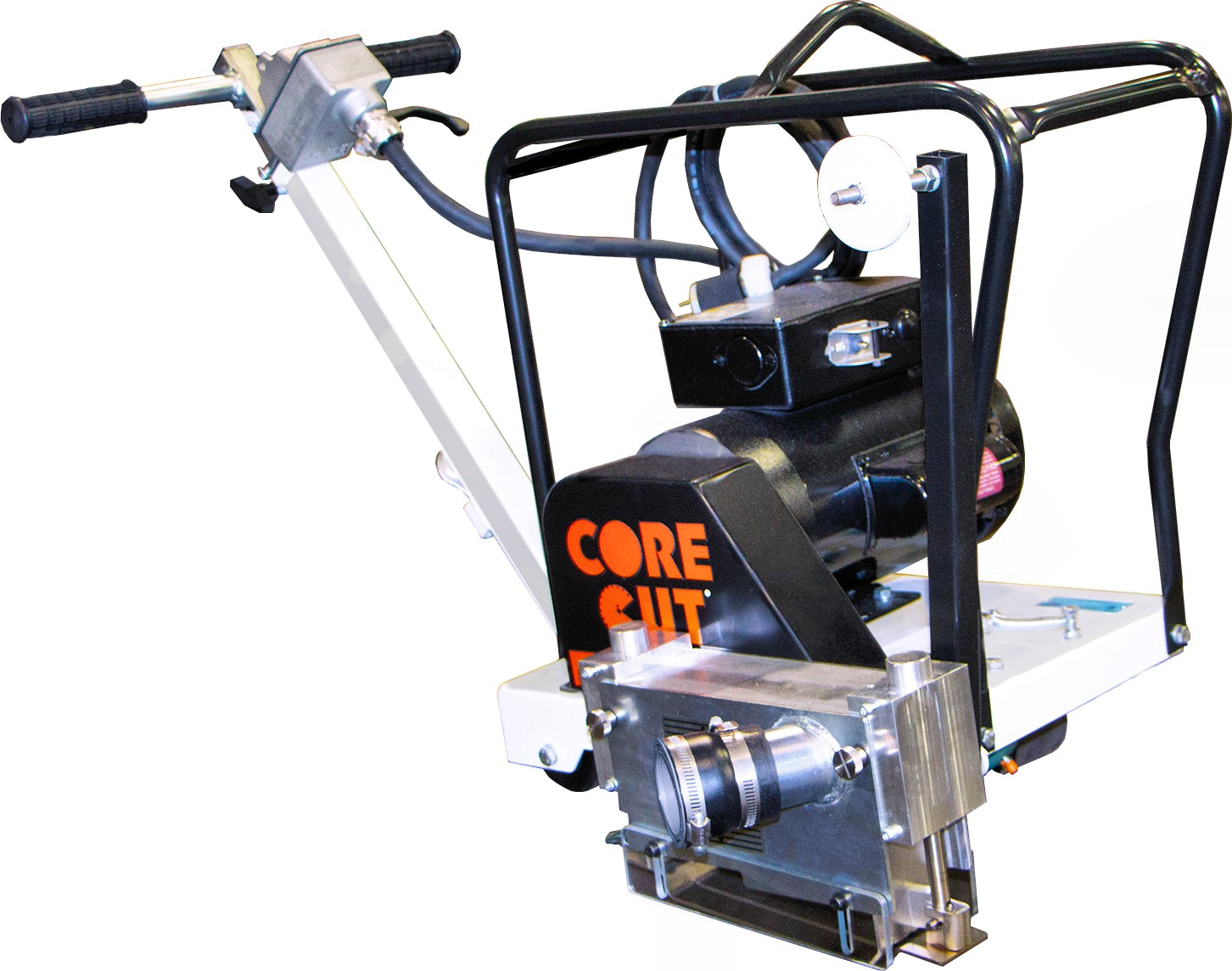

---  Electric Baldor 2.5 HP, 120 lbs, CC150XL-EE

$3,449.00

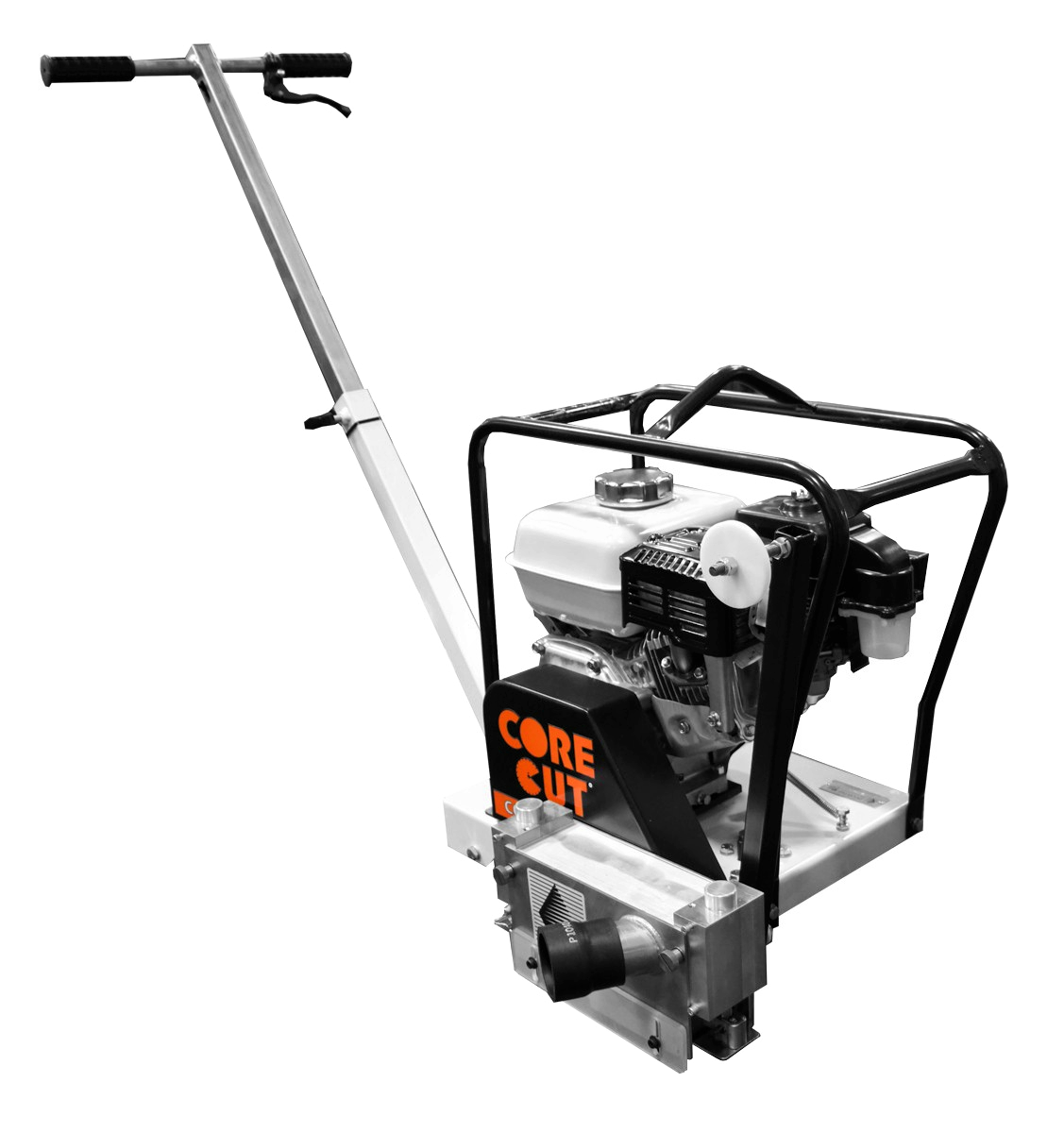

---  Gasoline Honda GX160, 4.8 HP, 100 lbs. CC150HXL-EE6

$3,229.00
---  Gasoline Briggs Vanguard 6.5 HP, 105 lbs, CC150BVXL-EE6

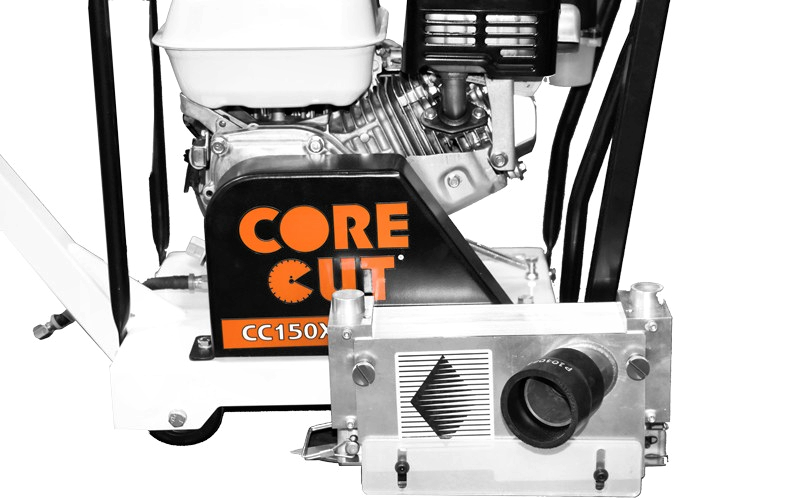

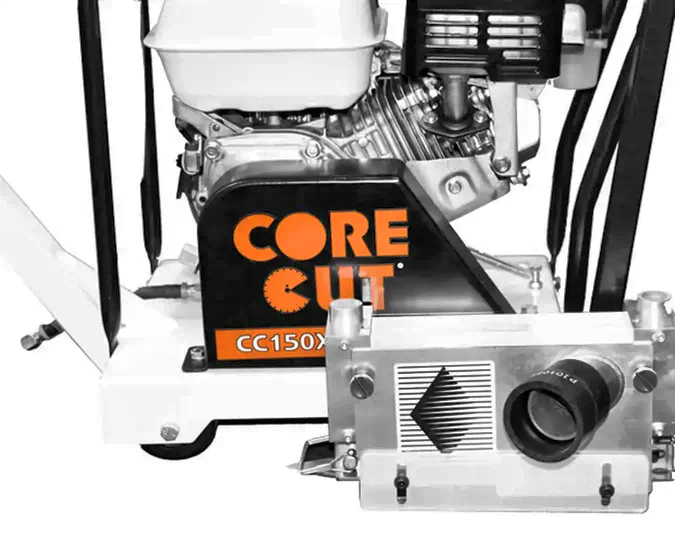

Guard / Skid Plate Assembly
---  In All First-Cut Early Entry Saws

• Spring-loaded skid-plate is kept to the floor to prevent aggregate from pulling out of the slab

• Built HD Strong.  No Plastic.

Saw Features

• Reliable skid plate system for green concrete

• Spring-loaded skid plate that stays down on the floor to help prevent spalling

• HD design but light weight - for two people to lift

• Lifting hook for easy transport

• Up-cut blade to keep debris from going back into the cut

• Fully adjustable handle bars for operator comfort

• Five wheels under the frame for increased stability

• Cyclone air filter for increased air flow

• Depth-of-Cut / Blade Engagement - smooth operating linkage, easy adjustments in seconds

• Single ribbed belt drive

• Includes vacuum attachment guard plate.

Specifications

• Blade Size:  6.5"

• Arbor:  1" with single drive pin

• Blade Depth Control:  mechanical

• Max Depth of Cut:  1-1/2" with 6.5" blade

• Dimensions:  16.94" (w) x 21.80" (h) x 32.92" (l)
